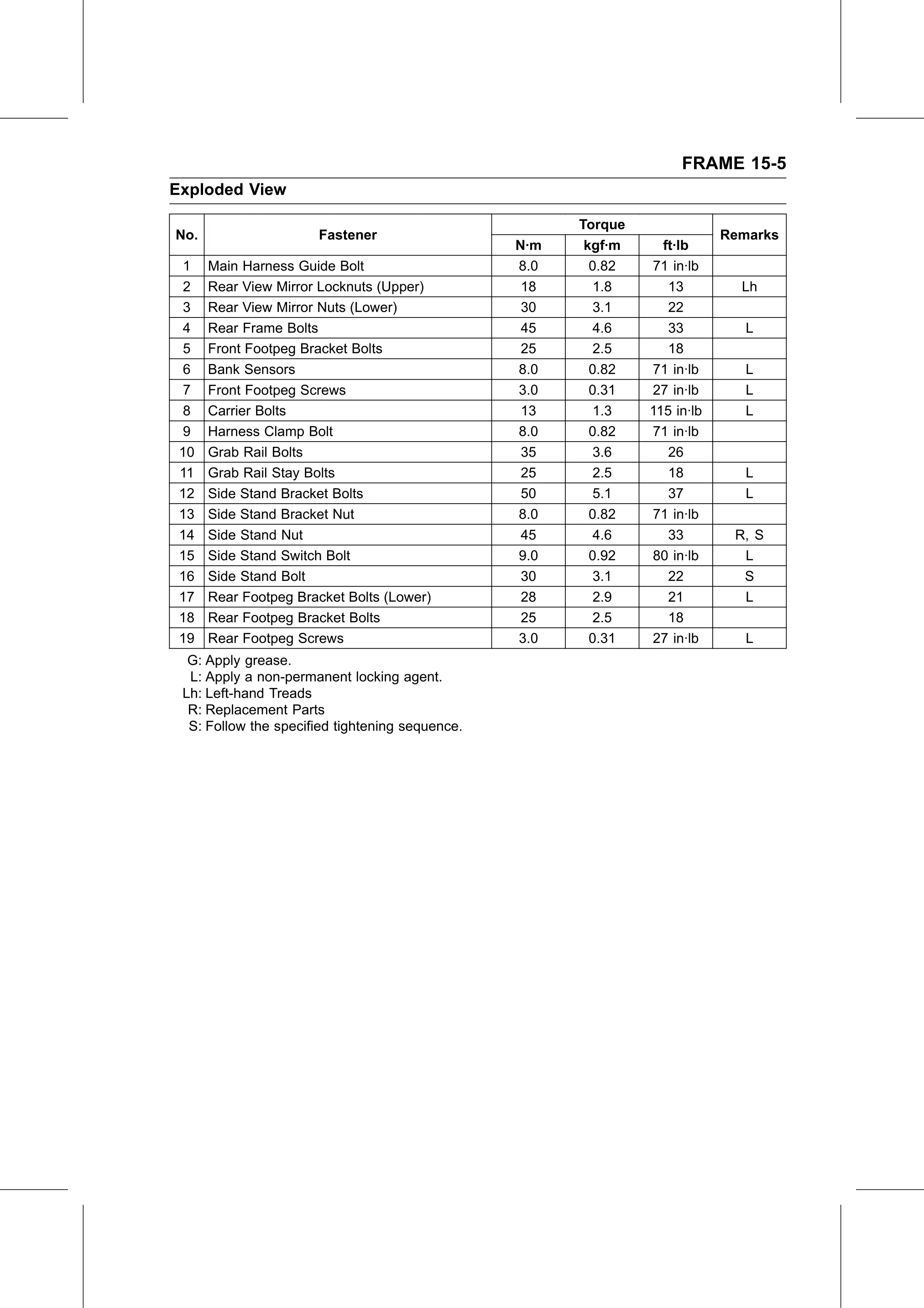

FRAME 15-5
Exploded View
Torque
No. Fastener Remarks
N·m kgf·m ft·lb
1 Main Harness Guide Bolt 8.0 0.82 71 in·lb
2 Rear View Mirror Locknuts (Upper) 18 1.8 13 Lh
3 Rear View Mirror Nuts (Lower) 30 3.1 22
4 Rear Frame Bolts 45 4.6 33 L
5 Front Footpeg Bracket Bolts 25 2.5 18
6 Bank Sensors 8.0 0.82 71 in·lb L
7 Front Footpeg Screws 3.0 0.31 27 in·lb L
8 Carrier Bolts 13 1.3 115 in·lb L
9 Harness Clamp Bolt 8.0 0.82 71 in·lb
10 Grab Rail Bolts 35 3.6 26
11 Grab Rail Stay Bolts 25 2.5 18 L
12 Side Stand Bracket Bolts 50 5.1 37 L
13 Side Stand Bracket Nut 8.0 0.82 71 in·lb
14 Side Stand Nut 45 4.6 33 R, S
15 Side Stand Switch Bolt 9.0 0.92 80 in·lb L
16 Side Stand Bolt 30 3.1 22 S
17 Rear Footpeg Bracket Bolts (Lower) 28 2.9 21 L
18 Rear Footpeg Bracket Bolts 25 2.5 18
19 Rear Footpeg Screws 3.0 0.31 27 in·lb L
G: Apply grease.
L: Apply a non-permanent locking agent.
Lh: Left-hand Treads
R: Replacement Parts
S: Follow the specified tightening sequence.
