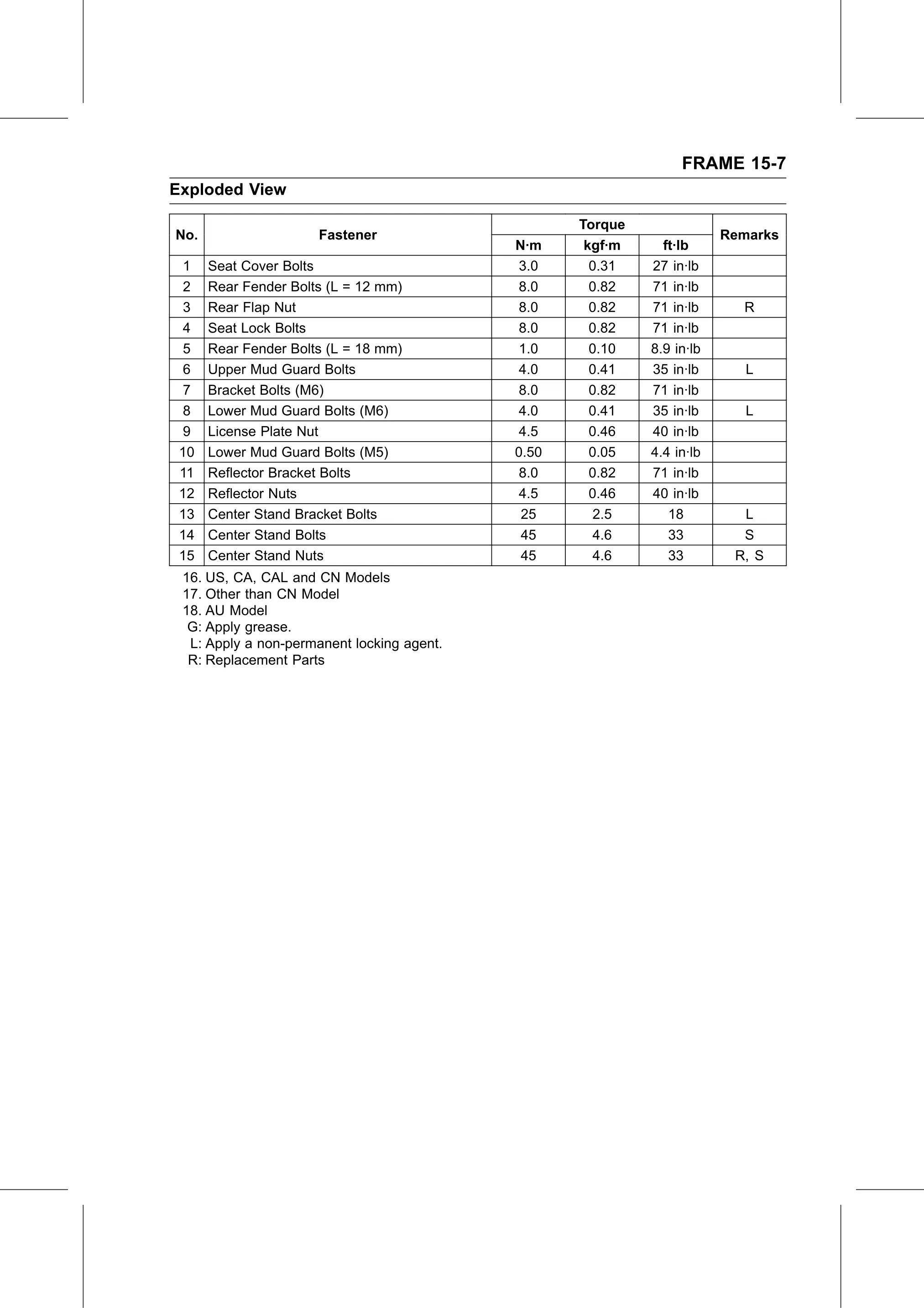

FRAME 15-7
Exploded View

                                                   Torque
No.                   Fastener                                          Remarks
                                            N·m     kgf·m     ft·lb
  1   Seat Cover Bolts                       3.0     0.31   27 in·lb
  2   Rear Fender Bolts (L = 12 mm)          8.0     0.82   71 in·lb
  3   Rear Flap Nut                          8.0     0.82   71 in·lb      R
  4   Seat Lock Bolts                        8.0     0.82   71 in·lb
  5   Rear Fender Bolts (L = 18 mm)          1.0     0.10   8.9 in·lb
  6   Upper Mud Guard Bolts                  4.0     0.41   35 in·lb       L
  7   Bracket Bolts (M6)                     8.0     0.82   71 in·lb
  8   Lower Mud Guard Bolts (M6)             4.0     0.41   35 in·lb       L
  9   License Plate Nut                      4.5     0.46   40 in·lb
 10   Lower Mud Guard Bolts (M5)            0.50     0.05   4.4 in·lb
 11   Reflector Bracket Bolts                8.0     0.82   71 in·lb
 12   Reflector Nuts                         4.5     0.46   40 in·lb
 13   Center Stand Bracket Bolts             25       2.5      18         L
 14   Center Stand Bolts                     45       4.6      33         S
 15   Center Stand Nuts                      45       4.6      33        R, S
 16. US, CA, CAL and CN Models
 17. Other than CN Model
 18. AU Model
  G: Apply grease.
  L: Apply a non-permanent locking agent.
  R: Replacement Parts
