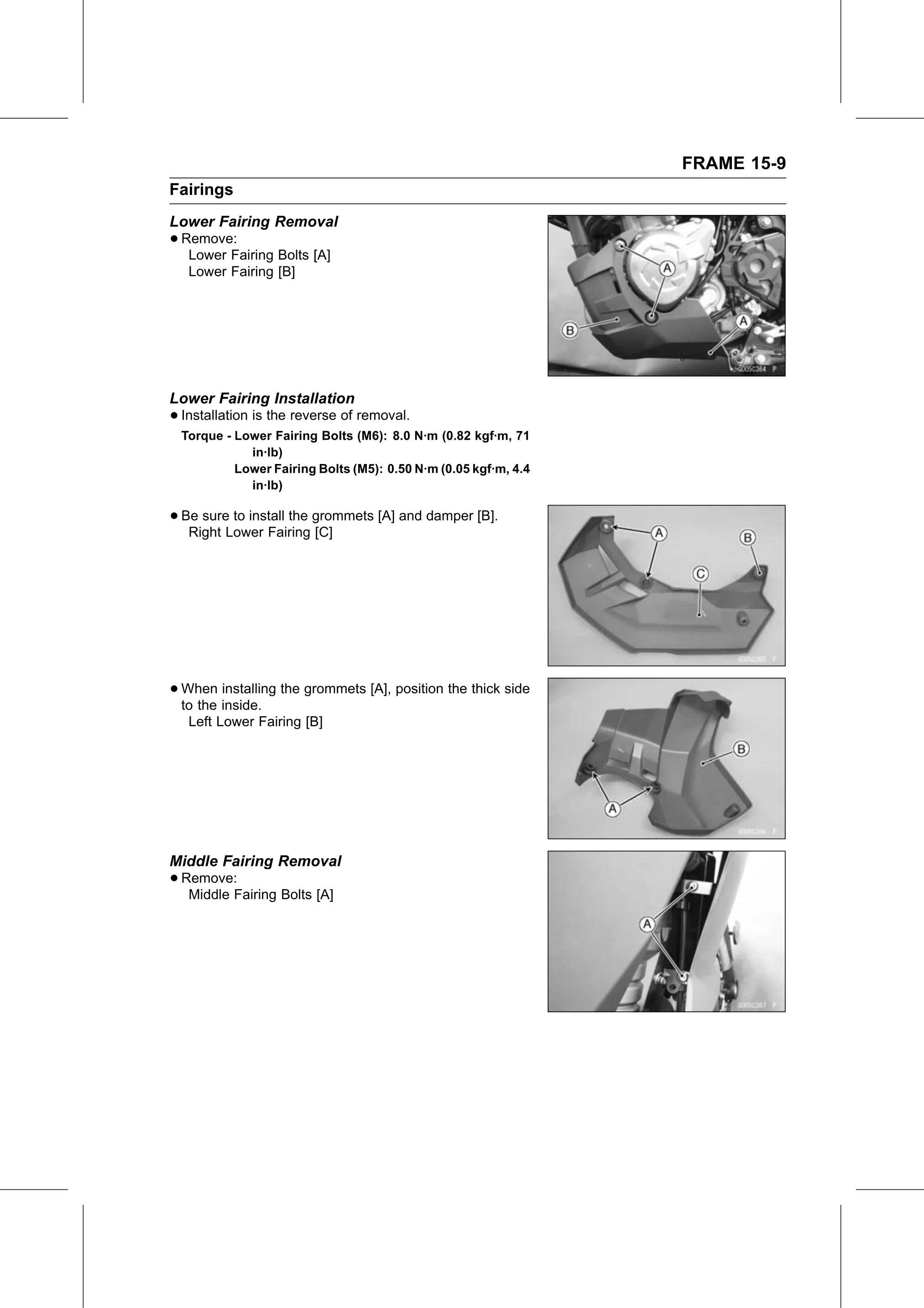

FRAME 15-9
Fairings
Lower Fairing Removal
• Remove:
   Lower Fairing Bolts [A]
   Lower Fairing [B]

Lower Fairing Installation
• Installation is the reverse of removal.
  Torque - Lower Fairing Bolts (M6): 8.0 N·m (0.82 kgf·m, 71
             in·lb)
           Lower Fairing Bolts (M5): 0.50 N·m (0.05 kgf·m, 4.4
             in·lb)

• BeRight
      sure to install the grommets [A] and damper [B].
          Lower Fairing [C]

• When   installing the grommets [A], position the thick side
  to the inside.
   Left Lower Fairing [B]

Middle Fairing Removal
• Remove:
   Middle Fairing Bolts [A]
