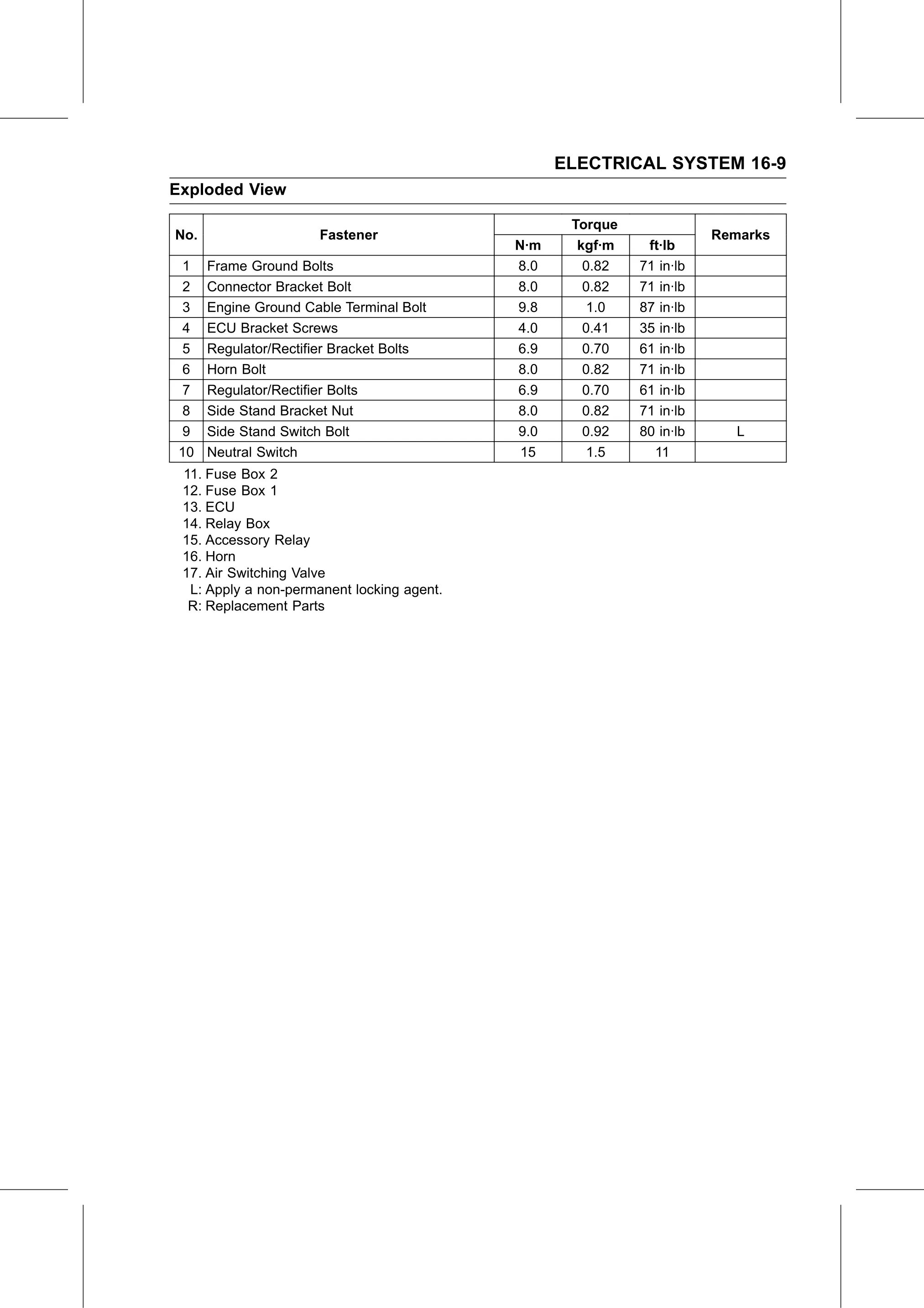

ELECTRICAL SYSTEM 16-9
Exploded View
Torque
No. Fastener Remarks
N·m kgf·m ft·lb
1 Frame Ground Bolts 8.0 0.82 71 in·lb
2 Connector Bracket Bolt 8.0 0.82 71 in·lb
3 Engine Ground Cable Terminal Bolt 9.8 1.0 87 in·lb
4 ECU Bracket Screws 4.0 0.41 35 in·lb
5 Regulator/Rectifier Bracket Bolts 6.9 0.70 61 in·lb
6 Horn Bolt 8.0 0.82 71 in·lb
7 Regulator/Rectifier Bolts 6.9 0.70 61 in·lb
8 Side Stand Bracket Nut 8.0 0.82 71 in·lb
9 Side Stand Switch Bolt 9.0 0.92 80 in·lb L
10 Neutral Switch 15 1.5 11
11. Fuse Box 2
12. Fuse Box 1
13. ECU
14. Relay Box
15. Accessory Relay
16. Horn
17. Air Switching Valve
L: Apply a non-permanent locking agent.
R: Replacement Parts
