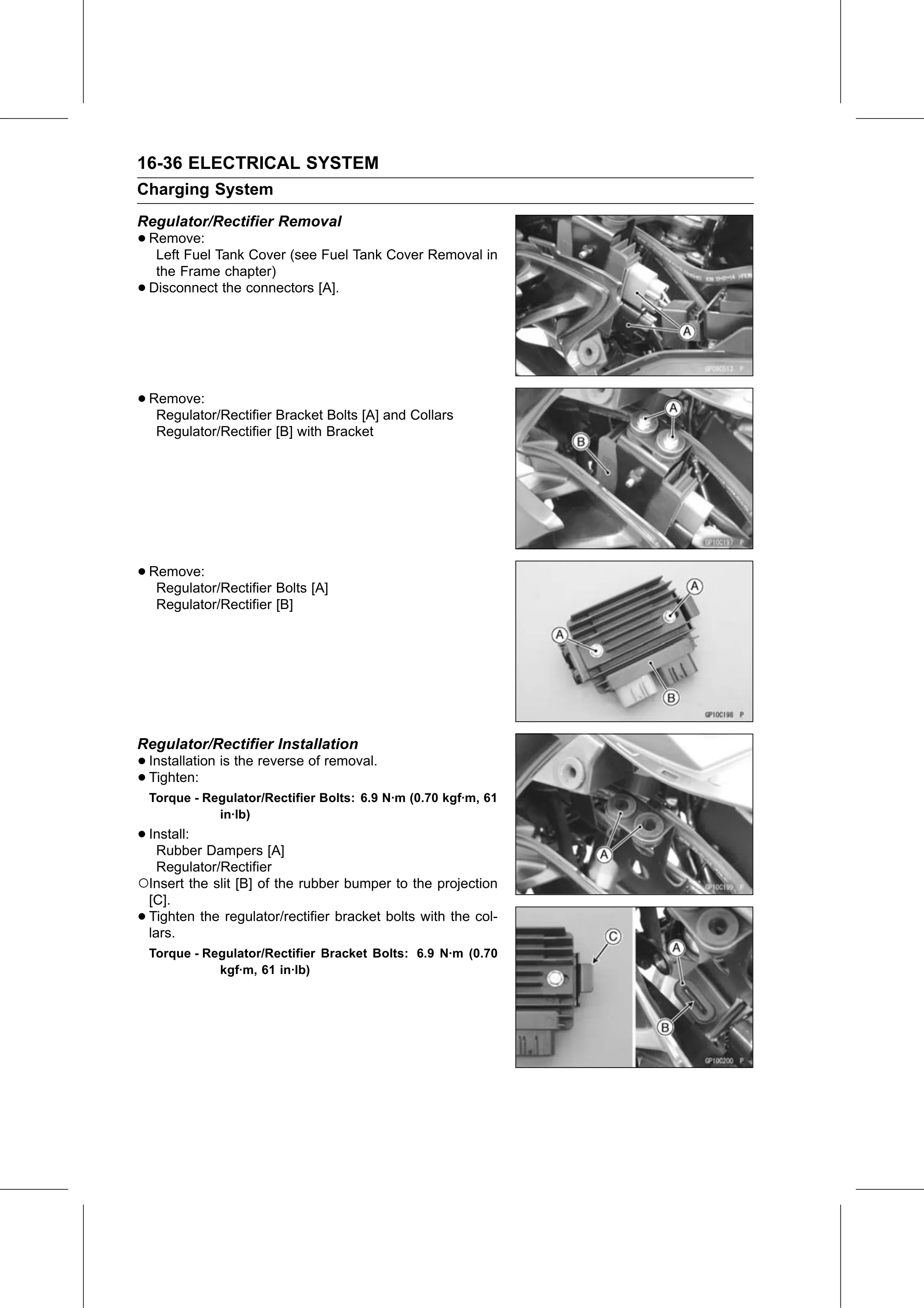

16-36 ELECTRICAL SYSTEM
Charging System
Regulator/Rectifier Removal
• Remove:
   Left Fuel Tank Cover (see Fuel Tank Cover Removal in
     the Frame chapter)
•   Disconnect the connectors [A].

• Remove:
   Regulator/Rectifier Bracket Bolts [A] and Collars
     Regulator/Rectifier [B] with Bracket

• Remove:
   Regulator/Rectifier Bolts [A]
     Regulator/Rectifier [B]

Regulator/Rectifier Installation
• Installation is the reverse of removal.
• Tighten:
    Torque - Regulator/Rectifier Bolts: 6.9 N·m (0.70 kgf·m, 61
               in·lb)
• Install:
   Rubber Dampers [A]
   Regulator/Rectifier
○Insert the slit [B] of the rubber bumper to the projection
 [C].
•Tighten the regulator/rectifier bracket bolts with the col-
 lars.
    Torque - Regulator/Rectifier Bracket Bolts: 6.9 N·m (0.70
               kgf·m, 61 in·lb)
