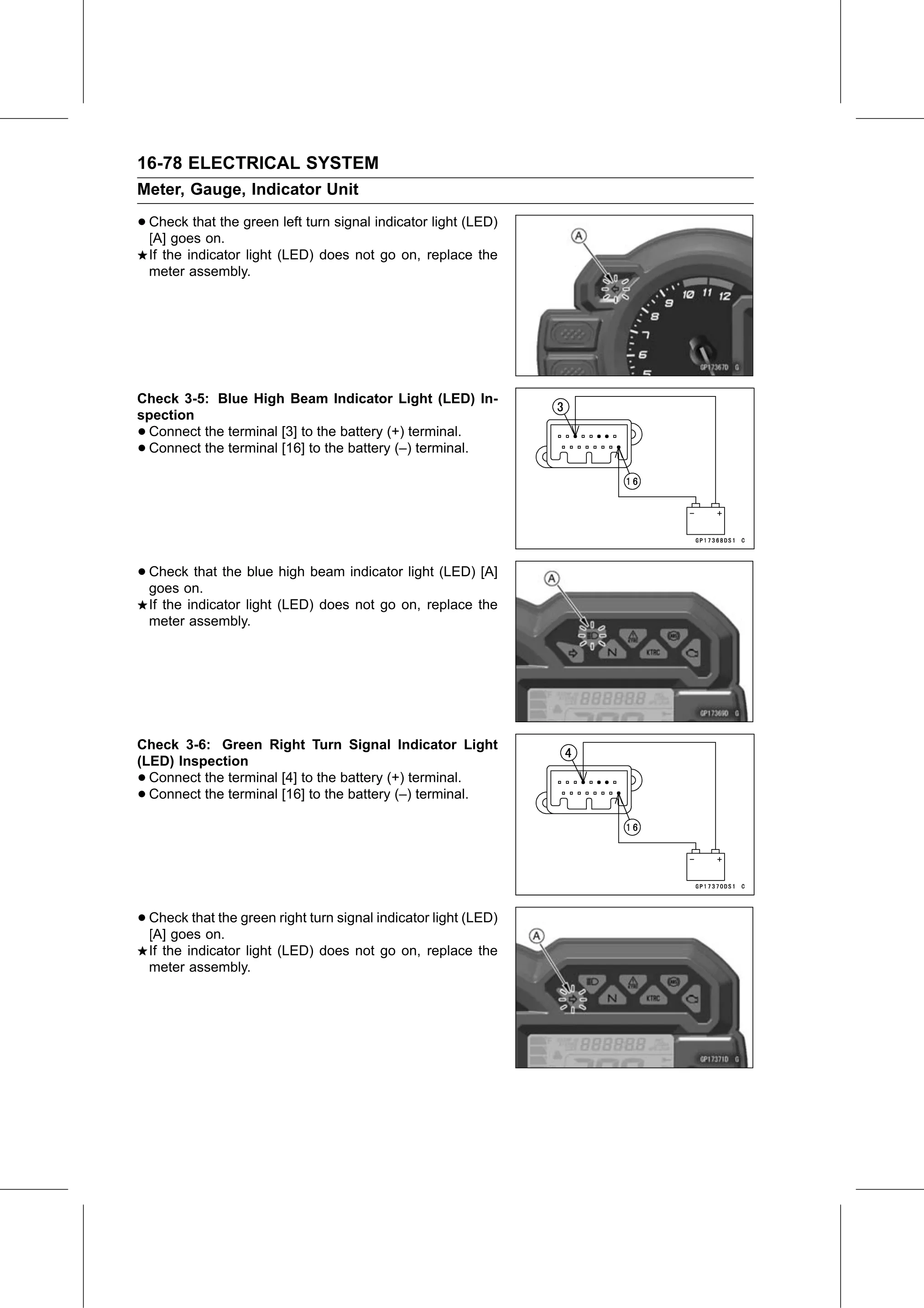

16-78 ELECTRICAL SYSTEM
Meter, Gauge, Indicator Unit

• Check  that the green left turn signal indicator light (LED)
  [A] goes on.
    If the indicator light (LED) does not go on, replace the
    meter assembly.

Check 3-5: Blue High Beam Indicator Light (LED) In-
spection
•Connect the terminal [3] to the battery (+) terminal.
•Connect the terminal [16] to the battery (–) terminal.

• Check that the blue high beam indicator light (LED) [A]
  goes on.
    If the indicator light (LED) does not go on, replace the
    meter assembly.

Check 3-6: Green Right Turn Signal Indicator Light
(LED) Inspection
• Connect the terminal [4] to the battery (+) terminal.
• Connect the terminal [16] to the battery (–) terminal.

• Check  that the green right turn signal indicator light (LED)
  [A] goes on.
    If the indicator light (LED) does not go on, replace the
    meter assembly.
