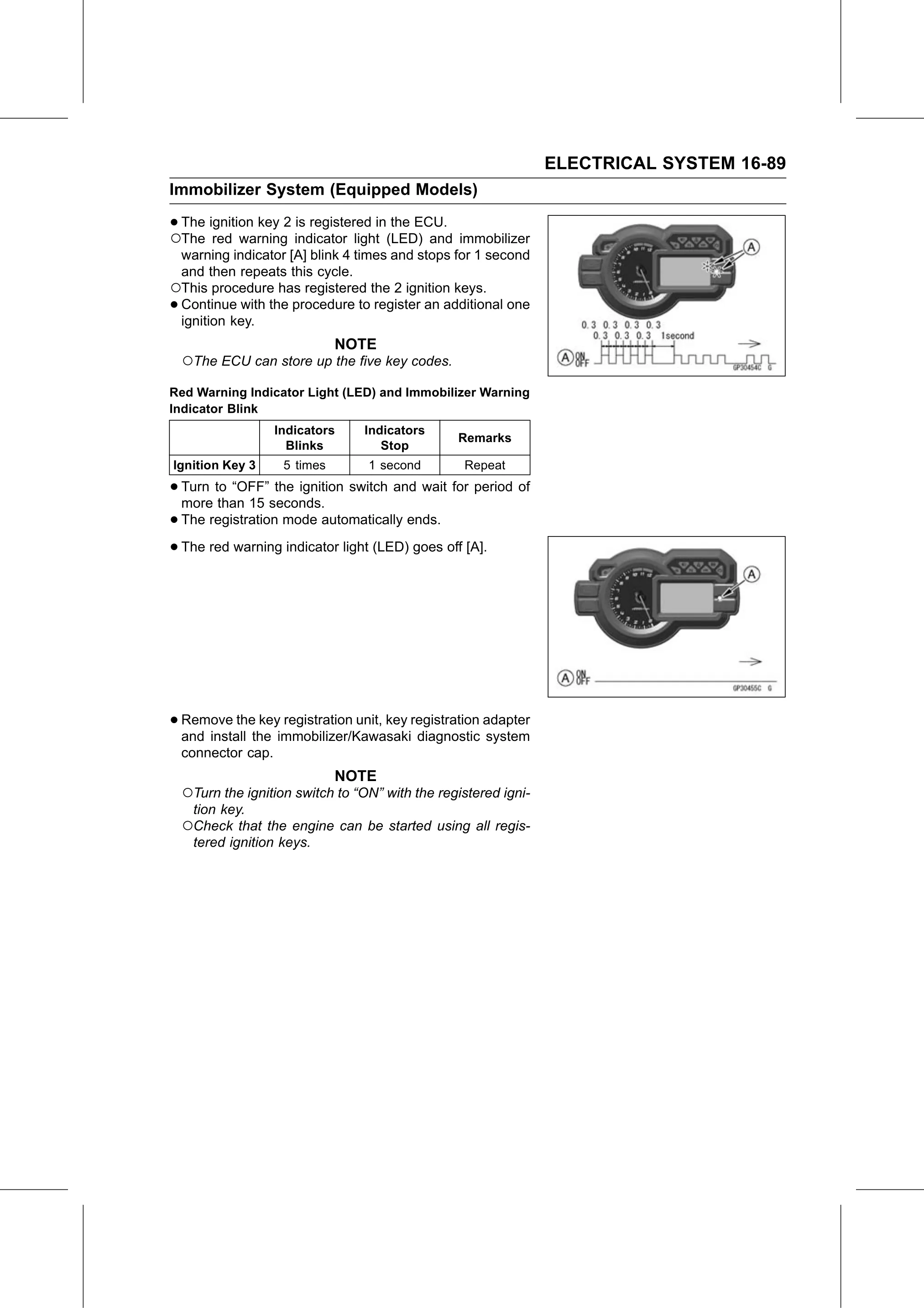

ELECTRICAL SYSTEM 16-89
Immobilizer System (Equipped Models)

•○The ignition key 2 is registered in the ECU.
  The red warning indicator light (LED) and immobilizer
 warning indicator [A] blink 4 times and stops for 1 second
 and then repeats this cycle.
○This procedure has registered the 2 ignition keys.
•Continue with the procedure to register an additional one
 ignition key.
                                NOTE
    ○The ECU can store up the five key codes.
Red Warning Indicator Light (LED) and Immobilizer Warning
Indicator Blink
                     Indicators   Indicators
                                                  Remarks
                       Blinks        Stop
Ignition Key 3        5 times      1 second        Repeat

• Turn to “OFF” the ignition switch and wait for period of
  more than 15 seconds.
• The registration mode automatically ends.
• The red warning indicator light (LED) goes off [A].

• Remove   the key registration unit, key registration adapter
  and install the immobilizer/Kawasaki diagnostic system
    connector cap.
                                NOTE
    ○Turn the ignition switch to “ON” with the registered igni-
     tion key.
    ○Check that the engine can be started using all regis-
     tered ignition keys.
