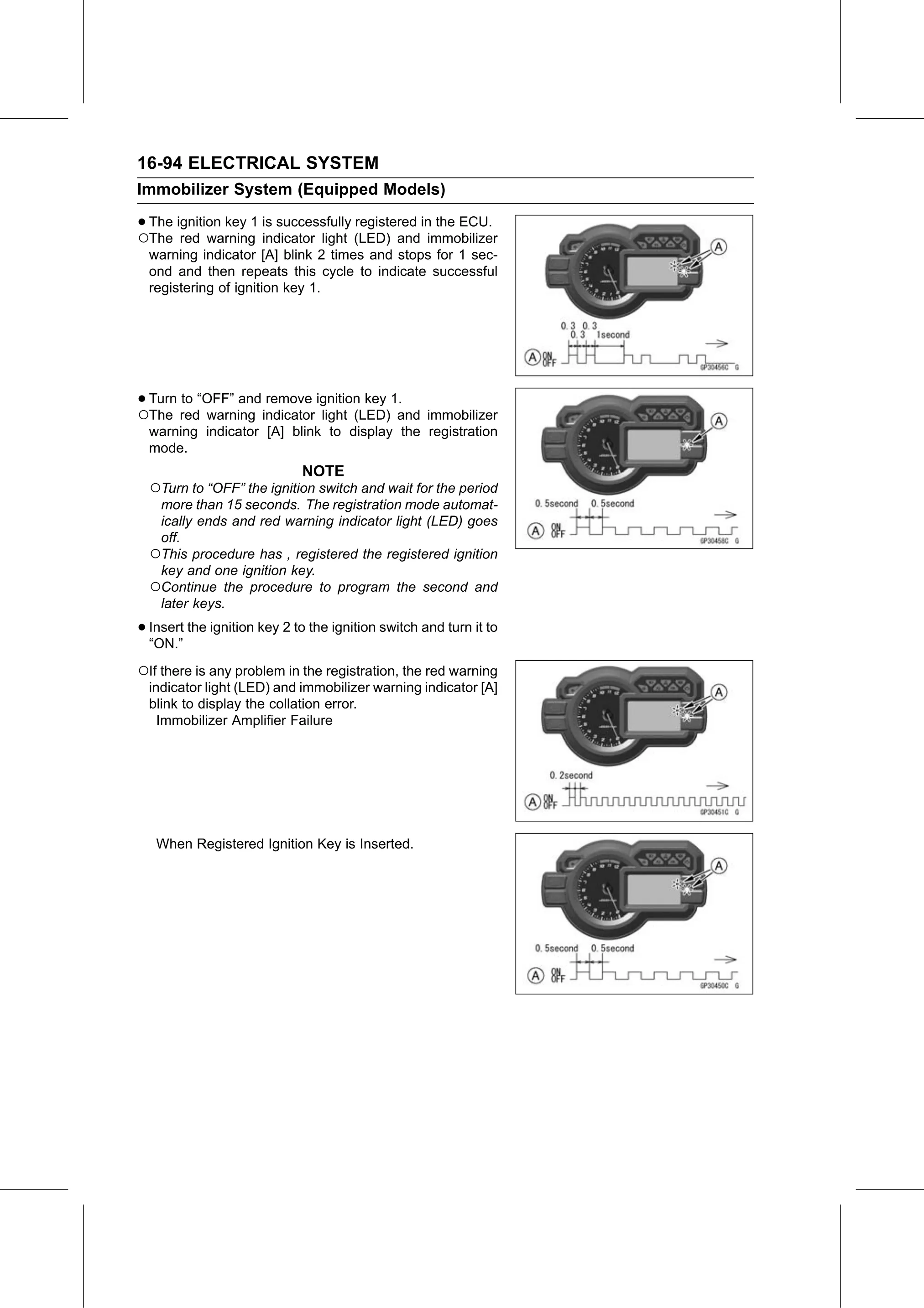

16-94 ELECTRICAL SYSTEM
Immobilizer System (Equipped Models)

•○The ignition key 1 is successfully registered in the ECU.
  The red warning indicator light (LED) and immobilizer
  warning indicator [A] blink 2 times and stops for 1 sec-
  ond and then repeats this cycle to indicate successful
  registering of ignition key 1.

•○Turn to “OFF” and remove ignition key 1.
  The red warning indicator light (LED) and immobilizer
  warning indicator [A] blink to display the registration
  mode.
                             NOTE
  ○Turn to “OFF” the ignition switch and wait for the period
   more than 15 seconds. The registration mode automat-
   ically ends and red warning indicator light (LED) goes
   off.
  ○This procedure has , registered the registered ignition
   key and one ignition key.
  ○Continue the procedure to program the second and
   later keys.

• Insert
  “ON.”
         the ignition key 2 to the ignition switch and turn it to

○If there is any problem in the registration, the red warning
  indicator light (LED) and immobilizer warning indicator [A]
  blink to display the collation error.
    Immobilizer Amplifier Failure

   When Registered Ignition Key is Inserted.
