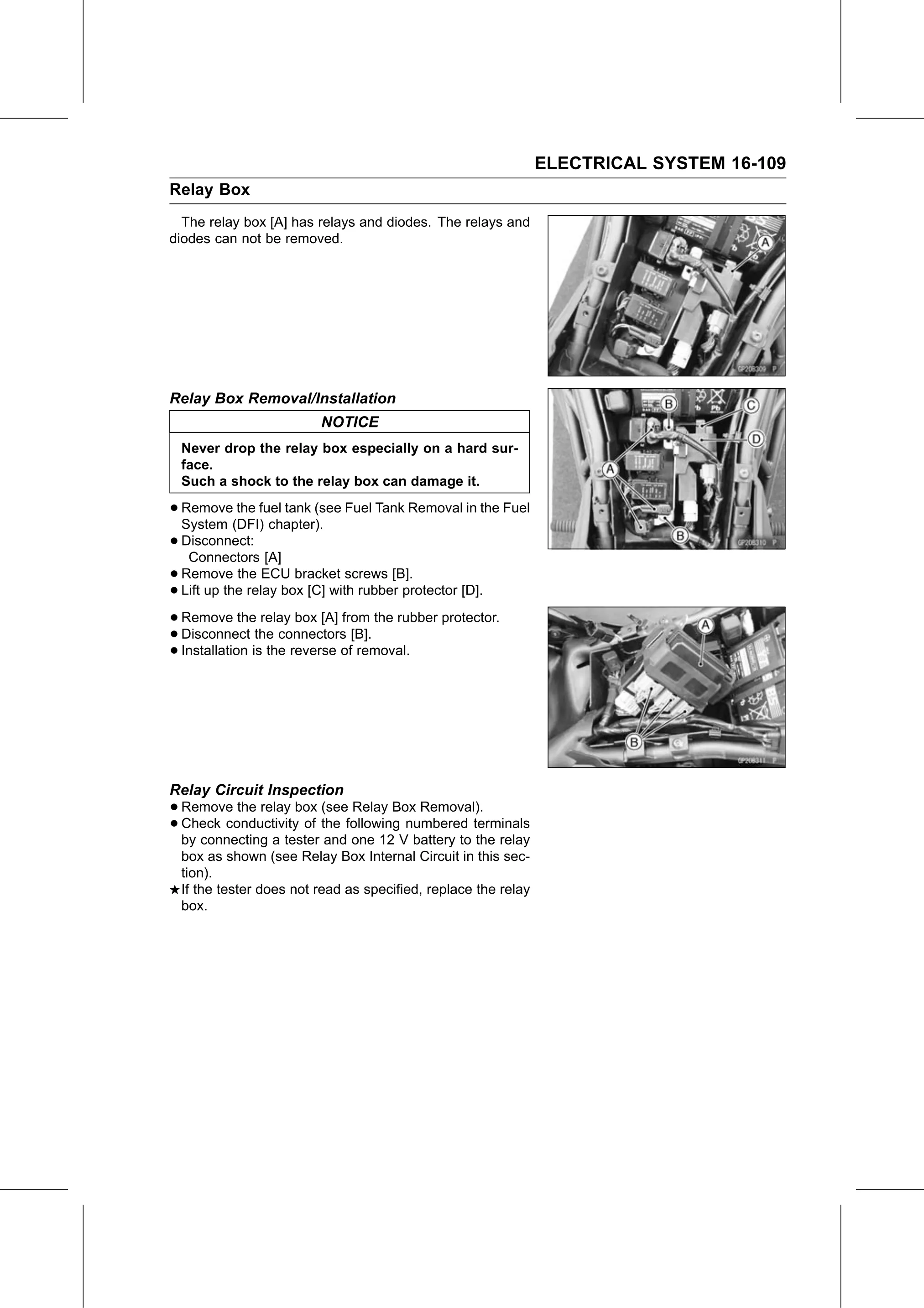

ELECTRICAL SYSTEM 16-109
Relay Box
  The relay box [A] has relays and diodes. The relays and
diodes can not be removed.

Relay Box Removal/Installation
                         NOTICE
  Never drop the relay box especially on a hard sur-
  face.
  Such a shock to the relay box can damage it.

• Remove     the fuel tank (see Fuel Tank Removal in the Fuel
  System (DFI) chapter).
• Disconnect:
   Connectors [A]
• Remove     the ECU bracket screws [B].
• Lift up the  relay box [C] with rubber protector [D].

• Remove     the relay box [A] from the rubber protector.
• Installation isthetheconnectors
  Disconnect                       [B].
•                        reverse of removal.

Relay Circuit Inspection
• Remove  the relay box (see Relay Box Removal).
• by connecting a tester
  Check conductivity of the following numbered terminals
                         and one 12 V battery to the relay
  box as shown (see Relay Box Internal Circuit in this sec-
  tion).
  If the tester does not read as specified, replace the relay
  box.
