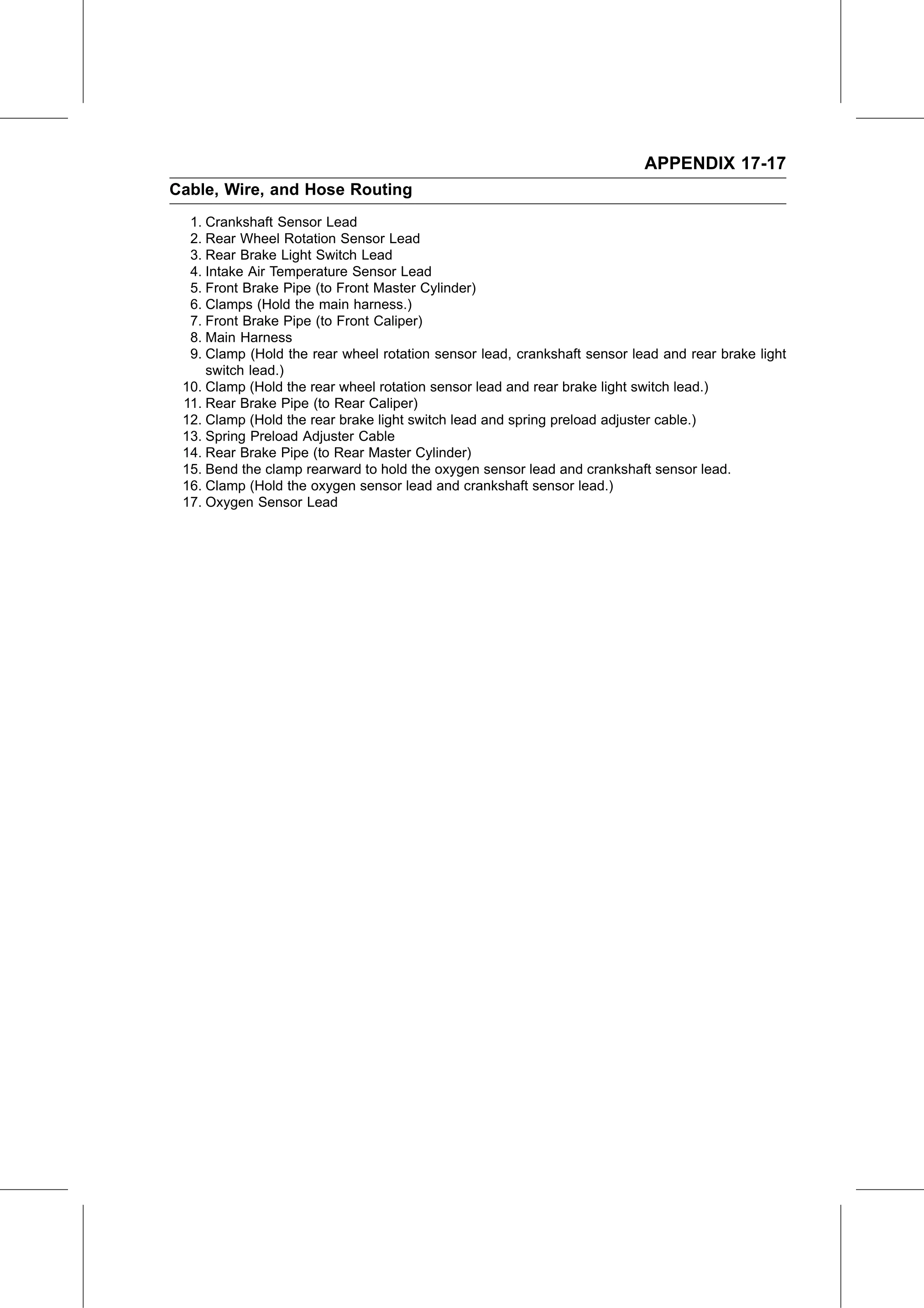

APPENDIX 17-17
Cable, Wire, and Hose Routing
  1. Crankshaft Sensor Lead
  2. Rear Wheel Rotation Sensor Lead
  3. Rear Brake Light Switch Lead
  4. Intake Air Temperature Sensor Lead
  5. Front Brake Pipe (to Front Master Cylinder)
  6. Clamps (Hold the main harness.)
  7. Front Brake Pipe (to Front Caliper)
  8. Main Harness
  9. Clamp (Hold the rear wheel rotation sensor lead, crankshaft sensor lead and rear brake light
     switch lead.)
 10. Clamp (Hold the rear wheel rotation sensor lead and rear brake light switch lead.)
 11. Rear Brake Pipe (to Rear Caliper)
 12. Clamp (Hold the rear brake light switch lead and spring preload adjuster cable.)
 13. Spring Preload Adjuster Cable
 14. Rear Brake Pipe (to Rear Master Cylinder)
 15. Bend the clamp rearward to hold the oxygen sensor lead and crankshaft sensor lead.
 16. Clamp (Hold the oxygen sensor lead and crankshaft sensor lead.)
 17. Oxygen Sensor Lead
