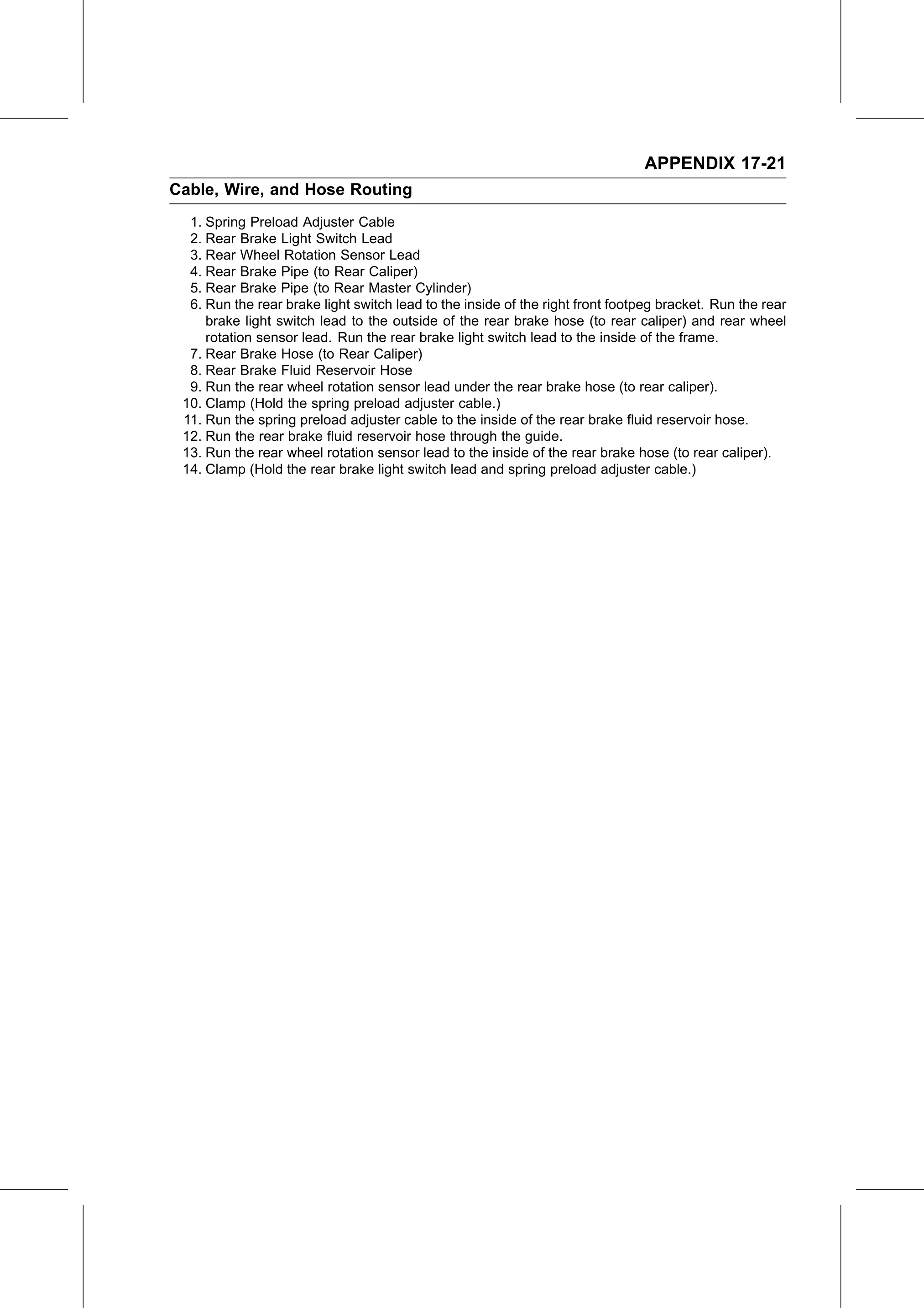

APPENDIX 17-21
Cable, Wire, and Hose Routing
  1. Spring Preload Adjuster Cable
  2. Rear Brake Light Switch Lead
  3. Rear Wheel Rotation Sensor Lead
  4. Rear Brake Pipe (to Rear Caliper)
  5. Rear Brake Pipe (to Rear Master Cylinder)
  6. Run the rear brake light switch lead to the inside of the right front footpeg bracket. Run the rear
     brake light switch lead to the outside of the rear brake hose (to rear caliper) and rear wheel
     rotation sensor lead. Run the rear brake light switch lead to the inside of the frame.
  7. Rear Brake Hose (to Rear Caliper)
  8. Rear Brake Fluid Reservoir Hose
  9. Run the rear wheel rotation sensor lead under the rear brake hose (to rear caliper).
 10. Clamp (Hold the spring preload adjuster cable.)
 11. Run the spring preload adjuster cable to the inside of the rear brake fluid reservoir hose.
 12. Run the rear brake fluid reservoir hose through the guide.
 13. Run the rear wheel rotation sensor lead to the inside of the rear brake hose (to rear caliper).
 14. Clamp (Hold the rear brake light switch lead and spring preload adjuster cable.)
