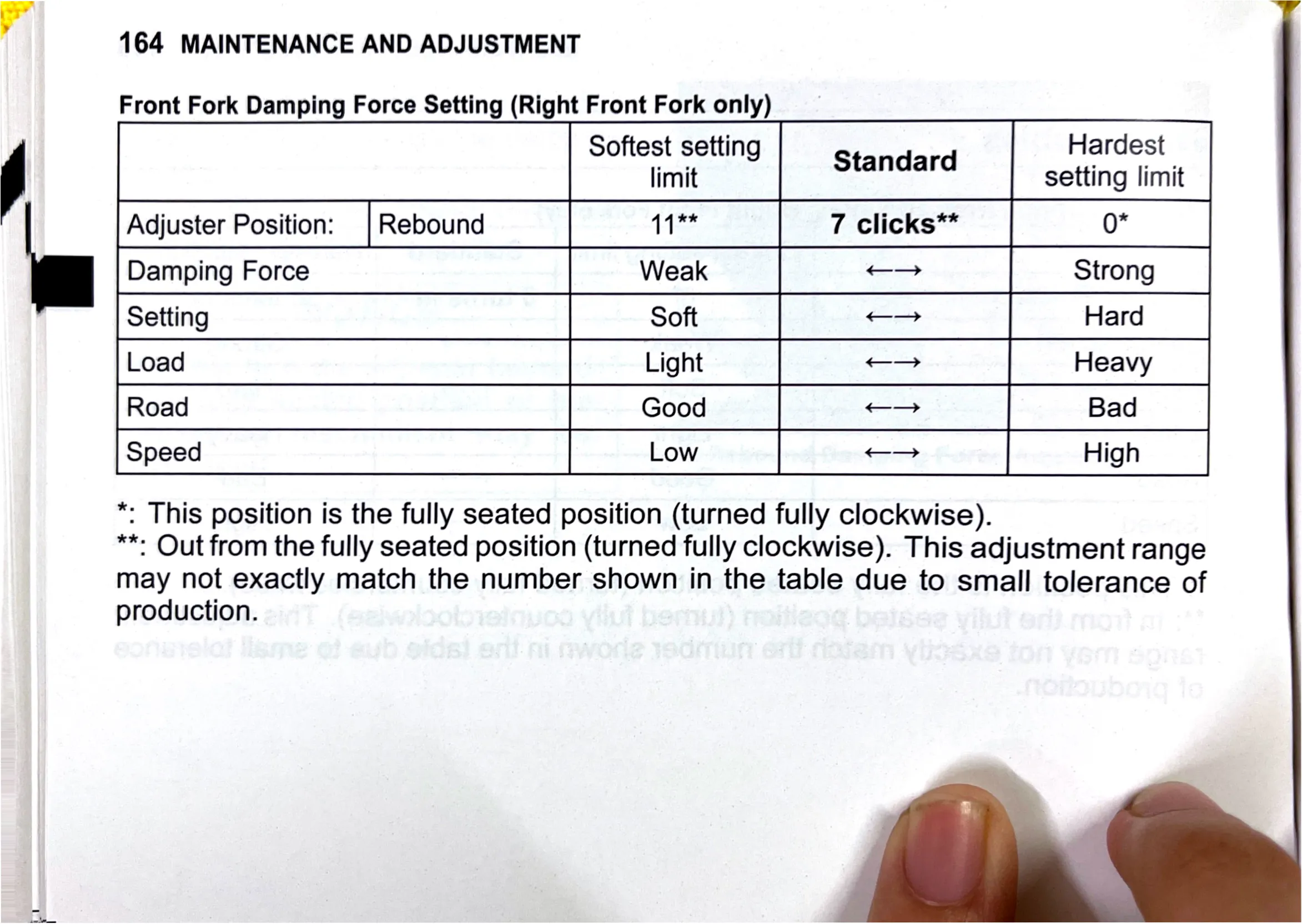

164 MAINTENANCE AND ADJUSTMENT

Front Fork Damping Force Setting (Right Front Fork only)

Adjuster Position: | Rebound 11** 7 clicks** 0*
Damping Force Weak —— Strong
Setting Soft — Hard
Load Light -_— Heavy
Road Good —> Bad
Speed Low _—— High

*: This position is the fully seated position (turned fully clockwise).

**: Out from the fully seated position (turned fully clockwise). This adjustment range
may not exactly match the number shown in the table due to small tolerance of
production.
