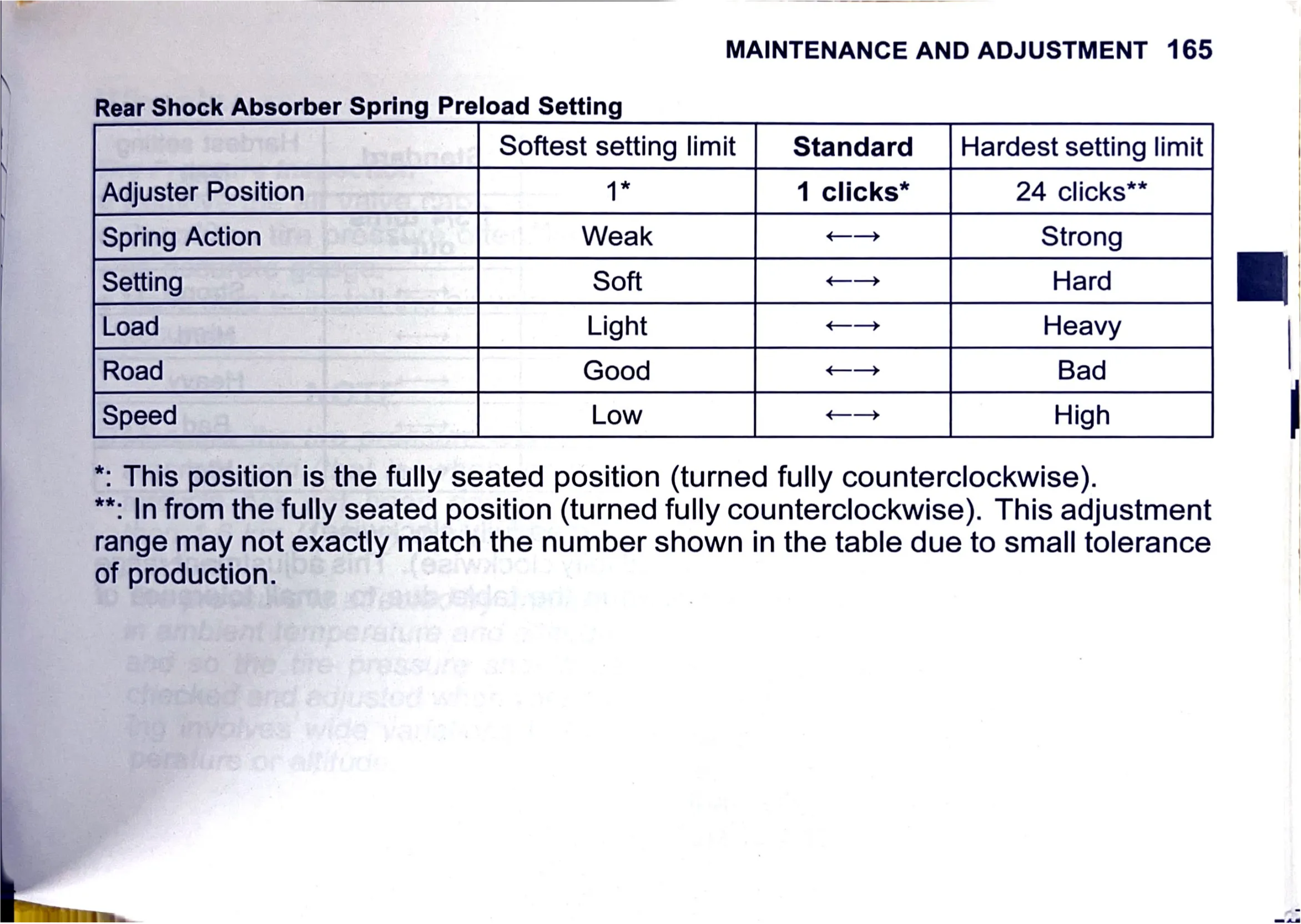

MAINTENANCE AND ADJUSTMENT 165

Rear Shock Absorber Spring Preload Setting

Softest setting limit Standard | Hardest setting limit
Adjuster Position 1* 1 clicks* 24 clicks**
Spring Action Weak —— Strong
Setting Soft —— Hard
Load Light > Heavy
Road Good _— Bad
Speed Low —— High

*: This position is the fully seated position (turned fully counterclockwise).

**: In from the fully seated position (turned fully counterclockwise). This adjustment
range may not exactly match the number shown in the table due to small tolerance

of production.
