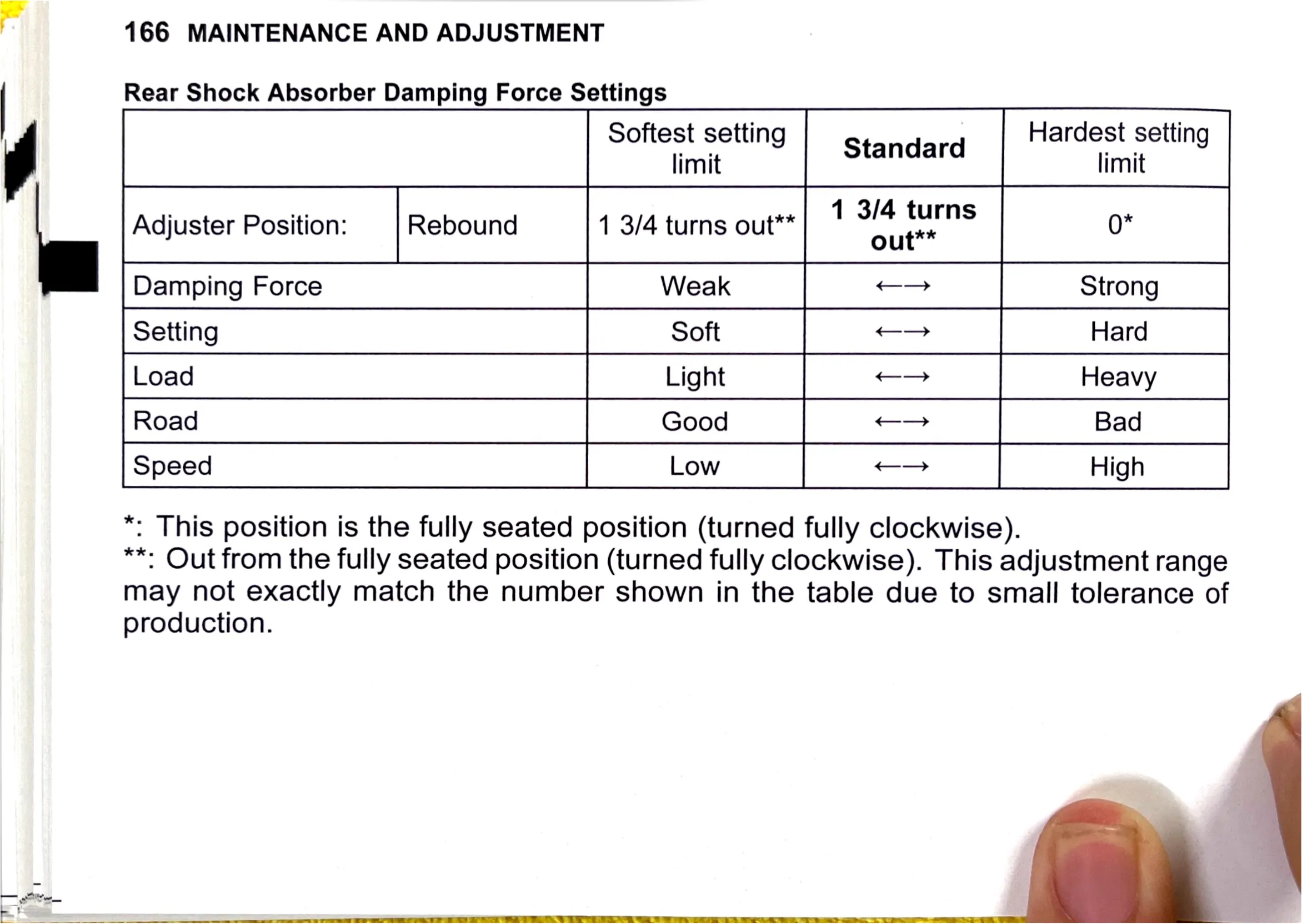

166 MAINTENANCE AND ADJUSTMENT

Rear Shock Absorber Damping Force Settings

Softest setting

Hardest setting

limit Standard limit
Adjuster Position: Rebound 1 3/4 turns out** 1 oes 0*
Damping Force Weak -—— Strong
Setting Soft <—— Hard
Load Light -_— Heavy
Road Good —— Bad
Speed Low <—— High

*: This position is the fully seated position (turned fully clockwise).

**: Out from the fully seated position (turned fully clockwise). This adjustment range
may not exactly match the number shown in the table due to small tolerance of

production.
