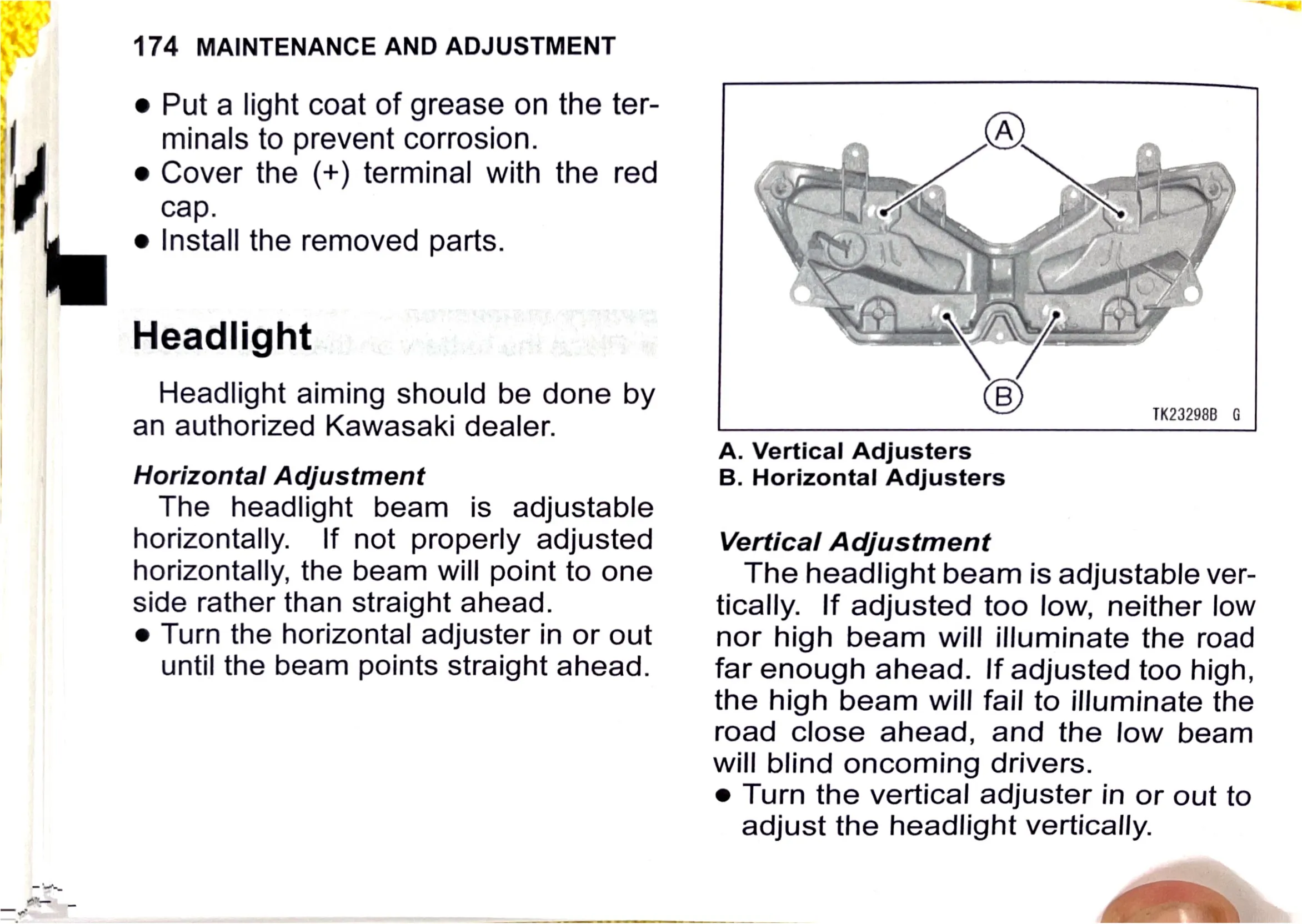

Owner's Manual — page 177 of 201 (printed page 174)

Text on this page

174 MAINTENANCE AND ADJUSTMENT

e Put a light coat of grease on the ter-
minals to prevent corrosion.

e Cover the (+) terminal with the red
Cap.

e Install the removed parts.

Headlight

Headlight aiming should be done by
an authorized Kawasaki dealer.

Horizontal Adjustment
The headlight beam is adjustable
horizontally. If not properly adjusted
horizontally, the beam will point to one
side rather than straight ahead.
e Turn the horizontal adjuster in or out
until the beam points straight ahead.

TK23298B  G

A. Vertical Adjusters
B. Horizontal Adjusters

Vertical Adjustment
The headlight beam is adjustable ver-
tically. If adjusted too low, neither low
nor high beam will illuminate the road
far enough ahead. If adjusted too high,
the high beam will fail to illuminate the
road close ahead, and the low beam
will blind oncoming drivers.
e Turn the vertical adjuster in or out to
adjust the headlight vertically.
