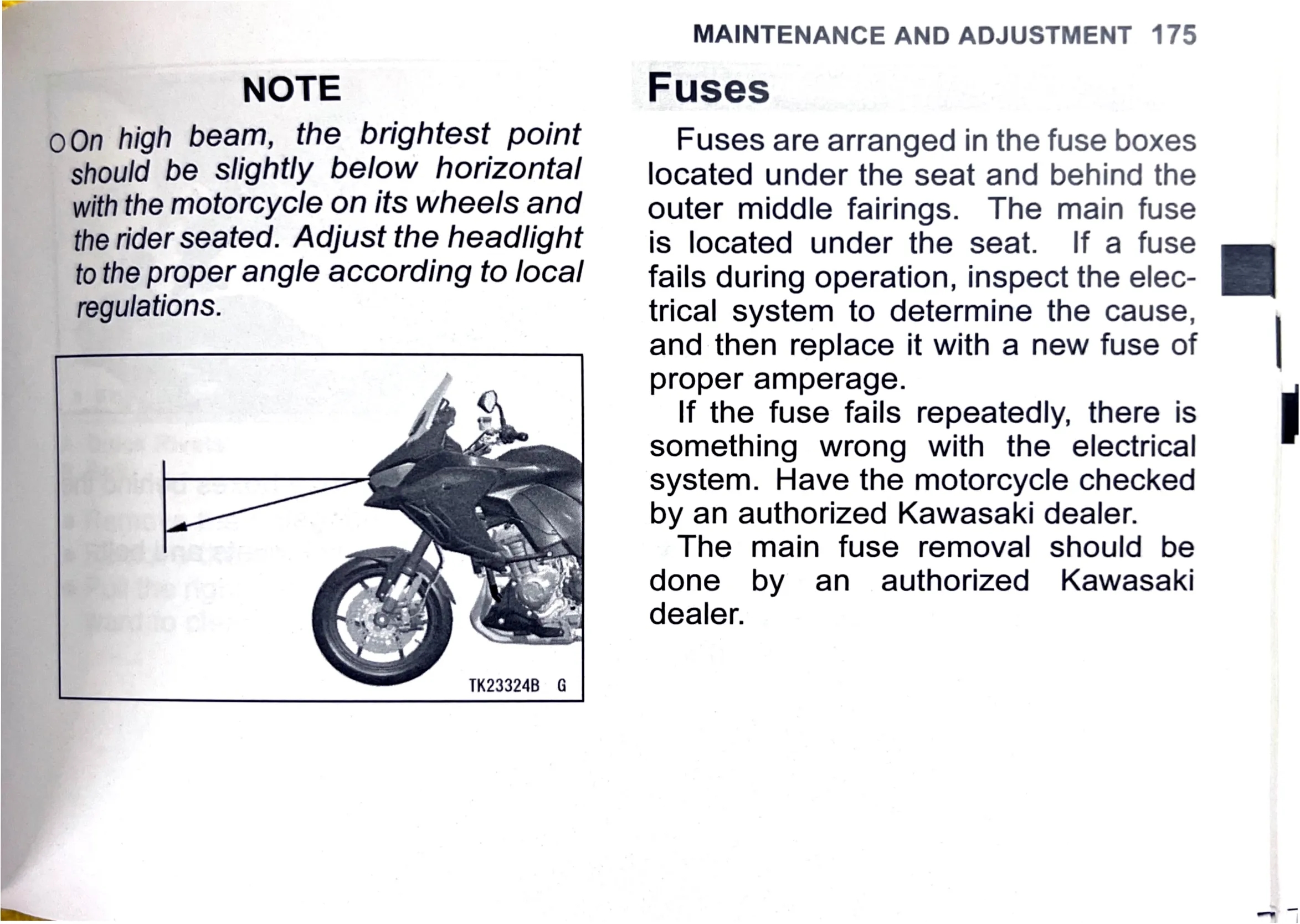

NOTE

0On high beam, the brightest point
should be slightly below horizontal
with the motorcycle on its wheels and
the rider seated. Adjust the headlight
to the proper angle according to local
regulations.

TK23324B G

MAINTENANCE AND ADJUSTMENT 175

Fuses

Fuses are arranged in the fuse boxes
located under the seat and behind the
outer middle fairings. The main fuse
is located under the seat. If a fuse
fails during operation, inspect the elec-
trical system to determine the cause,
and then replace it with a new fuse of
proper amperage.

If the fuse fails repeatedly, there is
something wrong with the electrical
system. Have the motorcycle checked
by an authorized Kawasaki dealer.

The main fuse removal should be
done by an authorized Kawasaki
dealer.
