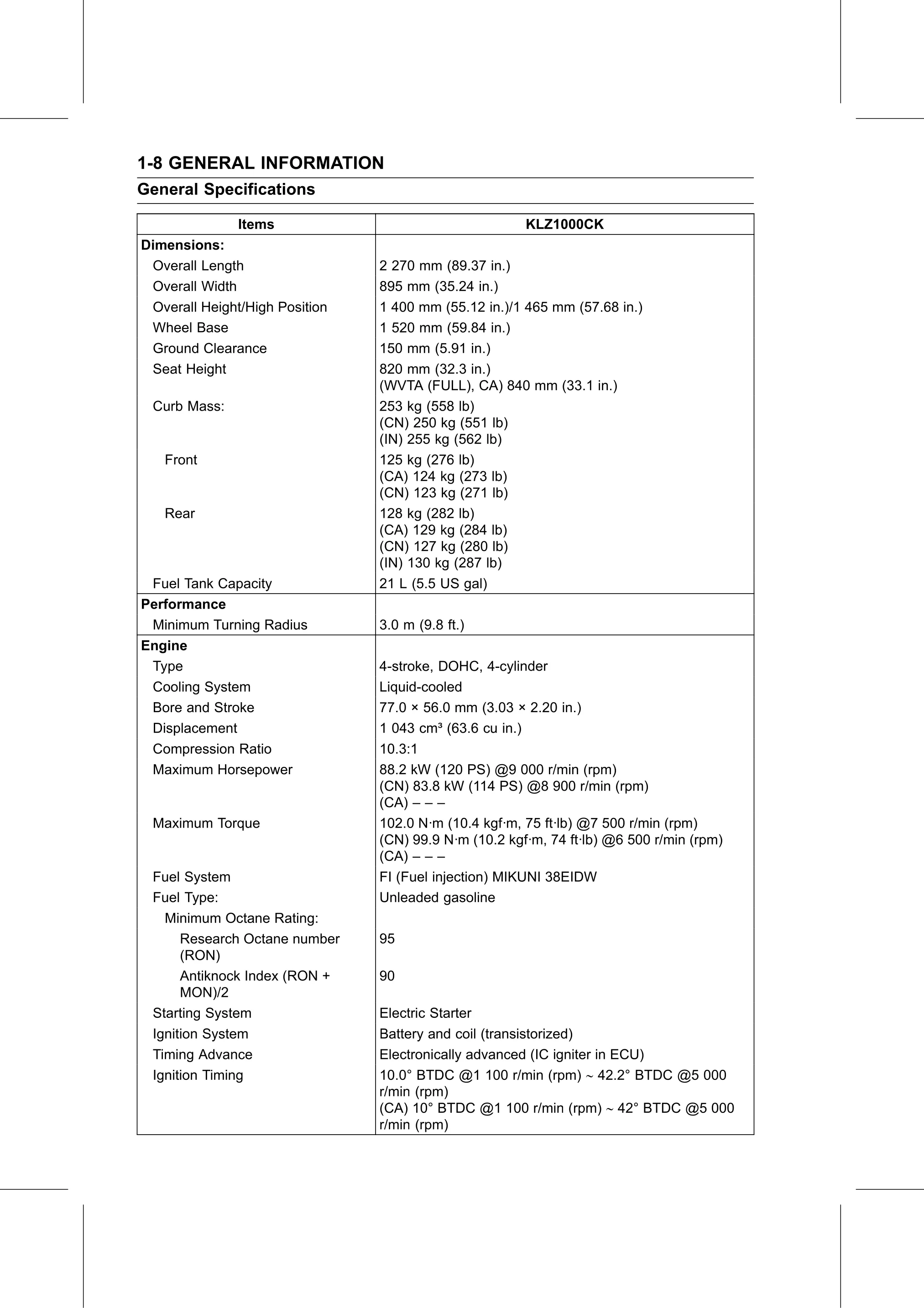

1-8 GENERAL INFORMATION
General Specifications

               Items                                   KLZ1000CK
Dimensions:
 Overall Length                 2 270 mm (89.37 in.)
 Overall Width                  895 mm (35.24 in.)
 Overall Height/High Position   1 400 mm (55.12 in.)/1 465 mm (57.68 in.)
 Wheel Base                     1 520 mm (59.84 in.)
 Ground Clearance               150 mm (5.91 in.)
 Seat Height                    820 mm (32.3 in.)
                                (WVTA (FULL), CA) 840 mm (33.1 in.)
 Curb Mass:                     253 kg (558 lb)
                                (CN) 250 kg (551 lb)
                                (IN) 255 kg (562 lb)
   Front                        125 kg (276 lb)
                                (CA) 124 kg (273 lb)
                                (CN) 123 kg (271 lb)
   Rear                         128 kg (282 lb)
                                (CA) 129 kg (284 lb)
                                (CN) 127 kg (280 lb)
                                (IN) 130 kg (287 lb)
 Fuel Tank Capacity             21 L (5.5 US gal)
Performance
 Minimum Turning Radius         3.0 m (9.8 ft.)
Engine
 Type                           4-stroke, DOHC, 4-cylinder
 Cooling System                 Liquid-cooled
 Bore and Stroke                77.0 × 56.0 mm (3.03 × 2.20 in.)
 Displacement                   1 043 cm³ (63.6 cu in.)
 Compression Ratio              10.3:1
 Maximum Horsepower             88.2 kW (120 PS) @9 000 r/min (rpm)
                                (CN) 83.8 kW (114 PS) @8 900 r/min (rpm)
                                (CA) – – –
 Maximum Torque                 102.0 N·m (10.4 kgf·m, 75 ft·lb) @7 500 r/min (rpm)
                                (CN) 99.9 N·m (10.2 kgf·m, 74 ft·lb) @6 500 r/min (rpm)
                                (CA) – – –
 Fuel System                    FI (Fuel injection) MIKUNI 38EIDW
 Fuel Type:                     Unleaded gasoline
   Minimum Octane Rating:
      Research Octane number    95
      (RON)
      Antiknock Index (RON +    90
      MON)/2
 Starting System                Electric Starter
 Ignition System                Battery and coil (transistorized)
 Timing Advance                 Electronically advanced (IC igniter in ECU)
 Ignition Timing                10.0° BTDC @1 100 r/min (rpm)  42.2° BTDC @5 000
                                r/min (rpm)
                                (CA) 10° BTDC @1 100 r/min (rpm)  42° BTDC @5 000
                                r/min (rpm)
