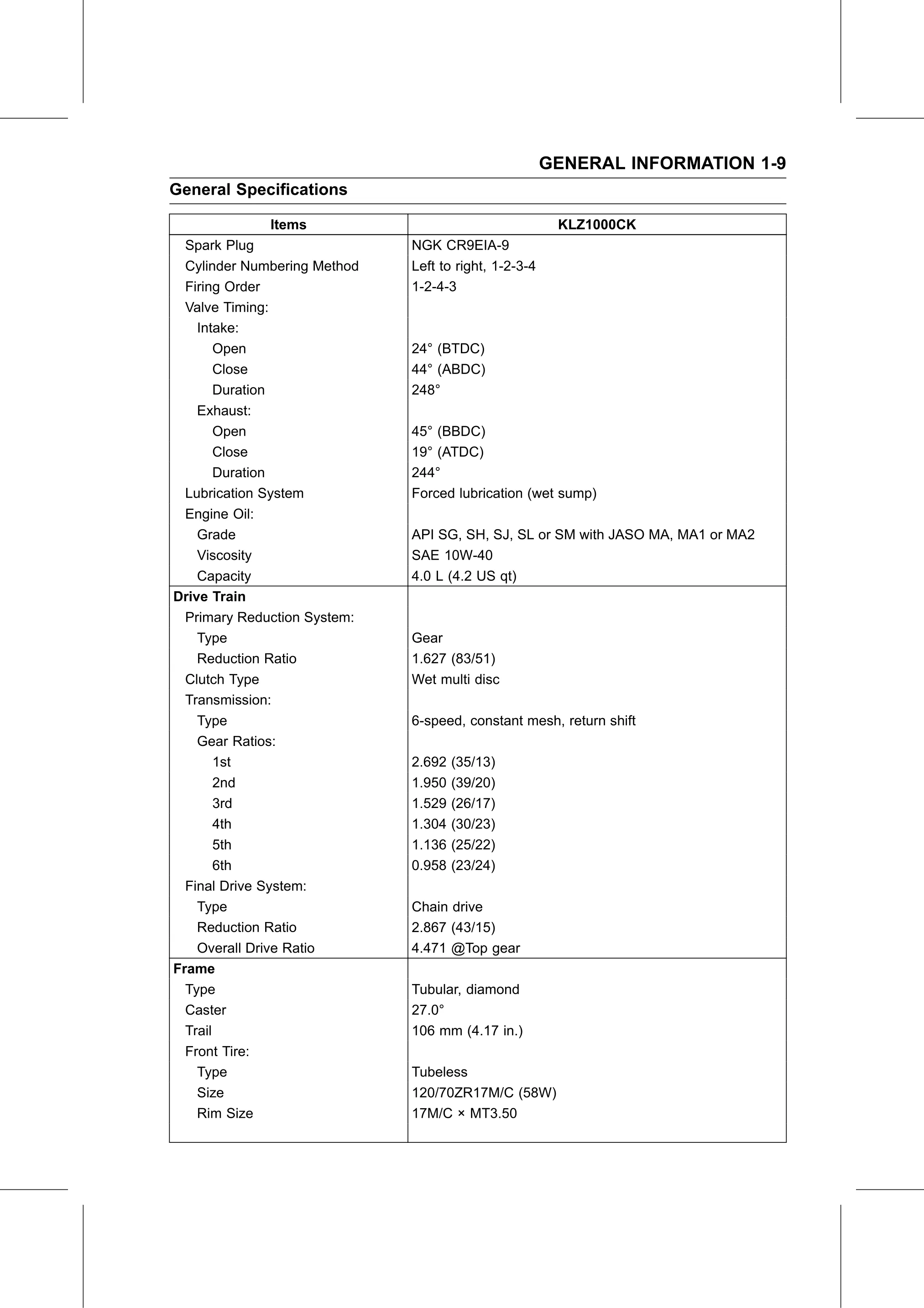

GENERAL INFORMATION 1-9
General Specifications

              Items                                     KLZ1000CK
  Spark Plug                  NGK CR9EIA-9
  Cylinder Numbering Method   Left to right, 1-2-3-4
  Firing Order                1-2-4-3
  Valve Timing:
    Intake:
        Open                  24° (BTDC)
        Close                 44° (ABDC)
        Duration              248°
    Exhaust:
        Open                  45° (BBDC)
        Close                 19° (ATDC)
        Duration              244°
  Lubrication System          Forced lubrication (wet sump)
  Engine Oil:
    Grade                     API SG, SH, SJ, SL or SM with JASO MA, MA1 or MA2
    Viscosity                 SAE 10W-40
    Capacity                  4.0 L (4.2 US qt)
Drive Train
  Primary Reduction System:
    Type                      Gear
    Reduction Ratio           1.627 (83/51)
  Clutch Type                 Wet multi disc
  Transmission:
    Type                      6-speed, constant mesh, return shift
    Gear Ratios:
        1st                   2.692 (35/13)
        2nd                   1.950 (39/20)
        3rd                   1.529 (26/17)
        4th                   1.304 (30/23)
        5th                   1.136 (25/22)
        6th                   0.958 (23/24)
  Final Drive System:
    Type                      Chain drive
    Reduction Ratio           2.867 (43/15)
    Overall Drive Ratio       4.471 @Top gear
Frame
  Type                        Tubular, diamond
  Caster                      27.0°
  Trail                       106 mm (4.17 in.)
  Front Tire:
    Type                      Tubeless
    Size                      120/70ZR17M/C (58W)
    Rim Size                  17M/C × MT3.50
