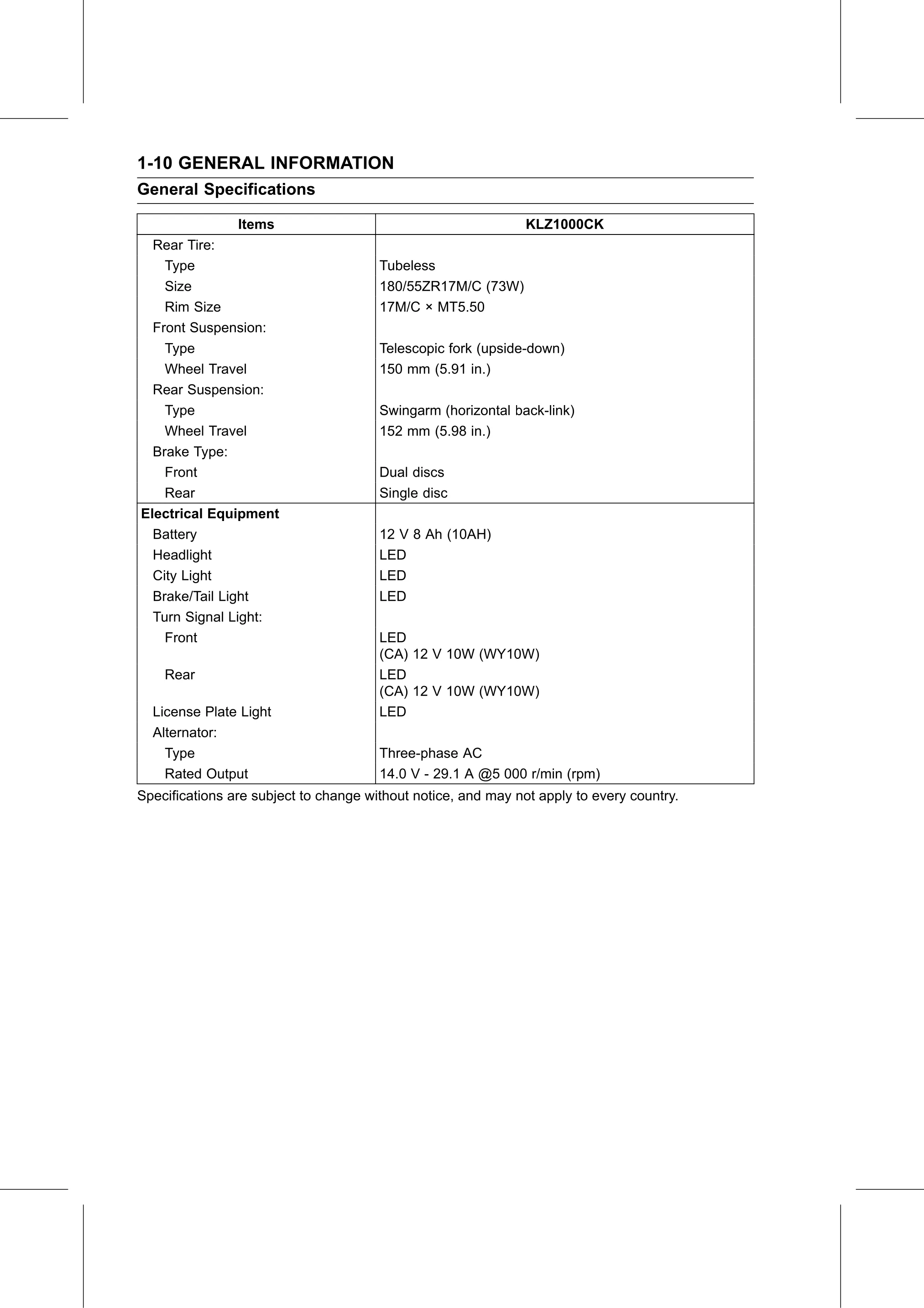

1-10 GENERAL INFORMATION
General Specifications

                Items                                          KLZ1000CK
  Rear Tire:
    Type                               Tubeless
    Size                               180/55ZR17M/C (73W)
    Rim Size                           17M/C × MT5.50
  Front Suspension:
    Type                               Telescopic fork (upside-down)
    Wheel Travel                       150 mm (5.91 in.)
  Rear Suspension:
    Type                               Swingarm (horizontal back-link)
    Wheel Travel                       152 mm (5.98 in.)
  Brake Type:
    Front                              Dual discs
    Rear                               Single disc
Electrical Equipment
  Battery                              12 V 8 Ah (10AH)
  Headlight                            LED
  City Light                           LED
  Brake/Tail Light                     LED
  Turn Signal Light:
    Front                              LED
                                       (CA) 12 V 10W (WY10W)
    Rear                               LED
                                       (CA) 12 V 10W (WY10W)
  License Plate Light                  LED
  Alternator:
    Type                               Three-phase AC
    Rated Output                       14.0 V - 29.1 A @5 000 r/min (rpm)
Specifications are subject to change without notice, and may not apply to every country.
