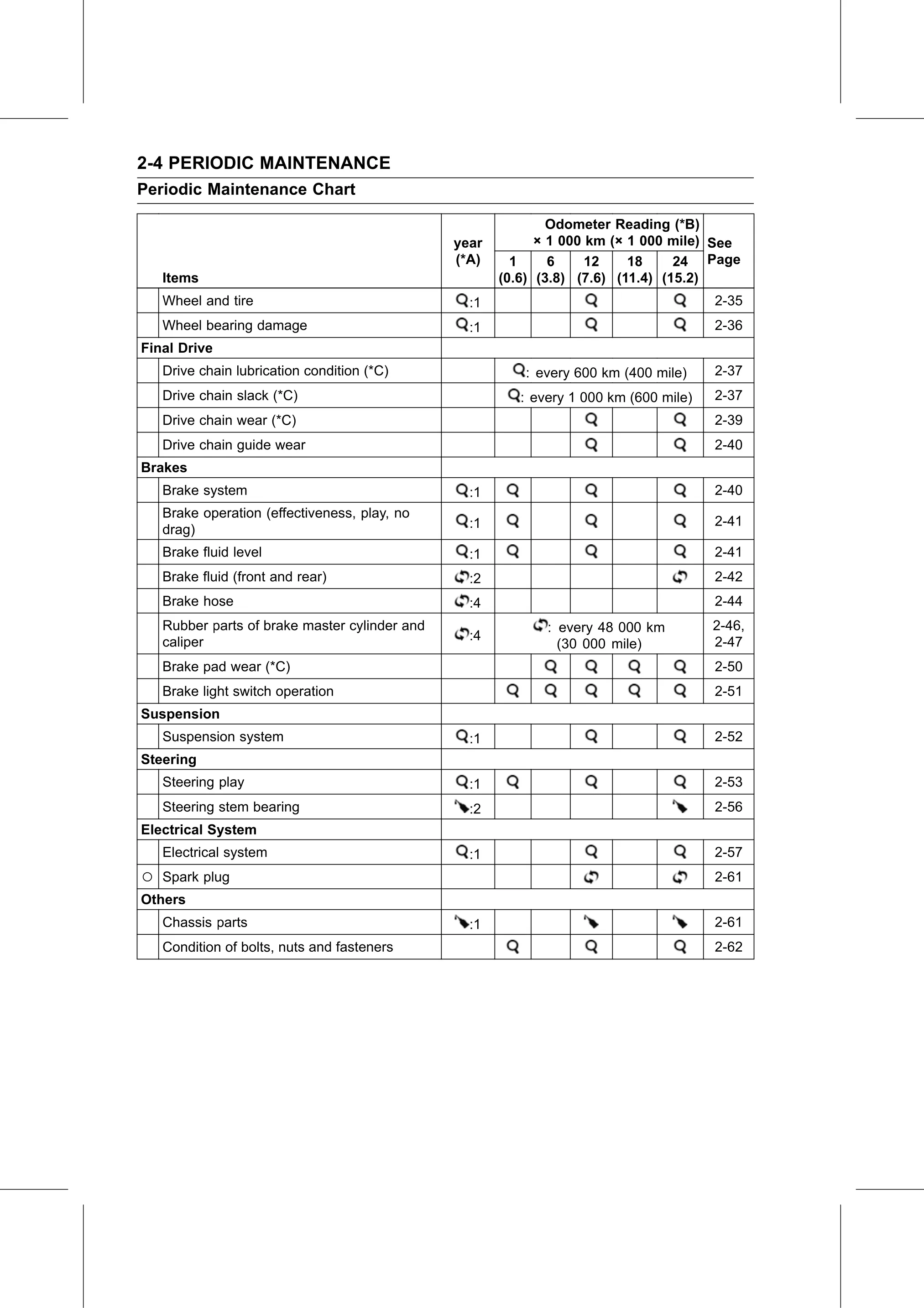

2-4 PERIODIC MAINTENANCE
Periodic Maintenance Chart

                                                              Odometer Reading (*B)
                                               year         × 1 000 km (× 1 000 mile) See
                                               (*A)     1     6     12    18     24 Page
   Items                                              (0.6) (3.8) (7.6) (11.4) (15.2)
   Wheel and tire                                :1                                    2-35
   Wheel bearing damage                          :1                                    2-36
Final Drive
   Drive chain lubrication condition (*C)                : every 600 km (400 mile)     2-37
   Drive chain slack (*C)                                : every 1 000 km (600 mile)   2-37
   Drive chain wear (*C)                                                               2-39
   Drive chain guide wear                                                              2-40
Brakes
   Brake system                                  :1                                    2-40
   Brake operation (effectiveness, play, no
                                                 :1                                    2-41
   drag)
   Brake fluid level                             :1                                    2-41
   Brake fluid (front and rear)                  :2                                    2-42
   Brake hose                                    :4                                    2-44
   Rubber parts of brake master cylinder and                 : every 48 000 km         2-46,
   caliper                                       :4                                    2-47
                                                               (30 000 mile)
   Brake pad wear (*C)                                                                 2-50
   Brake light switch operation                                                        2-51
Suspension
   Suspension system                             :1                                    2-52
Steering
   Steering play                                 :1                                    2-53
   Steering stem bearing                         :2                                    2-56
Electrical System
   Electrical system                             :1                                    2-57
○ Spark plug                                                                           2-61
Others
   Chassis parts                                 :1                                    2-61
   Condition of bolts, nuts and fasteners                                              2-62
