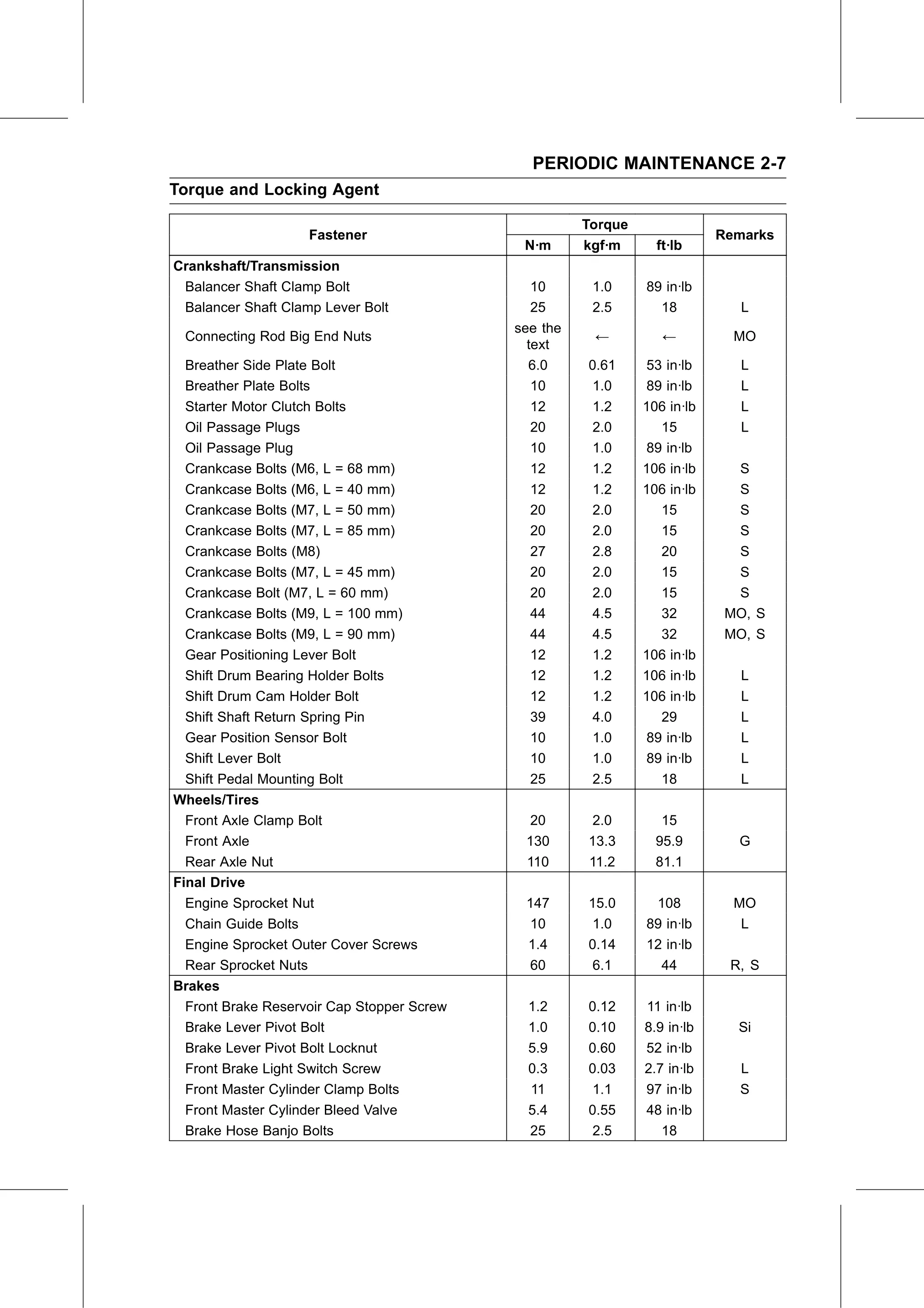

PERIODIC MAINTENANCE 2-7
Torque and Locking Agent
Torque
Fastener Remarks
N·m kgf·m ft·lb
Crankshaft/Transmission
Balancer Shaft Clamp Bolt 10 1.0 89 in·lb
Balancer Shaft Clamp Lever Bolt 25 2.5 18 L
see the
Connecting Rod Big End Nuts ← ← MO
text
Breather Side Plate Bolt 6.0 0.61 53 in·lb L
Breather Plate Bolts 10 1.0 89 in·lb L
Starter Motor Clutch Bolts 12 1.2 106 in·lb L
Oil Passage Plugs 20 2.0 15 L
Oil Passage Plug 10 1.0 89 in·lb
Crankcase Bolts (M6, L = 68 mm) 12 1.2 106 in·lb S
Crankcase Bolts (M6, L = 40 mm) 12 1.2 106 in·lb S
Crankcase Bolts (M7, L = 50 mm) 20 2.0 15 S
Crankcase Bolts (M7, L = 85 mm) 20 2.0 15 S
Crankcase Bolts (M8) 27 2.8 20 S
Crankcase Bolts (M7, L = 45 mm) 20 2.0 15 S
Crankcase Bolt (M7, L = 60 mm) 20 2.0 15 S
Crankcase Bolts (M9, L = 100 mm) 44 4.5 32 MO, S
Crankcase Bolts (M9, L = 90 mm) 44 4.5 32 MO, S
Gear Positioning Lever Bolt 12 1.2 106 in·lb
Shift Drum Bearing Holder Bolts 12 1.2 106 in·lb L
Shift Drum Cam Holder Bolt 12 1.2 106 in·lb L
Shift Shaft Return Spring Pin 39 4.0 29 L
Gear Position Sensor Bolt 10 1.0 89 in·lb L
Shift Lever Bolt 10 1.0 89 in·lb L
Shift Pedal Mounting Bolt 25 2.5 18 L
Wheels/Tires
Front Axle Clamp Bolt 20 2.0 15
Front Axle 130 13.3 95.9 G
Rear Axle Nut 110 11.2 81.1
Final Drive
Engine Sprocket Nut 147 15.0 108 MO
Chain Guide Bolts 10 1.0 89 in·lb L
Engine Sprocket Outer Cover Screws 1.4 0.14 12 in·lb
Rear Sprocket Nuts 60 6.1 44 R, S
Brakes
Front Brake Reservoir Cap Stopper Screw 1.2 0.12 11 in·lb
Brake Lever Pivot Bolt 1.0 0.10 8.9 in·lb Si
Brake Lever Pivot Bolt Locknut 5.9 0.60 52 in·lb
Front Brake Light Switch Screw 0.3 0.03 2.7 in·lb L
Front Master Cylinder Clamp Bolts 11 1.1 97 in·lb S
Front Master Cylinder Bleed Valve 5.4 0.55 48 in·lb
Brake Hose Banjo Bolts 25 2.5 18
