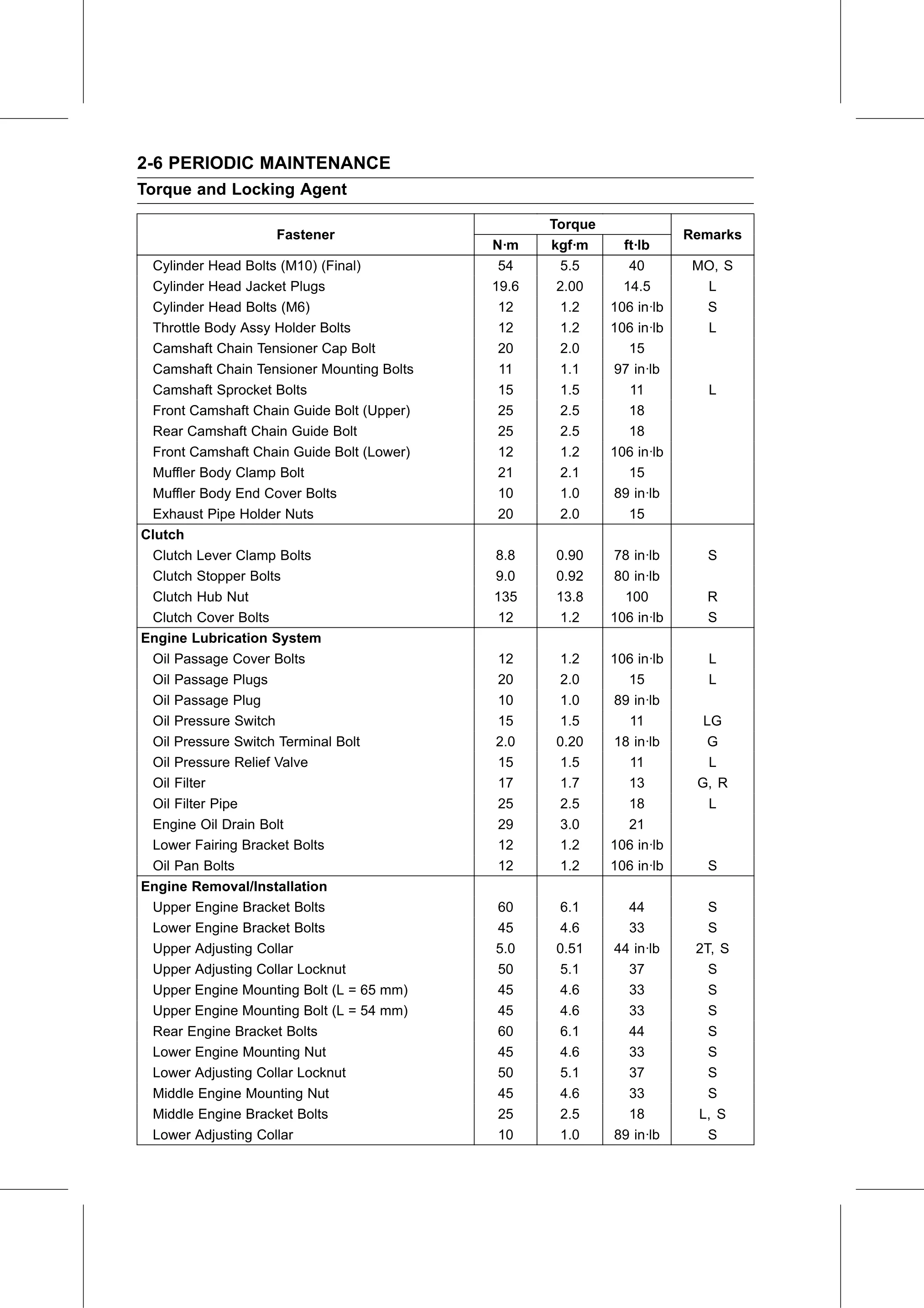

2-6 PERIODIC MAINTENANCE
Torque and Locking Agent
Torque
Fastener Remarks
N·m kgf·m ft·lb
Cylinder Head Bolts (M10) (Final) 54 5.5 40 MO, S
Cylinder Head Jacket Plugs 19.6 2.00 14.5 L
Cylinder Head Bolts (M6) 12 1.2 106 in·lb S
Throttle Body Assy Holder Bolts 12 1.2 106 in·lb L
Camshaft Chain Tensioner Cap Bolt 20 2.0 15
Camshaft Chain Tensioner Mounting Bolts 11 1.1 97 in·lb
Camshaft Sprocket Bolts 15 1.5 11 L
Front Camshaft Chain Guide Bolt (Upper) 25 2.5 18
Rear Camshaft Chain Guide Bolt 25 2.5 18
Front Camshaft Chain Guide Bolt (Lower) 12 1.2 106 in·lb
Muffler Body Clamp Bolt 21 2.1 15
Muffler Body End Cover Bolts 10 1.0 89 in·lb
Exhaust Pipe Holder Nuts 20 2.0 15
Clutch
Clutch Lever Clamp Bolts 8.8 0.90 78 in·lb S
Clutch Stopper Bolts 9.0 0.92 80 in·lb
Clutch Hub Nut 135 13.8 100 R
Clutch Cover Bolts 12 1.2 106 in·lb S
Engine Lubrication System
Oil Passage Cover Bolts 12 1.2 106 in·lb L
Oil Passage Plugs 20 2.0 15 L
Oil Passage Plug 10 1.0 89 in·lb
Oil Pressure Switch 15 1.5 11 LG
Oil Pressure Switch Terminal Bolt 2.0 0.20 18 in·lb G
Oil Pressure Relief Valve 15 1.5 11 L
Oil Filter 17 1.7 13 G, R
Oil Filter Pipe 25 2.5 18 L
Engine Oil Drain Bolt 29 3.0 21
Lower Fairing Bracket Bolts 12 1.2 106 in·lb
Oil Pan Bolts 12 1.2 106 in·lb S
Engine Removal/Installation
Upper Engine Bracket Bolts 60 6.1 44 S
Lower Engine Bracket Bolts 45 4.6 33 S
Upper Adjusting Collar 5.0 0.51 44 in·lb 2T, S
Upper Adjusting Collar Locknut 50 5.1 37 S
Upper Engine Mounting Bolt (L = 65 mm) 45 4.6 33 S
Upper Engine Mounting Bolt (L = 54 mm) 45 4.6 33 S
Rear Engine Bracket Bolts 60 6.1 44 S
Lower Engine Mounting Nut 45 4.6 33 S
Lower Adjusting Collar Locknut 50 5.1 37 S
Middle Engine Mounting Nut 45 4.6 33 S
Middle Engine Bracket Bolts 25 2.5 18 L, S
Lower Adjusting Collar 10 1.0 89 in·lb S
