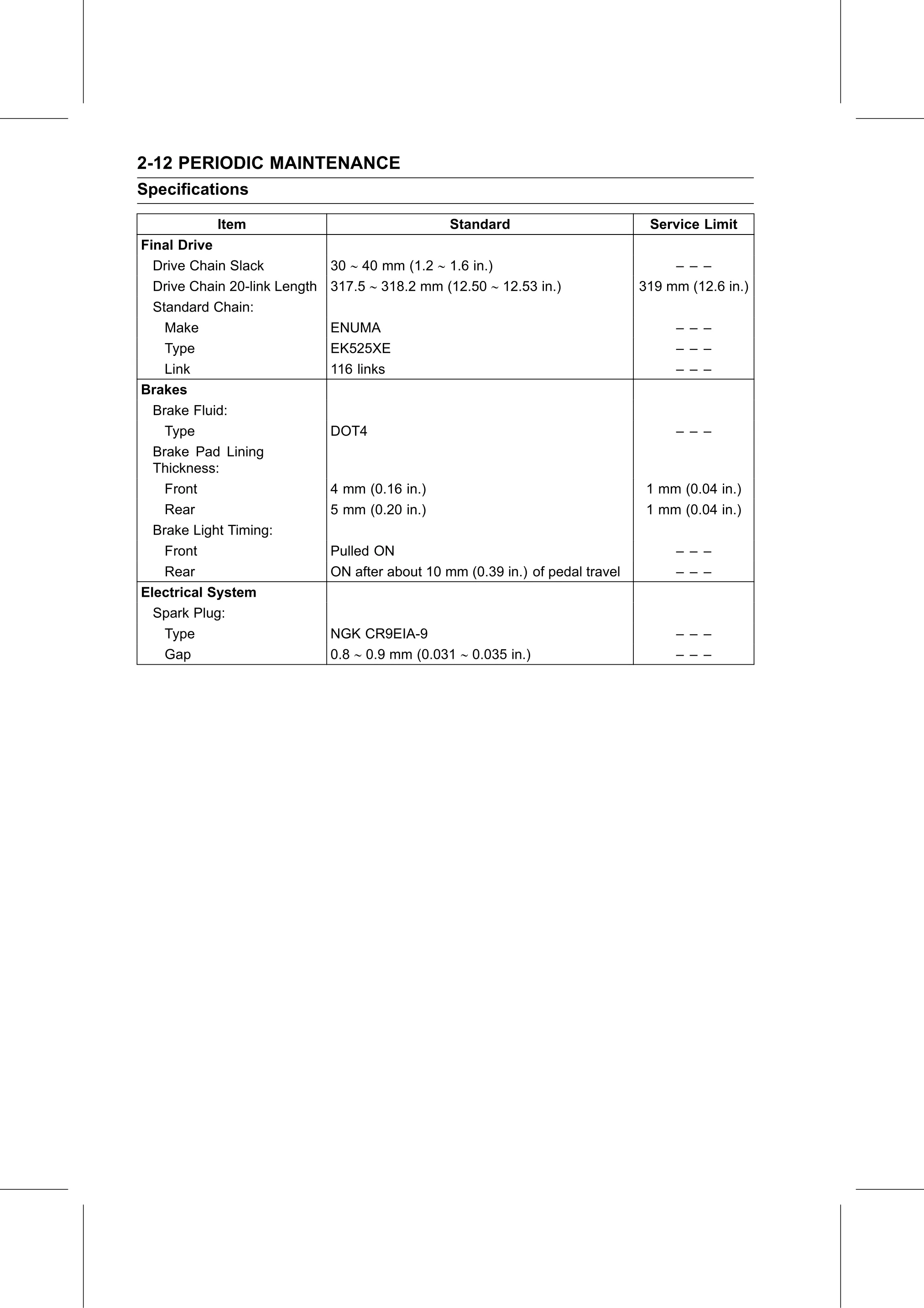

Service Manual (KLZ1000C) — page 34 of 762

Text on this page

2-12 PERIODIC MAINTENANCE
Specifications

            Item                                  Standard                        Service Limit
Final Drive
  Drive Chain Slack            30  40 mm (1.2  1.6 in.)                             – – –
  Drive Chain 20-link Length   317.5  318.2 mm (12.50  12.53 in.)              319 mm (12.6 in.)
  Standard Chain:
    Make                       ENUMA                                                  – – –
    Type                       EK525XE                                                – – –
    Link                       116 links                                              – – –
Brakes
  Brake Fluid:
    Type                       DOT4                                                   – – –
  Brake Pad Lining
  Thickness:
    Front                      4 mm (0.16 in.)                                    1 mm (0.04 in.)
    Rear                       5 mm (0.20 in.)                                    1 mm (0.04 in.)
  Brake Light Timing:
    Front                      Pulled ON                                              – – –
    Rear                       ON after about 10 mm (0.39 in.) of pedal travel        – – –
Electrical System
  Spark Plug:
    Type                       NGK CR9EIA-9                                           – – –
    Gap                        0.8  0.9 mm (0.031  0.035 in.)                       – – –
