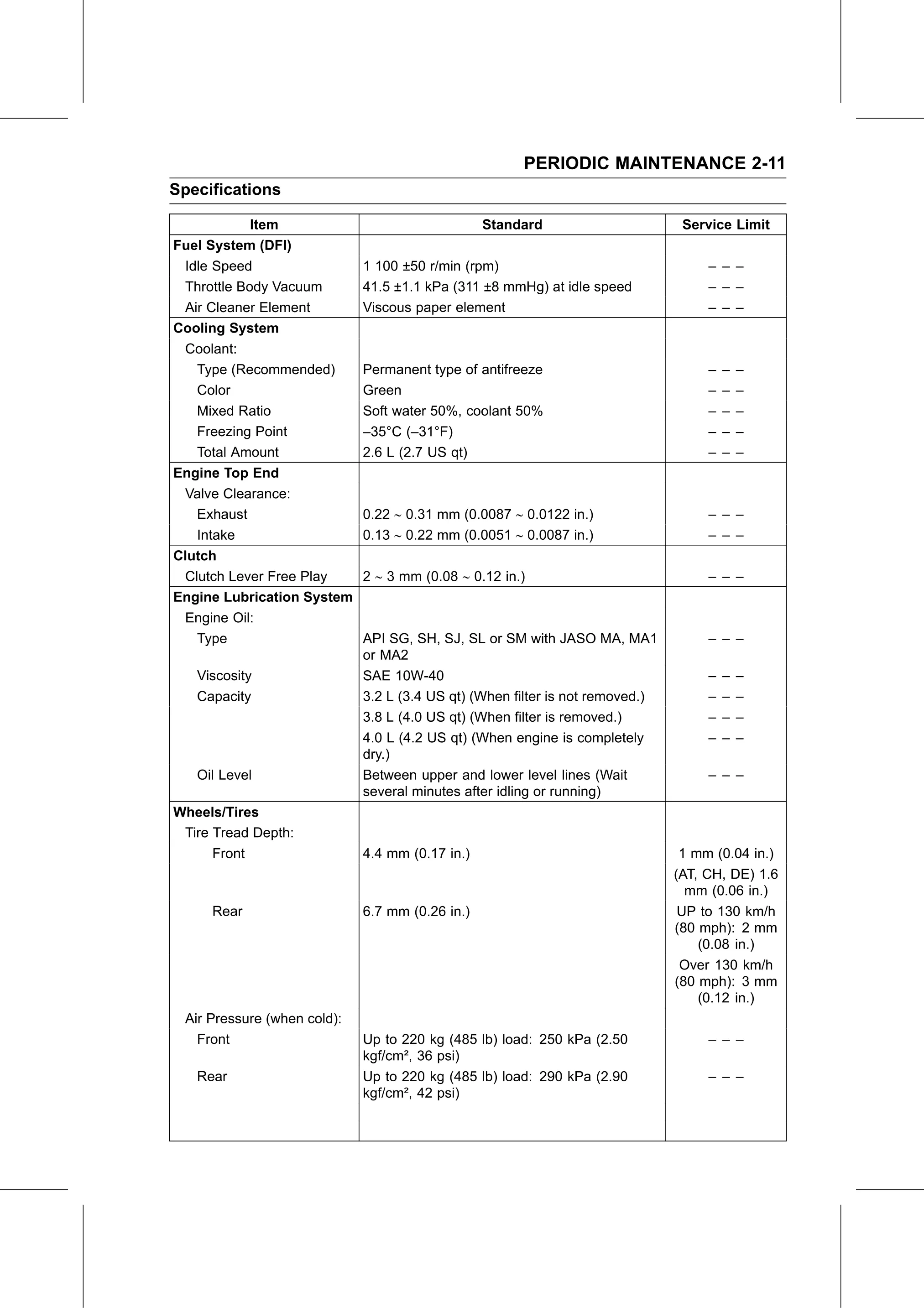

PERIODIC MAINTENANCE 2-11
Specifications

            Item                                 Standard                       Service Limit
Fuel System (DFI)
 Idle Speed                  1 100 ±50 r/min (rpm)                                  – – –
 Throttle Body Vacuum        41.5 ±1.1 kPa (311 ±8 mmHg) at idle speed              – – –
 Air Cleaner Element         Viscous paper element                                  – – –
Cooling System
 Coolant:
   Type (Recommended)        Permanent type of antifreeze                           – – –
   Color                     Green                                                  – – –
   Mixed Ratio               Soft water 50%, coolant 50%                            – – –
   Freezing Point            –35°C (–31°F)                                          – – –
   Total Amount              2.6 L (2.7 US qt)                                      – – –
Engine Top End
 Valve Clearance:
   Exhaust                   0.22  0.31 mm (0.0087  0.0122 in.)                   – – –
   Intake                    0.13  0.22 mm (0.0051  0.0087 in.)                   – – –
Clutch
 Clutch Lever Free Play      2  3 mm (0.08  0.12 in.)                             – – –
Engine Lubrication System
 Engine Oil:
   Type                      API SG, SH, SJ, SL or SM with JASO MA, MA1             – – –
                             or MA2
   Viscosity                 SAE 10W-40                                             – – –
   Capacity                  3.2 L (3.4 US qt) (When filter is not removed.)        – – –
                             3.8 L (4.0 US qt) (When filter is removed.)            – – –
                             4.0 L (4.2 US qt) (When engine is completely           – – –
                             dry.)
   Oil Level                 Between upper and lower level lines (Wait              – – –
                             several minutes after idling or running)
Wheels/Tires
 Tire Tread Depth:
      Front                  4.4 mm (0.17 in.)                                  1 mm (0.04 in.)
                                                                               (AT, CH, DE) 1.6
                                                                                 mm (0.06 in.)
     Rear                    6.7 mm (0.26 in.)                                  UP to 130 km/h
                                                                               (80 mph): 2 mm
                                                                                   (0.08 in.)
                                                                                Over 130 km/h
                                                                               (80 mph): 3 mm
                                                                                   (0.12 in.)
 Air Pressure (when cold):
   Front                     Up to 220 kg (485 lb) load: 250 kPa (2.50              – – –
                             kgf/cm², 36 psi)
   Rear                      Up to 220 kg (485 lb) load: 290 kPa (2.90              – – –
                             kgf/cm², 42 psi)
