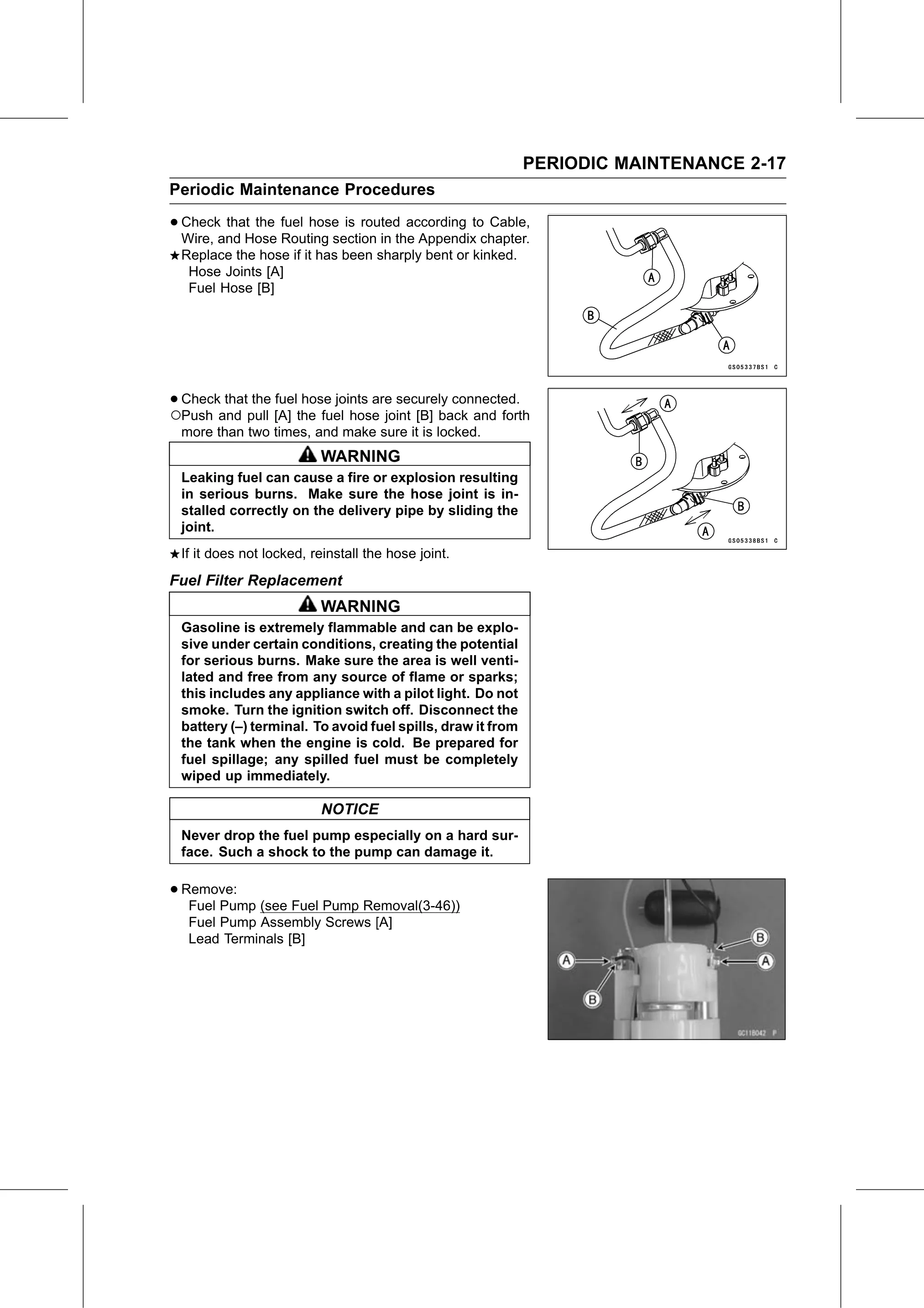

PERIODIC MAINTENANCE 2-17
Periodic Maintenance Procedures

• Check  that the fuel hose is routed according to Cable,
  Wire, and Hose Routing section in the Appendix chapter.
 Replace the hose if it has been sharply bent or kinked.
  Hose Joints [A]
  Fuel Hose [B]

•○Check that the fuel hose joints are securely connected.
  Push and pull [A] the fuel hose joint [B] back and forth
 more than two times, and make sure it is locked.
                         WARNING
 Leaking fuel can cause a fire or explosion resulting
 in serious burns. Make sure the hose joint is in-
 stalled correctly on the delivery pipe by sliding the
 joint.
 If it does not locked, reinstall the hose joint.
Fuel Filter Replacement
                         WARNING
 Gasoline is extremely flammable and can be explo-
 sive under certain conditions, creating the potential
 for serious burns. Make sure the area is well venti-
 lated and free from any source of flame or sparks;
 this includes any appliance with a pilot light. Do not
 smoke. Turn the ignition switch off. Disconnect the
 battery (–) terminal. To avoid fuel spills, draw it from
 the tank when the engine is cold. Be prepared for
 fuel spillage; any spilled fuel must be completely
 wiped up immediately.

                         NOTICE
 Never drop the fuel pump especially on a hard sur-
 face. Such a shock to the pump can damage it.

• Remove:
   Fuel Pump (see Fuel Pump Removal(3-46))
   Fuel Pump Assembly Screws [A]
   Lead Terminals [B]
