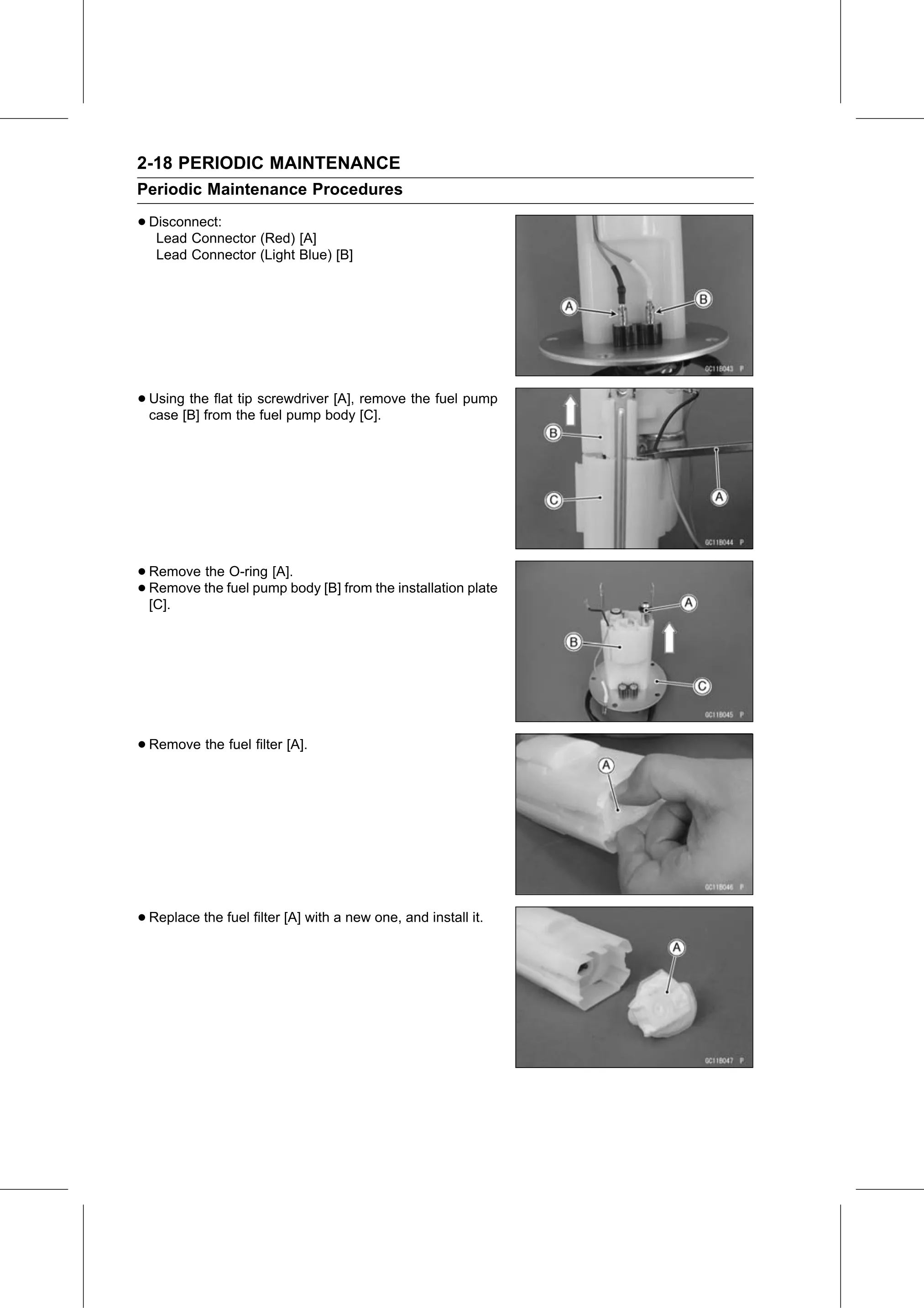

2-18 PERIODIC MAINTENANCE
Periodic Maintenance Procedures

• Disconnect:
   Lead Connector (Red) [A]
   Lead Connector (Light Blue) [B]

• Using the flat tip screwdriver [A], remove the fuel pump
  case [B] from the fuel pump body [C].

• Remove the O-ring [A].
• [C].
  Remove the fuel pump body [B] from the installation plate

• Remove the fuel filter [A].

• Replace the fuel filter [A] with a new one, and install it.
