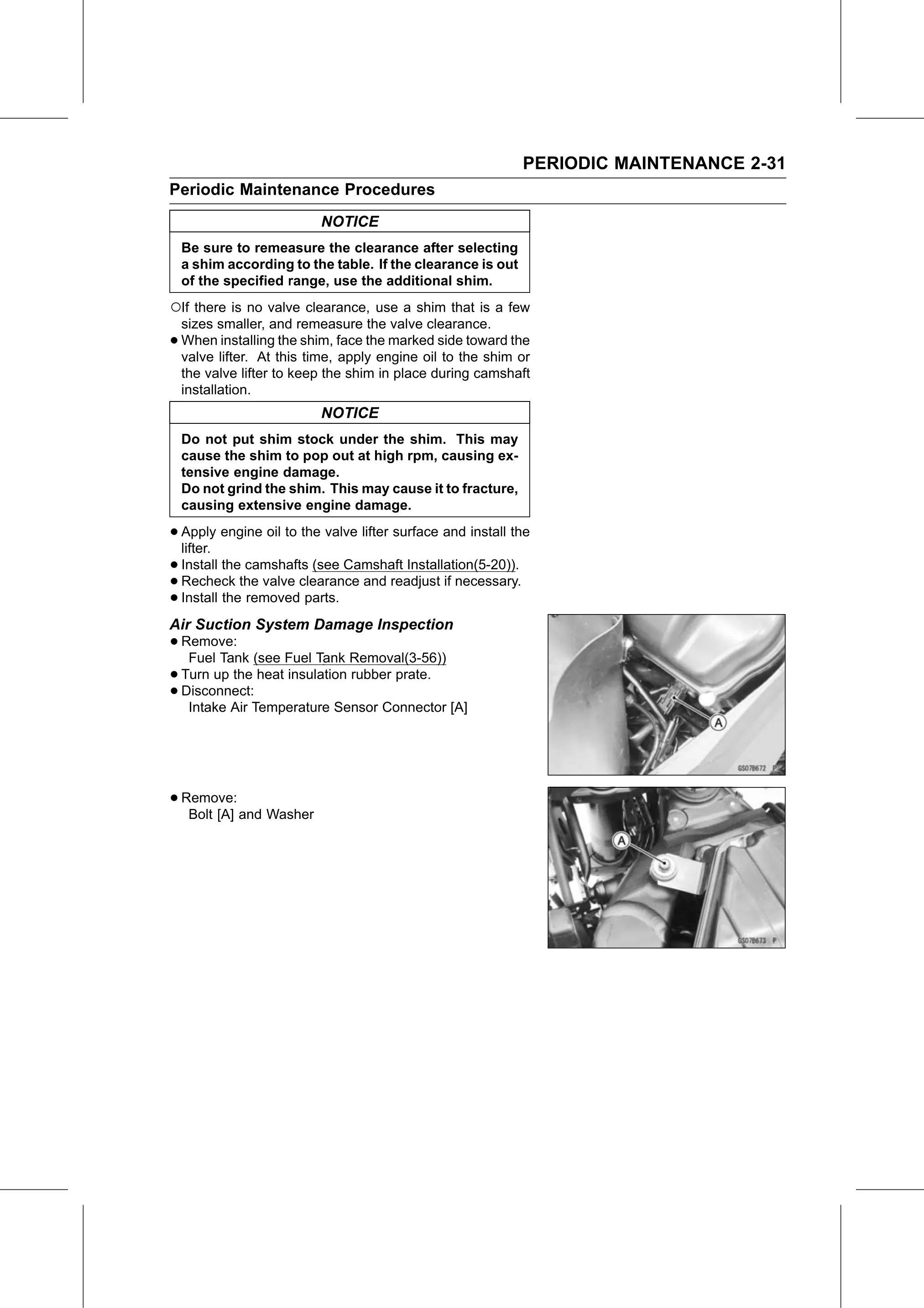

PERIODIC MAINTENANCE 2-31
Periodic Maintenance Procedures
                           NOTICE
    Be sure to remeasure the clearance after selecting
    a shim according to the table. If the clearance is out
    of the specified range, use the additional shim.
○If there is no valve clearance, use a shim that is a few
    sizes smaller, and remeasure the valve clearance.
•   When installing the shim, face the marked side toward the
    valve lifter. At this time, apply engine oil to the shim or
    the valve lifter to keep the shim in place during camshaft
    installation.
                           NOTICE
    Do not put shim stock under the shim. This may
    cause the shim to pop out at high rpm, causing ex-
    tensive engine damage.
    Do not grind the shim. This may cause it to fracture,
    causing extensive engine damage.

• Apply
  lifter.
          engine oil to the valve lifter surface and install the

• Install the camshafts (see Camshaft Installation(5-20)).
• Install thetheremoved
  Recheck         valve clearance and readjust if necessary.
•                        parts.
Air Suction System Damage Inspection
• Remove:
   Fuel Tank (see Fuel Tank Removal(3-56))
• Disconnect:
  Turn up the heat insulation rubber prate.
• Intake Air Temperature Sensor Connector [A]

• Remove:
   Bolt [A] and Washer
