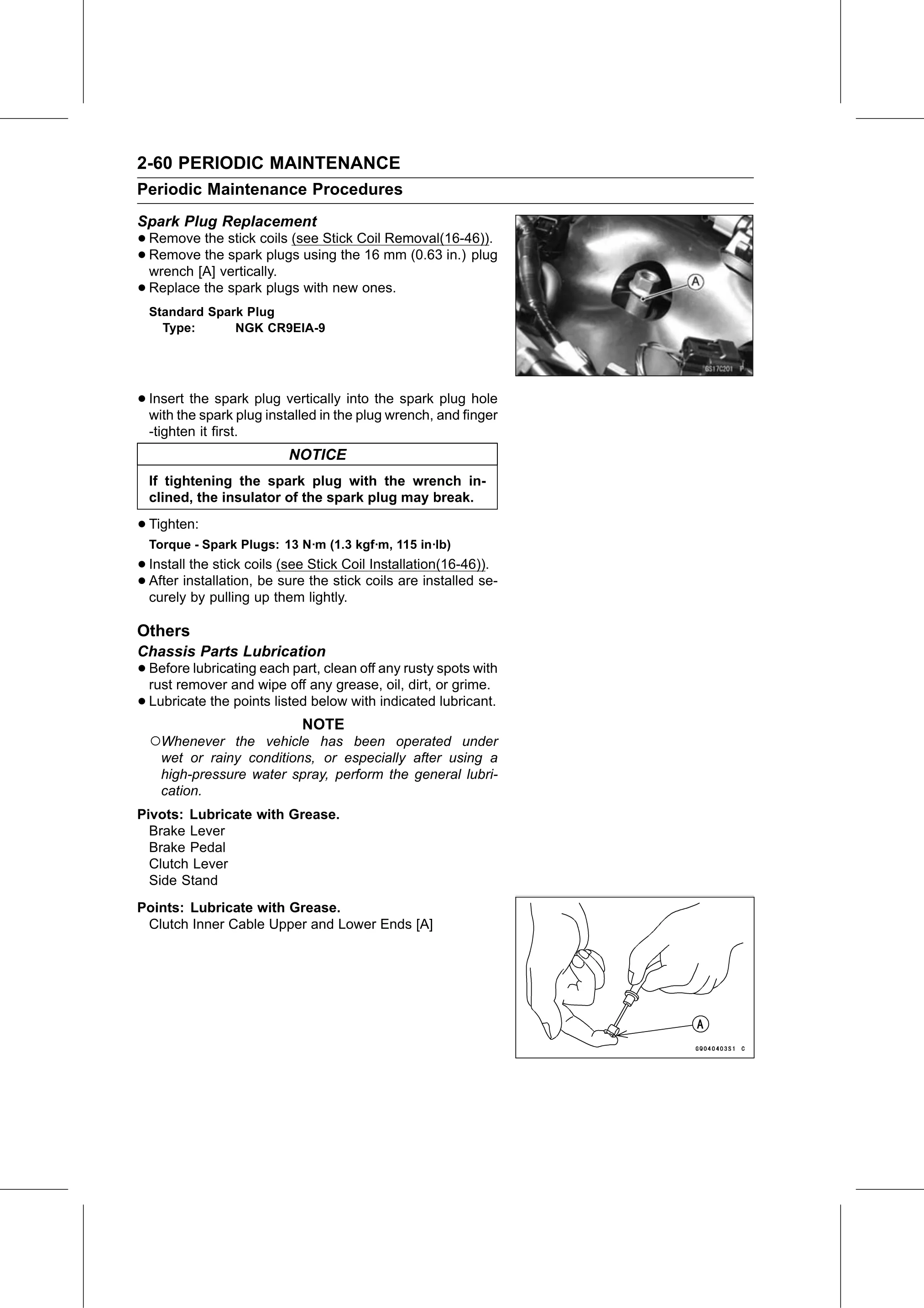

2-60 PERIODIC MAINTENANCE
Periodic Maintenance Procedures
Spark Plug Replacement
• Remove  the stick coils (see Stick Coil Removal(16-46)).
• Remove  the spark plugs using the 16 mm (0.63 in.) plug
  wrench [A] vertically.
• Replace the spark plugs with new ones.
  Standard Spark Plug
    Type:      NGK CR9EIA-9

• Insert the spark plug vertically into the spark plug hole
  with the spark plug installed in the plug wrench, and finger
  -tighten it first.
                          NOTICE
  If tightening the spark plug with the wrench in-
  clined, the insulator of the spark plug may break.

• Tighten:
  Torque - Spark Plugs: 13 N·m (1.3 kgf·m, 115 in·lb)
• Install the stick coils (see Stick Coil Installation(16-46)).
• curely by pulling upbe them
  After installation,     sure the stick coils are installed se-
                               lightly.

Others
Chassis Parts Lubrication
• Before lubricating each part, clean off any rusty spots with
  rust remover and wipe off any grease, oil, dirt, or grime.
• Lubricate the points listed below with indicated lubricant.
                             NOTE
  ○Whenever the vehicle has been operated under
    wet or rainy conditions, or especially after using a
    high-pressure water spray, perform the general lubri-
    cation.
Pivots: Lubricate with Grease.
  Brake Lever
  Brake Pedal
  Clutch Lever
  Side Stand
Points: Lubricate with Grease.
 Clutch Inner Cable Upper and Lower Ends [A]
