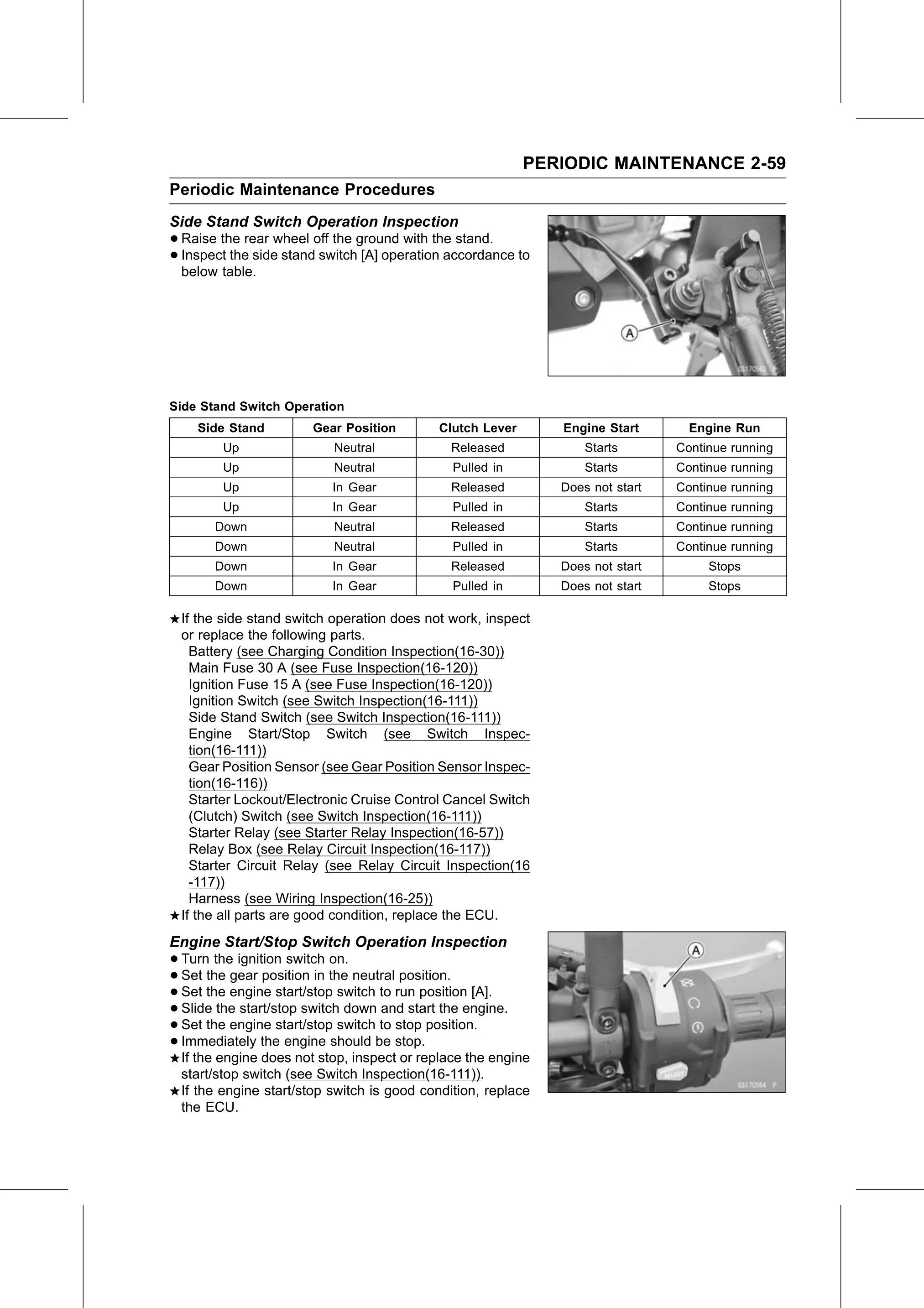

PERIODIC MAINTENANCE 2-59
Periodic Maintenance Procedures
Side Stand Switch Operation Inspection
• Raise the rear wheel off the ground with the stand.
• Inspect the side stand switch [A] operation accordance to
  below table.

Side Stand Switch Operation
    Side Stand          Gear Position         Clutch Lever       Engine Start       Engine Run
         Up                 Neutral             Released             Starts       Continue running
         Up                 Neutral             Pulled in            Starts       Continue running
         Up                 In Gear             Released         Does not start   Continue running
         Up                 In Gear             Pulled in            Starts       Continue running
       Down                 Neutral             Released             Starts       Continue running
       Down                 Neutral             Pulled in            Starts       Continue running
       Down                 In Gear             Released         Does not start        Stops
       Down                 In Gear             Pulled in        Does not start        Stops

  If the side stand switch operation does not work, inspect
  or replace the following parts.
    Battery (see Charging Condition Inspection(16-30))
    Main Fuse 30 A (see Fuse Inspection(16-120))
    Ignition Fuse 15 A (see Fuse Inspection(16-120))
    Ignition Switch (see Switch Inspection(16-111))
    Side Stand Switch (see Switch Inspection(16-111))
    Engine Start/Stop Switch (see Switch Inspec-
    tion(16-111))
    Gear Position Sensor (see Gear Position Sensor Inspec-
    tion(16-116))
    Starter Lockout/Electronic Cruise Control Cancel Switch
    (Clutch) Switch (see Switch Inspection(16-111))
    Starter Relay (see Starter Relay Inspection(16-57))
    Relay Box (see Relay Circuit Inspection(16-117))
    Starter Circuit Relay (see Relay Circuit Inspection(16
    -117))
    Harness (see Wiring Inspection(16-25))
  If the all parts are good condition, replace the ECU.
Engine Start/Stop Switch Operation Inspection
• Turn  the ignition switch on.
• Set the engine
  Set  the gear position in the neutral position.
• Slide the start/stop
                   start/stop switch to run position [A].
• Set the engine start/stop
                        switch down and start the engine.
• Immediately the engine should
                              switch to stop position.
• If the engine does not stop, inspect
                                    be stop.
                                         or replace the engine
  start/stop switch (see Switch Inspection(16-111)).
  If the engine start/stop switch is good condition, replace
  the ECU.
