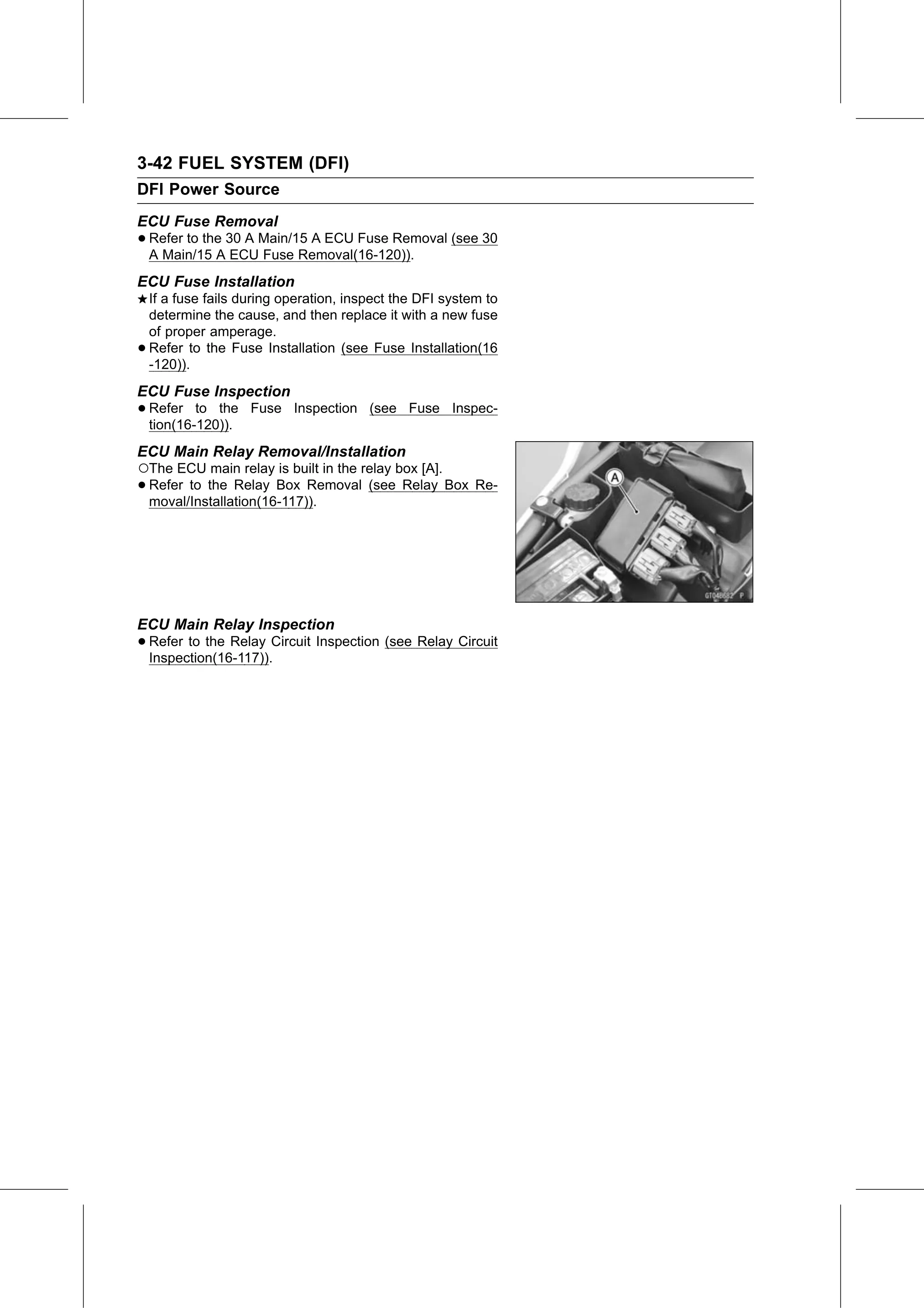

3-42 FUEL SYSTEM (DFI)
DFI Power Source
ECU Fuse Removal
• Refer to the 30 A Main/15 A ECU Fuse Removal (see 30
  A Main/15 A ECU Fuse Removal(16-120)).
ECU Fuse Installation
    If a fuse fails during operation, inspect the DFI system to
    determine the cause, and then replace it with a new fuse
    of proper amperage.
•   Refer to the Fuse Installation (see Fuse Installation(16
    -120)).
ECU Fuse Inspection
• Refer   to the Fuse Inspection (see Fuse Inspec-
  tion(16-120)).
ECU Main Relay Removal/Installation
○The ECU main relay is built in the relay box [A].
• Refer to the Relay Box Removal (see Relay Box Re-
  moval/Installation(16-117)).

ECU Main Relay Inspection
• Refer to the Relay Circuit Inspection (see Relay Circuit
  Inspection(16-117)).
