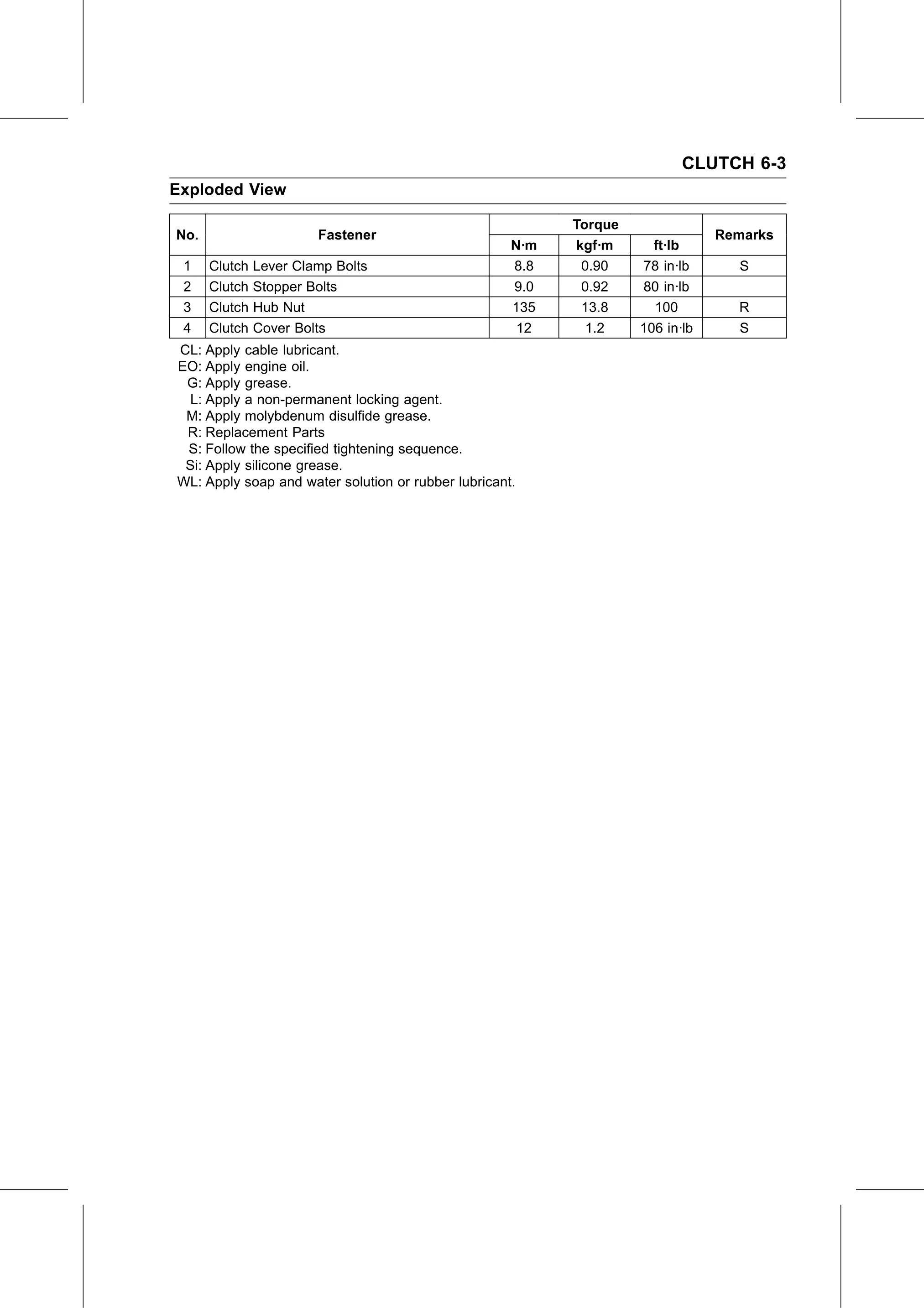

CLUTCH 6-3
Exploded View

                                                           Torque
No.                   Fastener                                                  Remarks
                                                     N·m   kgf·m      ft·lb
 1    Clutch Lever Clamp Bolts                       8.8    0.90    78 in·lb      S
 2    Clutch Stopper Bolts                           9.0    0.92    80 in·lb
 3    Clutch Hub Nut                                 135    13.8      100         R
 4    Clutch Cover Bolts                              12     1.2    106 in·lb     S
CL: Apply cable lubricant.
EO: Apply engine oil.
 G: Apply grease.
 L: Apply a non-permanent locking agent.
 M: Apply molybdenum disulfide grease.
 R: Replacement Parts
 S: Follow the specified tightening sequence.
 Si: Apply silicone grease.
WL: Apply soap and water solution or rubber lubricant.
