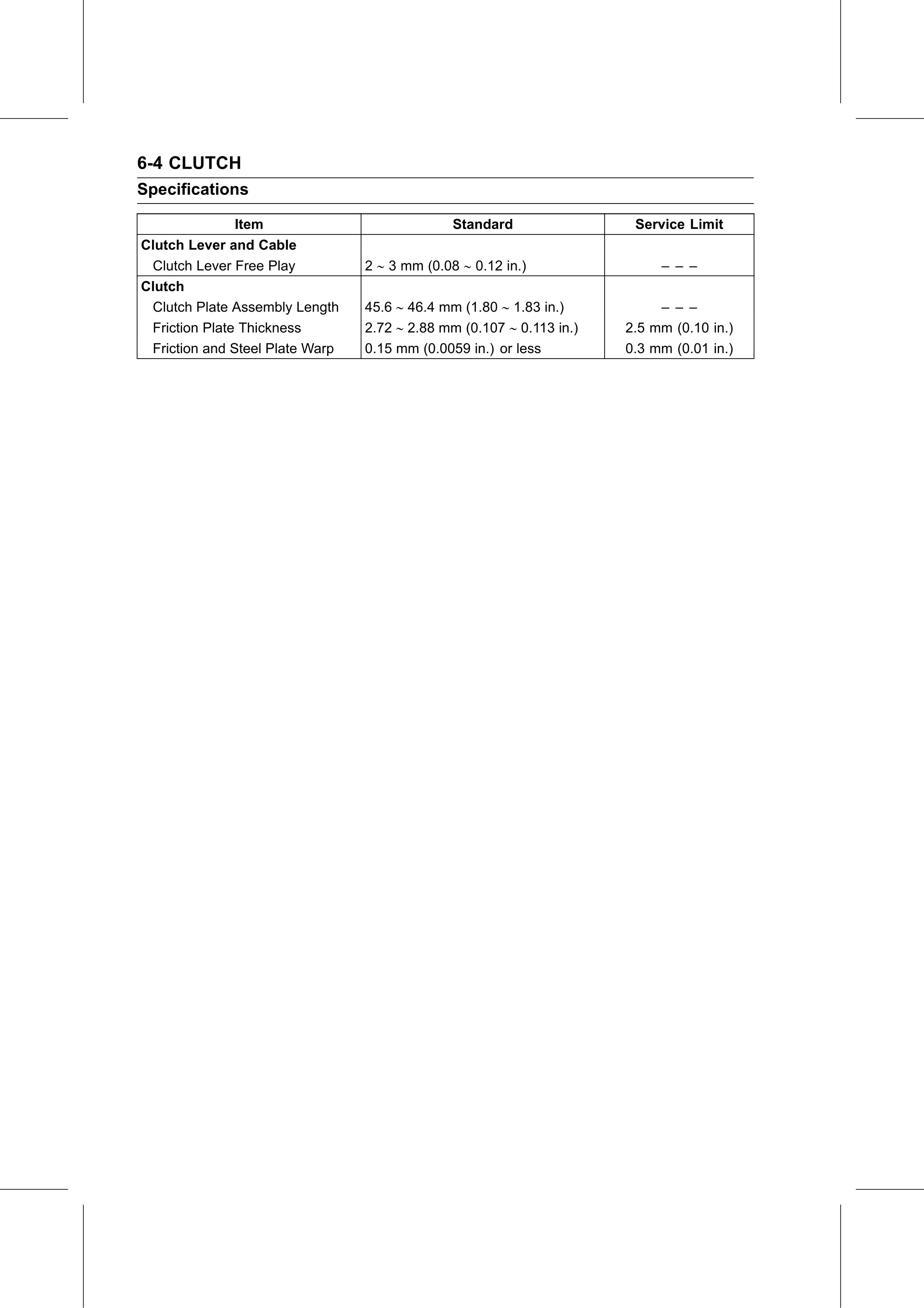

6-4 CLUTCH
Specifications

               Item                            Standard                Service Limit
Clutch Lever and Cable
 Clutch Lever Free Play          2  3 mm (0.08  0.12 in.)                – – –
Clutch
 Clutch Plate Assembly Length    45.6  46.4 mm (1.80  1.83 in.)          – – –
 Friction Plate Thickness        2.72  2.88 mm (0.107  0.113 in.)   2.5 mm (0.10 in.)
 Friction and Steel Plate Warp   0.15 mm (0.0059 in.) or less         0.3 mm (0.01 in.)
