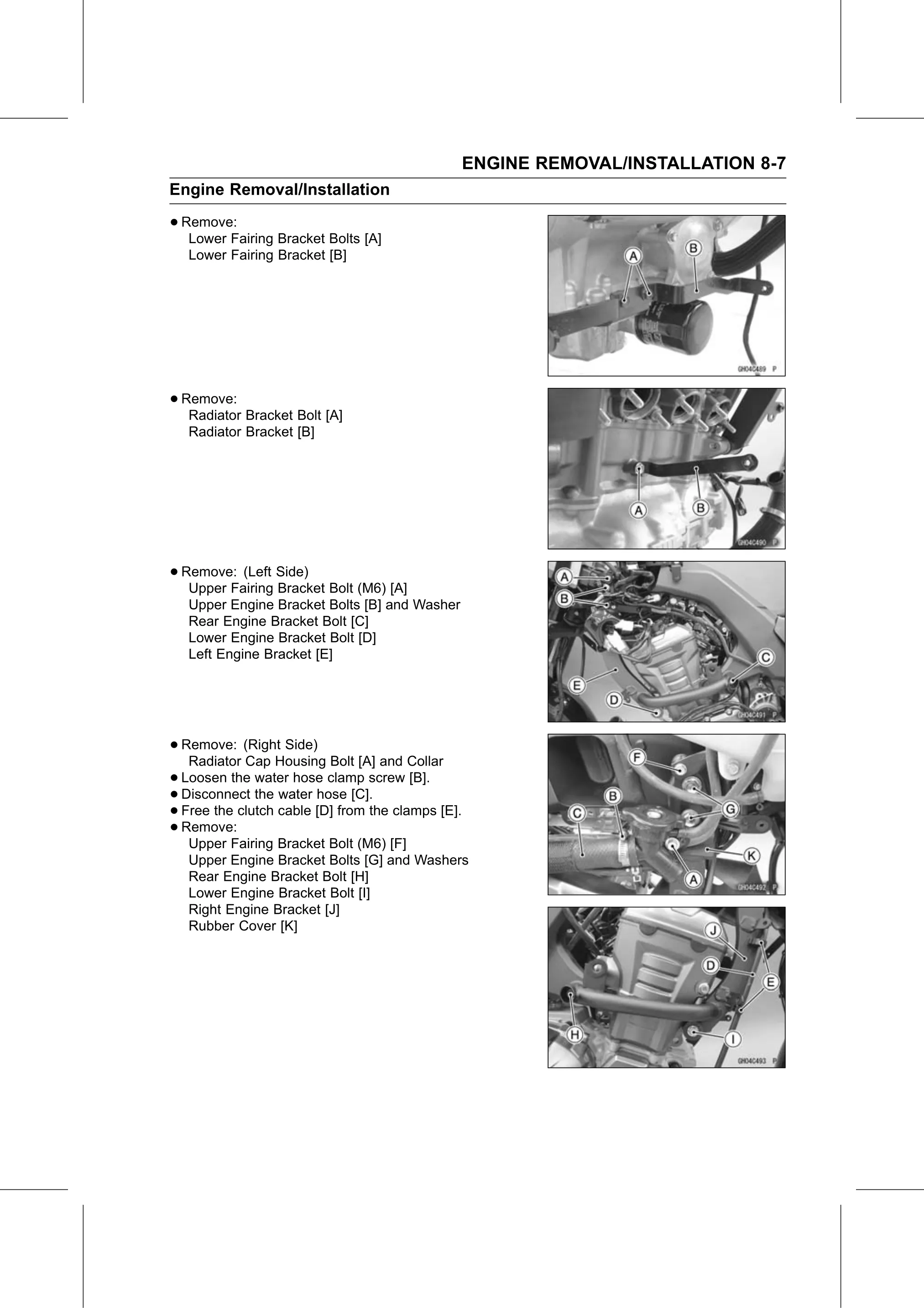

ENGINE REMOVAL/INSTALLATION 8-7
Engine Removal/Installation

• Remove:
   Lower Fairing Bracket Bolts [A]
   Lower Fairing Bracket [B]

• Remove:
   Radiator Bracket Bolt [A]
   Radiator Bracket [B]

• Remove:  (Left Side)
   Upper Fairing Bracket Bolt (M6) [A]
   Upper Engine Bracket Bolts [B] and Washer
   Rear Engine Bracket Bolt [C]
   Lower Engine Bracket Bolt [D]
   Left Engine Bracket [E]

• Remove:   (Right Side)
   Radiator Cap Housing Bolt [A] and Collar
• Disconnect
  Loosen  the water hose clamp screw [B].
• Free the clutch
              the water hose [C].
• Remove:         cable [D] from the clamps [E].
• Upper Fairing Bracket Bolt (M6) [F]
   Upper Engine Bracket Bolts [G] and Washers
   Rear Engine Bracket Bolt [H]
   Lower Engine Bracket Bolt [I]
   Right Engine Bracket [J]
   Rubber Cover [K]
