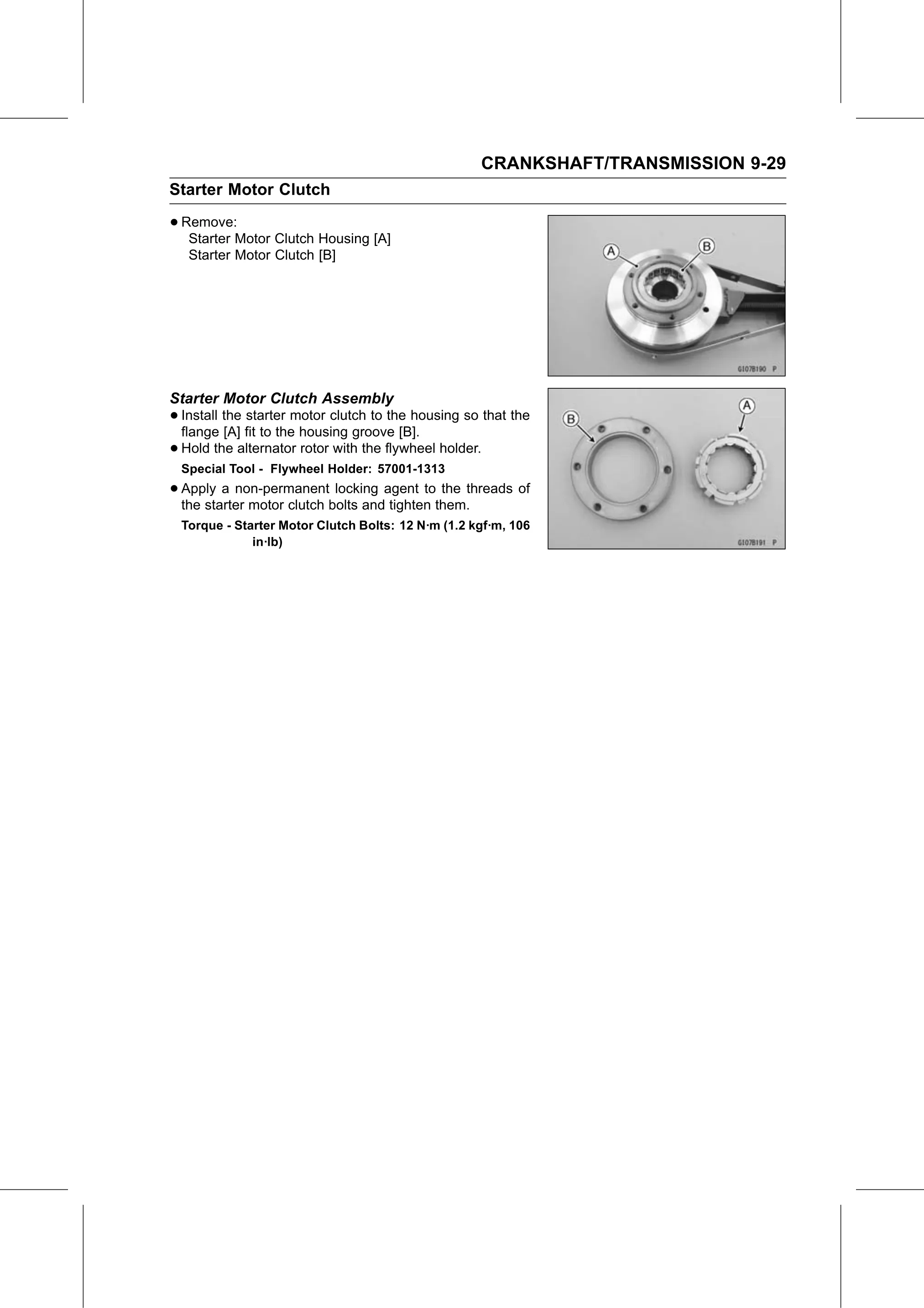

CRANKSHAFT/TRANSMISSION 9-29
Starter Motor Clutch

• Remove:
   Starter Motor Clutch Housing [A]
   Starter Motor Clutch [B]

Starter Motor Clutch Assembly
• Install the starter motor clutch to the housing so that the
  flange [A] fit to the housing groove [B].
• Hold the alternator rotor with the flywheel holder.
  Special Tool - Flywheel Holder: 57001-1313
• Apply  a non-permanent locking agent to the threads of
  the starter motor clutch bolts and tighten them.
  Torque - Starter Motor Clutch Bolts: 12 N·m (1.2 kgf·m, 106
              in·lb)
