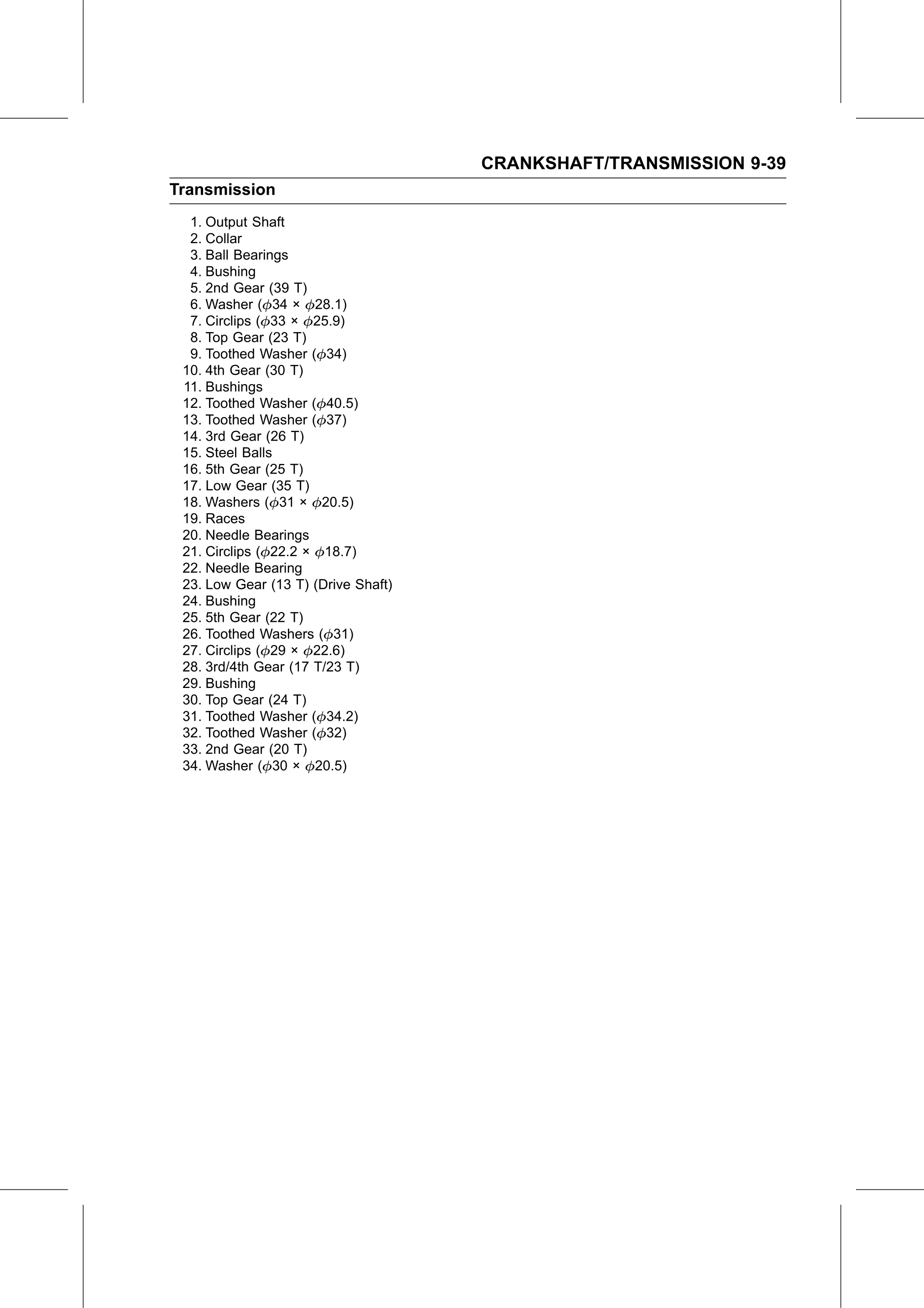

CRANKSHAFT/TRANSMISSION 9-39
Transmission
  1. Output Shaft
  2. Collar
  3. Ball Bearings
  4. Bushing
  5. 2nd Gear (39 T)
  6. Washer ( 34 × 28.1)
  7. Circlips ( 33 × 25.9)
  8. Top Gear (23 T)
  9. Toothed Washer ( 34)
 10. 4th Gear (30 T)
 11. Bushings
 12. Toothed Washer ( 40.5)
 13. Toothed Washer ( 37)
 14. 3rd Gear (26 T)
 15. Steel Balls
 16. 5th Gear (25 T)
 17. Low Gear (35 T)
 18. Washers ( 31 × 20.5)
 19. Races
 20. Needle Bearings
 21. Circlips ( 22.2 × 18.7)
 22. Needle Bearing
 23. Low Gear (13 T) (Drive Shaft)
 24. Bushing
 25. 5th Gear (22 T)
 26. Toothed Washers ( 31)
 27. Circlips ( 29 × 22.6)
 28. 3rd/4th Gear (17 T/23 T)
 29. Bushing
 30. Top Gear (24 T)
 31. Toothed Washer ( 34.2)
 32. Toothed Washer ( 32)
 33. 2nd Gear (20 T)
 34. Washer ( 30 × 20.5)
