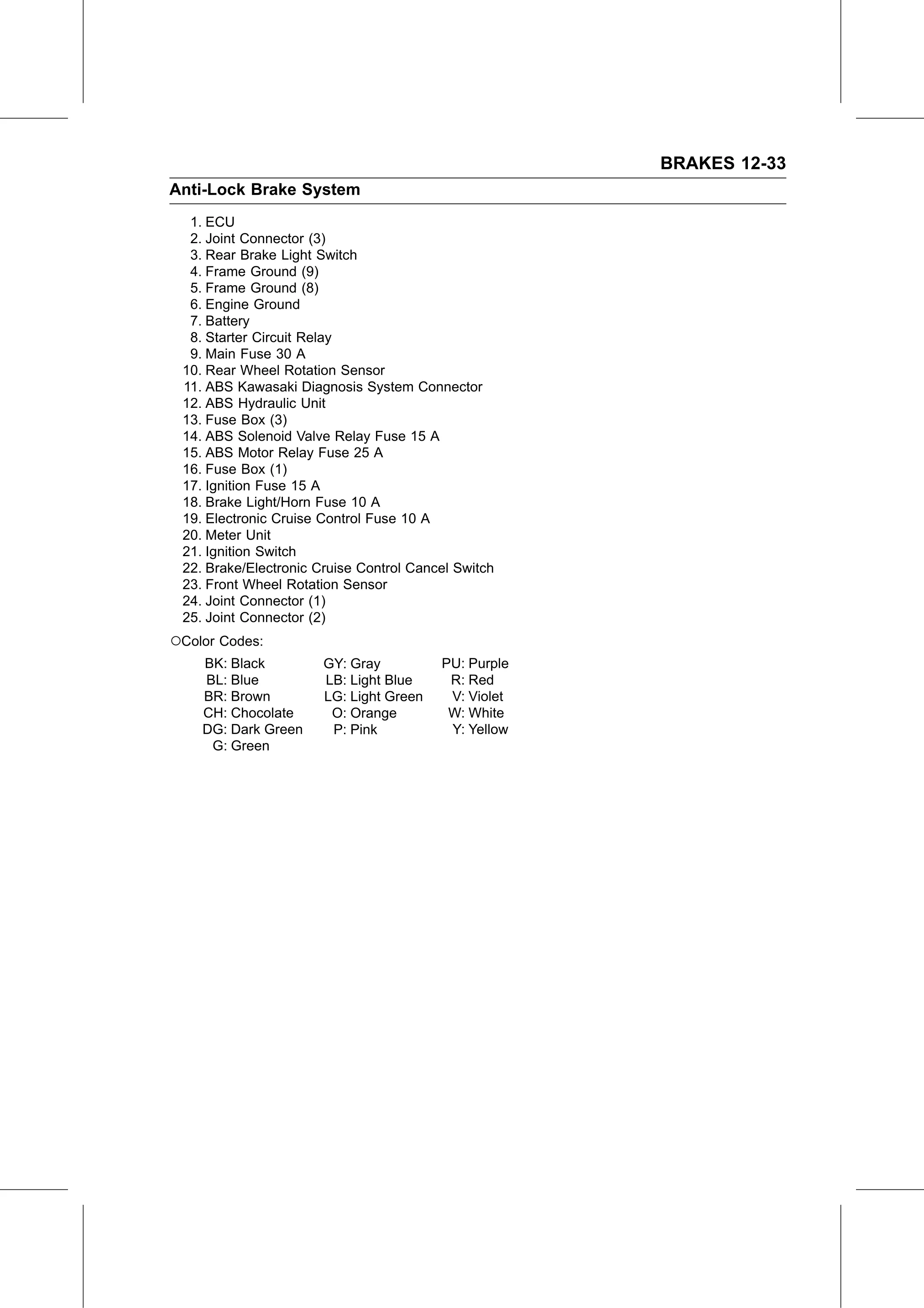

BRAKES 12-33
Anti-Lock Brake System
  1. ECU
  2. Joint Connector (3)
  3. Rear Brake Light Switch
  4. Frame Ground (9)
  5. Frame Ground (8)
  6. Engine Ground
  7. Battery
  8. Starter Circuit Relay
  9. Main Fuse 30 A
 10. Rear Wheel Rotation Sensor
 11. ABS Kawasaki Diagnosis System Connector
 12. ABS Hydraulic Unit
 13. Fuse Box (3)
 14. ABS Solenoid Valve Relay Fuse 15 A
 15. ABS Motor Relay Fuse 25 A
 16. Fuse Box (1)
 17. Ignition Fuse 15 A
 18. Brake Light/Horn Fuse 10 A
 19. Electronic Cruise Control Fuse 10 A
 20. Meter Unit
 21. Ignition Switch
 22. Brake/Electronic Cruise Control Cancel Switch
 23. Front Wheel Rotation Sensor
 24. Joint Connector (1)
 25. Joint Connector (2)
○Color Codes:
    BK: Black          GY: Gray          PU: Purple
    BL: Blue           LB: Light Blue     R: Red
    BR: Brown          LG: Light Green    V: Violet
    CH: Chocolate       O: Orange         W: White
    DG: Dark Green      P: Pink           Y: Yellow
     G: Green
