12-34 BRAKES
Anti-Lock Brake System

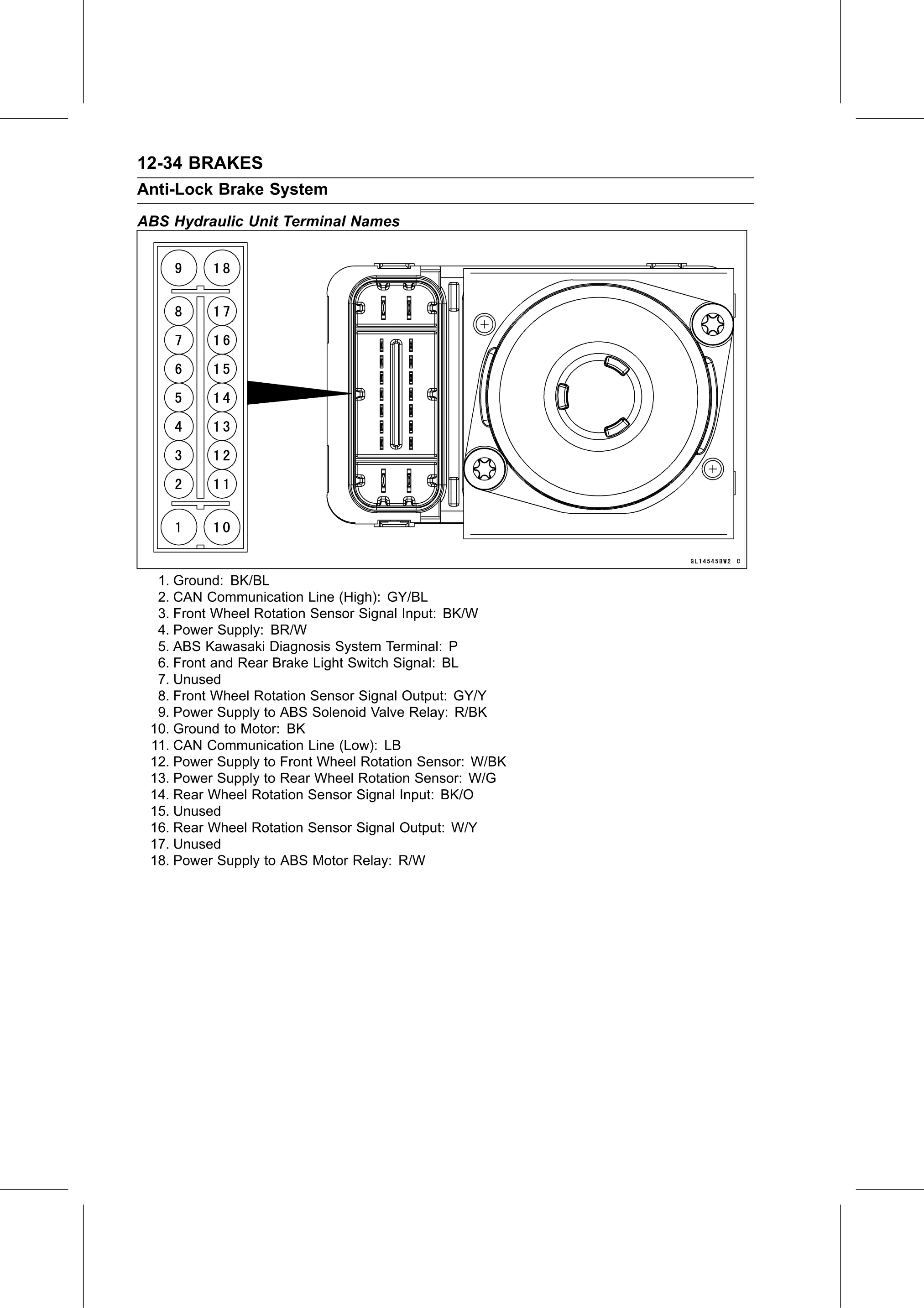

ABS Hydraulic Unit Terminal Names

  1. Ground: BK/BL
  2. CAN Communication Line (High): GY/BL
  3. Front Wheel Rotation Sensor Signal Input: BK/W
  4. Power Supply: BR/W
  5. ABS Kawasaki Diagnosis System Terminal: P
  6. Front and Rear Brake Light Switch Signal: BL
  7. Unused
  8. Front Wheel Rotation Sensor Signal Output: GY/Y
  9. Power Supply to ABS Solenoid Valve Relay: R/BK
 10. Ground to Motor: BK
 11. CAN Communication Line (Low): LB
 12. Power Supply to Front Wheel Rotation Sensor: W/BK
 13. Power Supply to Rear Wheel Rotation Sensor: W/G
 14. Rear Wheel Rotation Sensor Signal Input: BK/O
 15. Unused
 16. Rear Wheel Rotation Sensor Signal Output: W/Y
 17. Unused
 18. Power Supply to ABS Motor Relay: R/W
