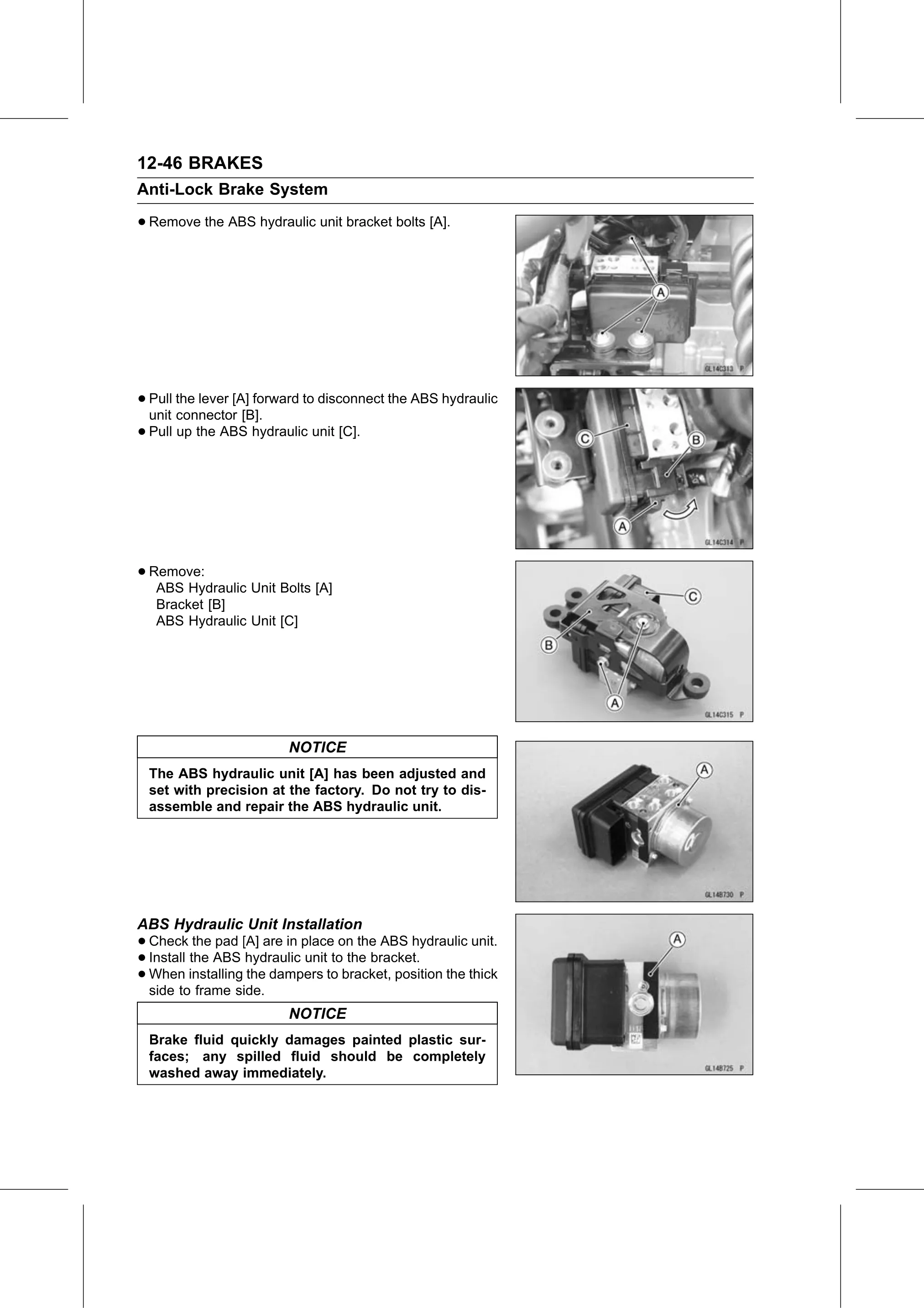

12-46 BRAKES
Anti-Lock Brake System

• Remove the ABS hydraulic unit bracket bolts [A].

• Pull the lever [A] forward to disconnect the ABS hydraulic
  unit connector [B].
• Pull up the ABS hydraulic unit [C].

• Remove:
   ABS Hydraulic Unit Bolts [A]
   Bracket [B]
   ABS Hydraulic Unit [C]

                          NOTICE
  The ABS hydraulic unit [A] has been adjusted and
  set with precision at the factory. Do not try to dis-
  assemble and repair the ABS hydraulic unit.

ABS Hydraulic Unit Installation
• Check    the pad [A] are in place on the ABS hydraulic unit.
• When installing
  Install the ABS hydraulic unit to the bracket.
• side to frame side.
                    the dampers to bracket, position the thick

                          NOTICE
  Brake fluid quickly damages painted plastic sur-
  faces; any spilled fluid should be completely
  washed away immediately.
