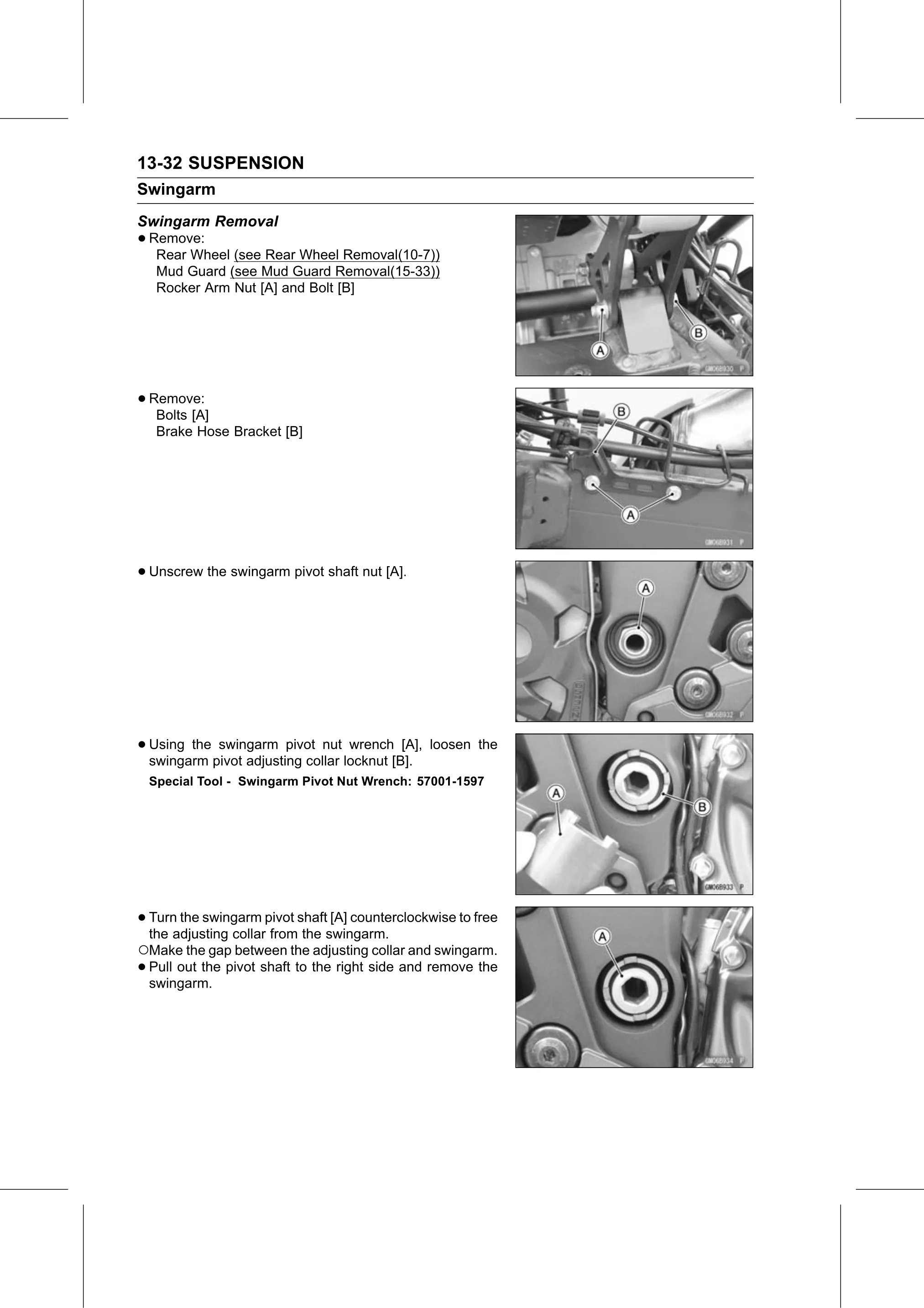

13-32 SUSPENSION
Swingarm
Swingarm Removal
• Remove:
   Rear Wheel (see Rear Wheel Removal(10-7))
   Mud Guard (see Mud Guard Removal(15-33))
   Rocker Arm Nut [A] and Bolt [B]

• Remove:
   Bolts [A]
   Brake Hose Bracket [B]

• Unscrew the swingarm pivot shaft nut [A].

• Using the swingarm pivot nut wrench [A], loosen the
  swingarm pivot adjusting collar locknut [B].
 Special Tool - Swingarm Pivot Nut Wrench: 57001-1597

• Turn the swingarm pivot shaft [A] counterclockwise to free
  the adjusting collar from the swingarm.
○Make the gap between the adjusting collar and swingarm.
• Pull out the pivot shaft to the right side and remove the
  swingarm.
