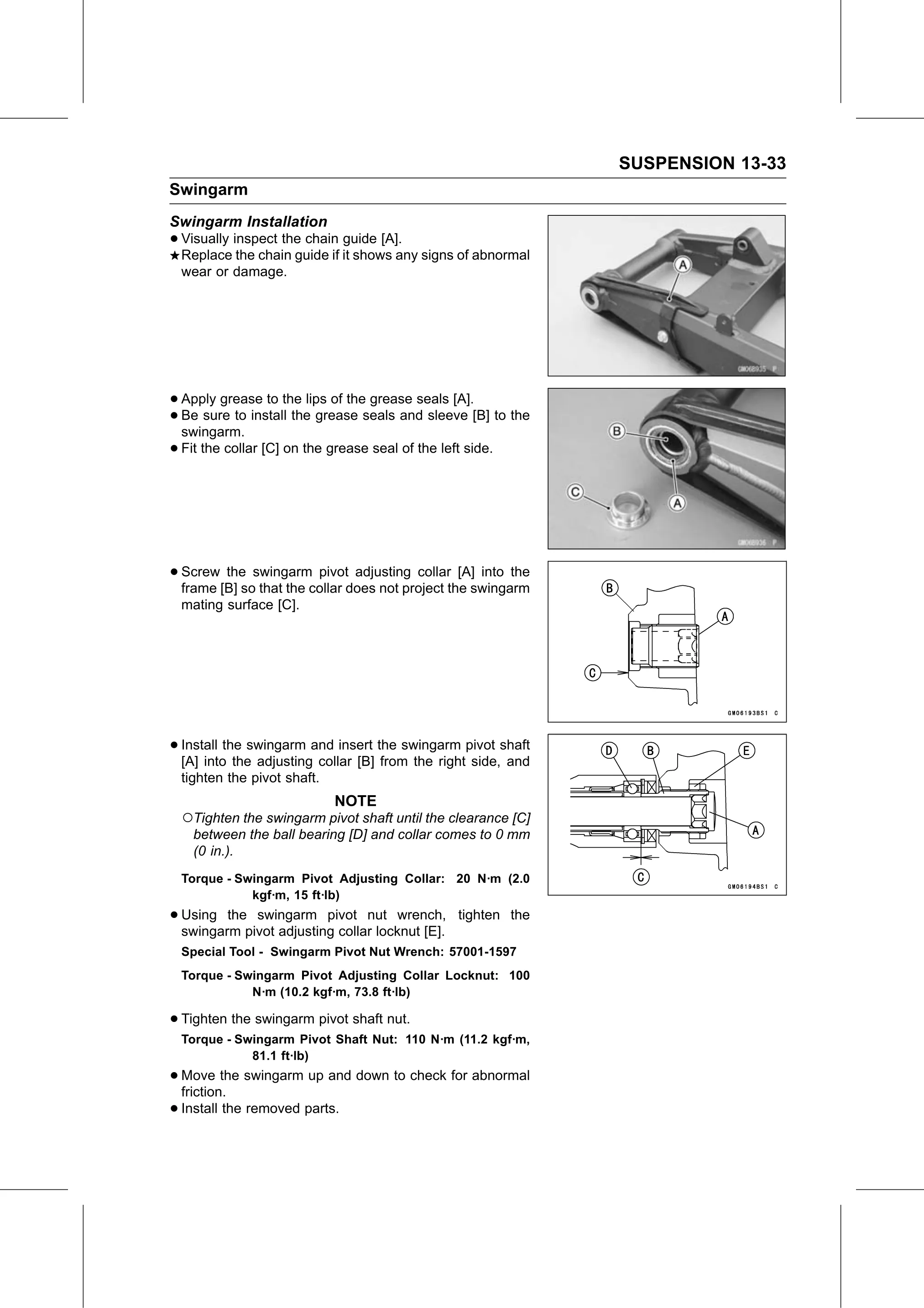

SUSPENSION 13-33
Swingarm
Swingarm Installation
• Visually inspect the chain guide [A].
  Replace the chain guide if it shows any signs of abnormal
 wear or damage.

• Apply   grease to the lips of the grease seals [A].
• swingarm.to install the grease seals and sleeve [B] to the
  Be   sure

• Fit the collar [C] on the grease seal of the left side.

• Screw  the swingarm pivot adjusting collar [A] into the
  frame [B] so that the collar does not project the swingarm
 mating surface [C].

• Install the swingarm and insert the swingarm pivot shaft
  [A] into the adjusting collar [B] from the right side, and
 tighten the pivot shaft.
                            NOTE
 ○Tighten the swingarm pivot shaft until the clearance [C]
   between the ball bearing [D] and collar comes to 0 mm
   (0 in.).
 Torque - Swingarm Pivot Adjusting Collar: 20 N·m (2.0
            kgf·m, 15 ft·lb)
• Using  the swingarm pivot nut wrench, tighten the
  swingarm pivot adjusting collar locknut [E].
 Special Tool - Swingarm Pivot Nut Wrench: 57001-1597
 Torque - Swingarm Pivot Adjusting Collar Locknut: 100
            N·m (10.2 kgf·m, 73.8 ft·lb)

• Tighten the swingarm pivot shaft nut.
 Torque - Swingarm Pivot Shaft Nut: 110 N·m (11.2 kgf·m,
            81.1 ft·lb)
• Move    the swingarm up and down to check for abnormal
  friction.
• Install the removed parts.
