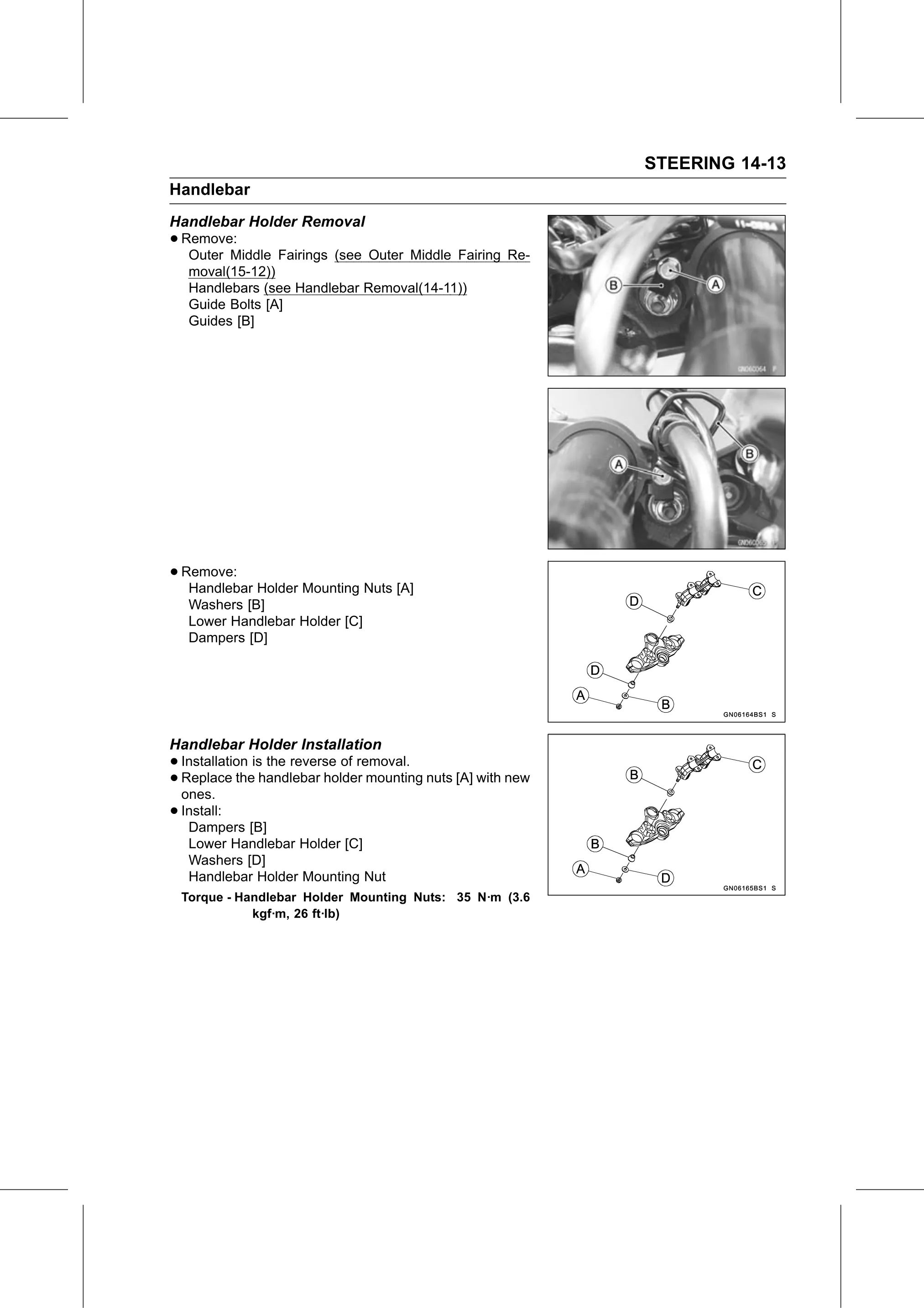

STEERING 14-13
Handlebar
Handlebar Holder Removal
• Remove:
   Outer Middle Fairings (see Outer Middle Fairing Re-
   moval(15-12))
   Handlebars (see Handlebar Removal(14-11))
   Guide Bolts [A]
   Guides [B]

• Remove:
   Handlebar Holder Mounting Nuts [A]
   Washers [B]
   Lower Handlebar Holder [C]
   Dampers [D]

Handlebar Holder Installation
• Installation is the reverse of removal.
• ones.
  Replace   the handlebar holder mounting nuts [A] with new

• Install:
   Dampers [B]
   Lower Handlebar Holder [C]
   Washers [D]
   Handlebar Holder Mounting Nut
 Torque - Handlebar Holder Mounting Nuts: 35 N·m (3.6
            kgf·m, 26 ft·lb)
