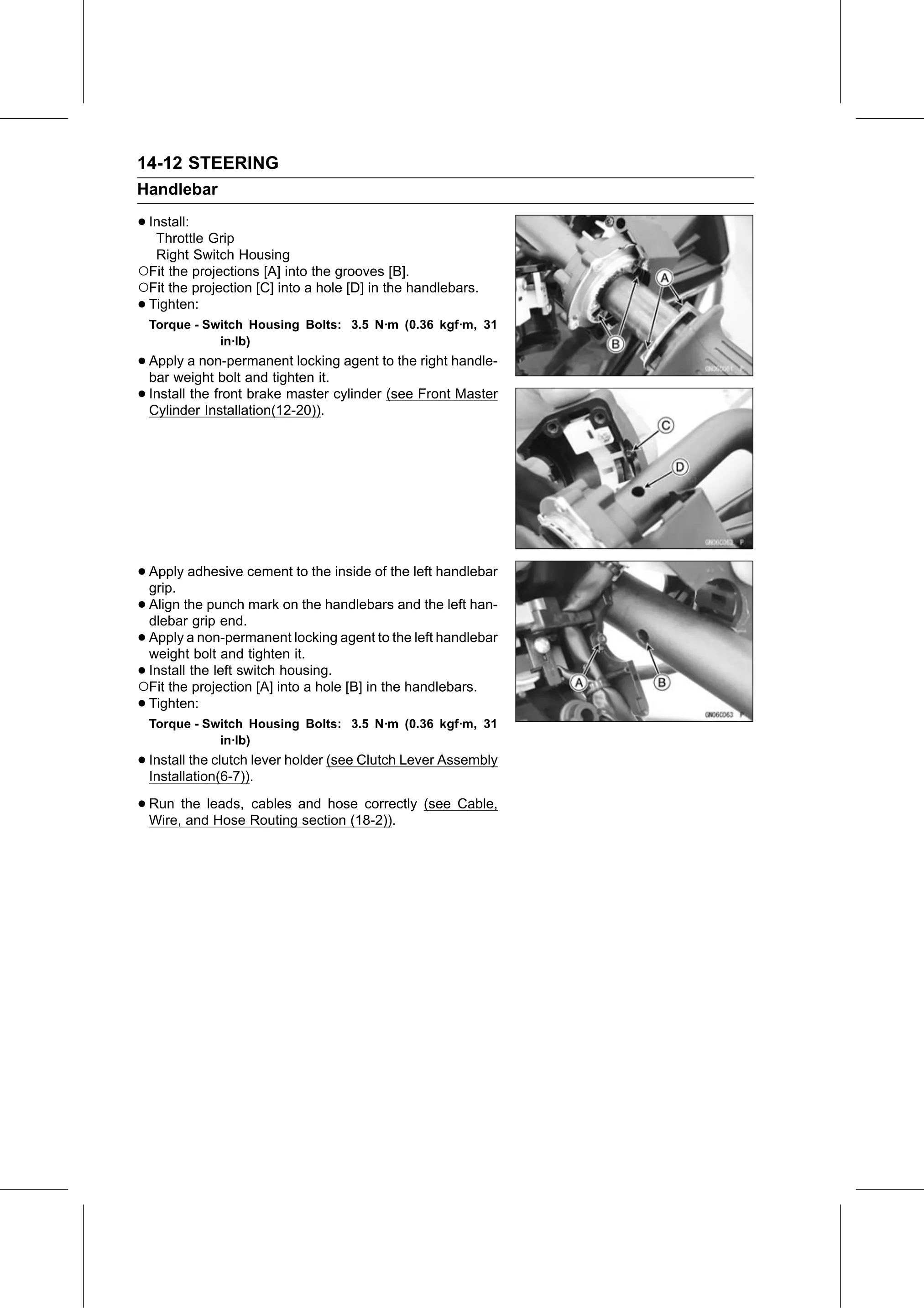

14-12 STEERING
Handlebar

• Install:
   Throttle Grip
   Right Switch Housing
○Fit the projections [A] into the grooves [B].
○Fit the projection [C] into a hole [D] in the handlebars.
• Tighten:
  Torque - Switch Housing Bolts: 3.5 N·m (0.36 kgf·m, 31
             in·lb)
• Apply   a non-permanent locking agent to the right handle-
  bar weight bolt and tighten it.
• Install the front brake master cylinder (see Front Master
  Cylinder Installation(12-20)).

• Apply
   grip.
          adhesive cement to the inside of the left handlebar

• Align  the punch mark on the handlebars and the left han-
   dlebar grip end.
• Apply   a non-permanent locking agent to the left handlebar
   weight bolt and tighten it.
•○Install  the left switch housing.
   Fit the projection [A] into a hole [B] in the handlebars.
 • Tighten:
  Torque - Switch Housing Bolts: 3.5 N·m (0.36 kgf·m, 31
             in·lb)
• Install the clutch lever holder (see Clutch Lever Assembly
  Installation(6-7)).

• Run  the leads, cables and hose correctly (see Cable,
  Wire, and Hose Routing section (18-2)).
