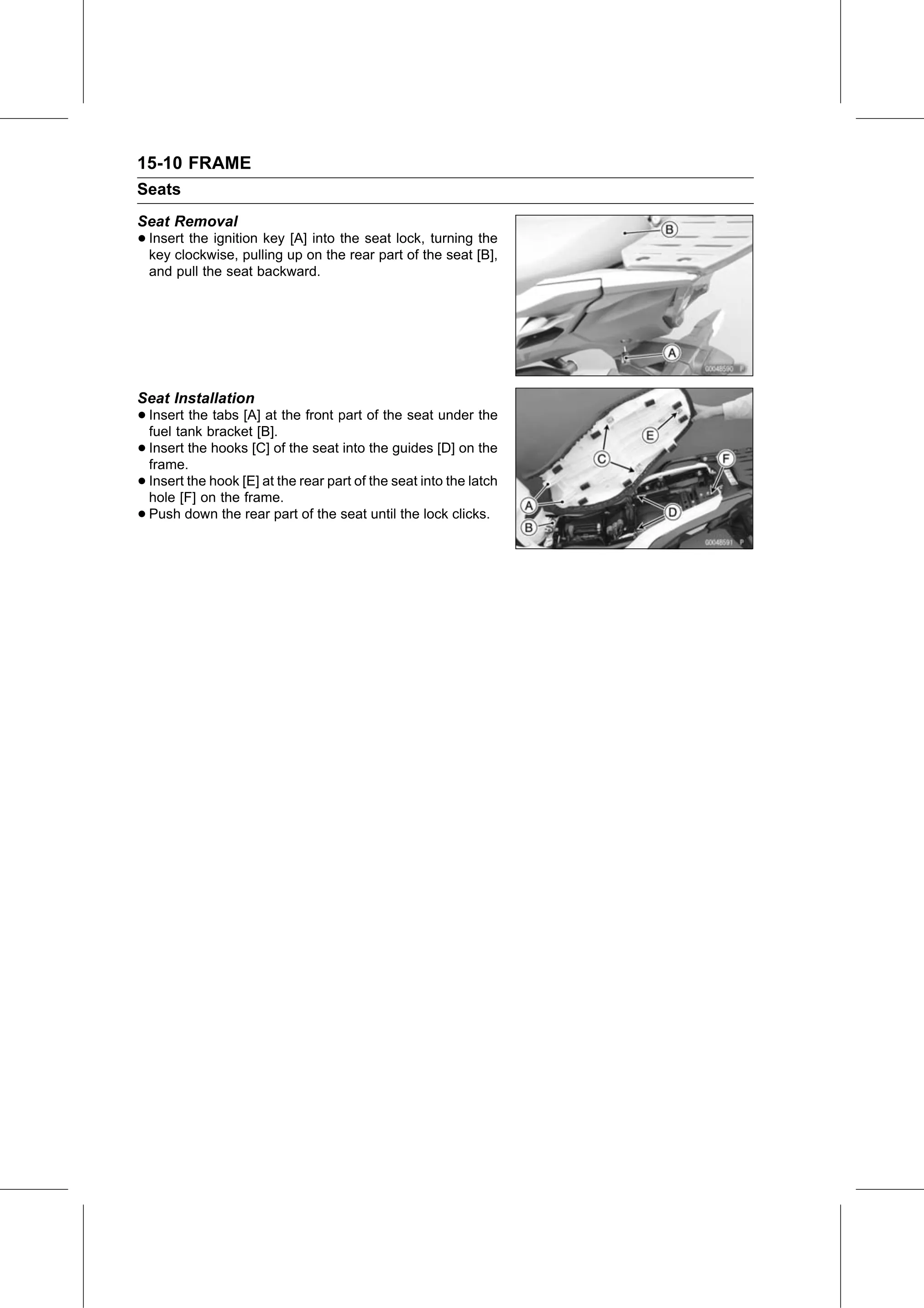

15-10 FRAME
Seats
Seat Removal
• Insert the ignition key [A] into the seat lock, turning the
  key clockwise, pulling up on the rear part of the seat [B],
  and pull the seat backward.

Seat Installation
• Insert the tabs [A] at the front part of the seat under the
  fuel tank bracket [B].
• Insert
  frame.
         the hooks [C] of the seat into the guides [D] on the

• Insert the hook [E] at the rear part of the seat into the latch
  hole [F] on the frame.
• Push down the rear part of the seat until the lock clicks.
