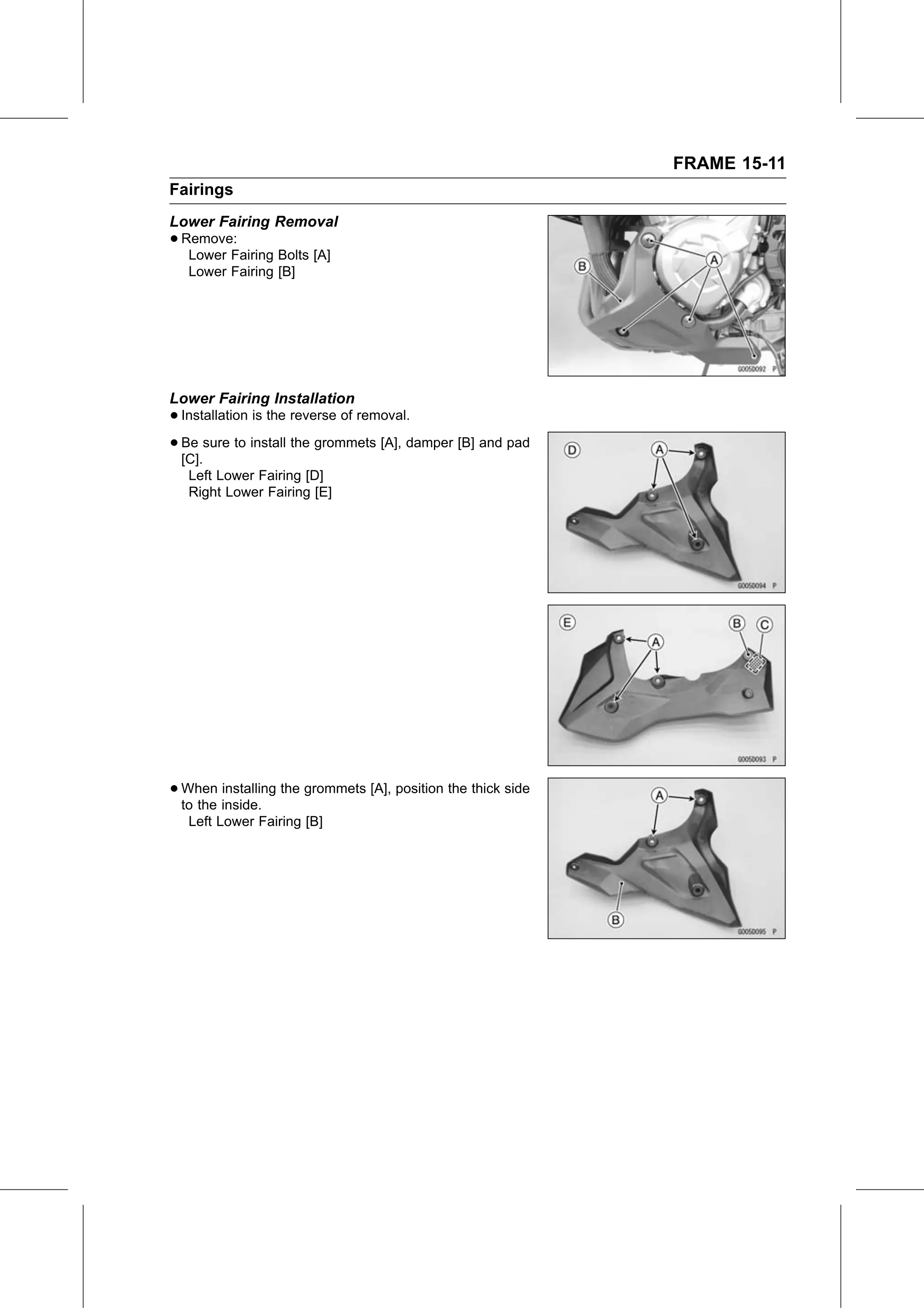

FRAME 15-11
Fairings
Lower Fairing Removal
• Remove:
   Lower Fairing Bolts [A]
   Lower Fairing [B]

Lower Fairing Installation
• Installation is the reverse of removal.
• Be
  [C].
      sure to install the grommets [A], damper [B] and pad

   Left Lower Fairing [D]
   Right Lower Fairing [E]

• When   installing the grommets [A], position the thick side
  to the inside.
   Left Lower Fairing [B]
