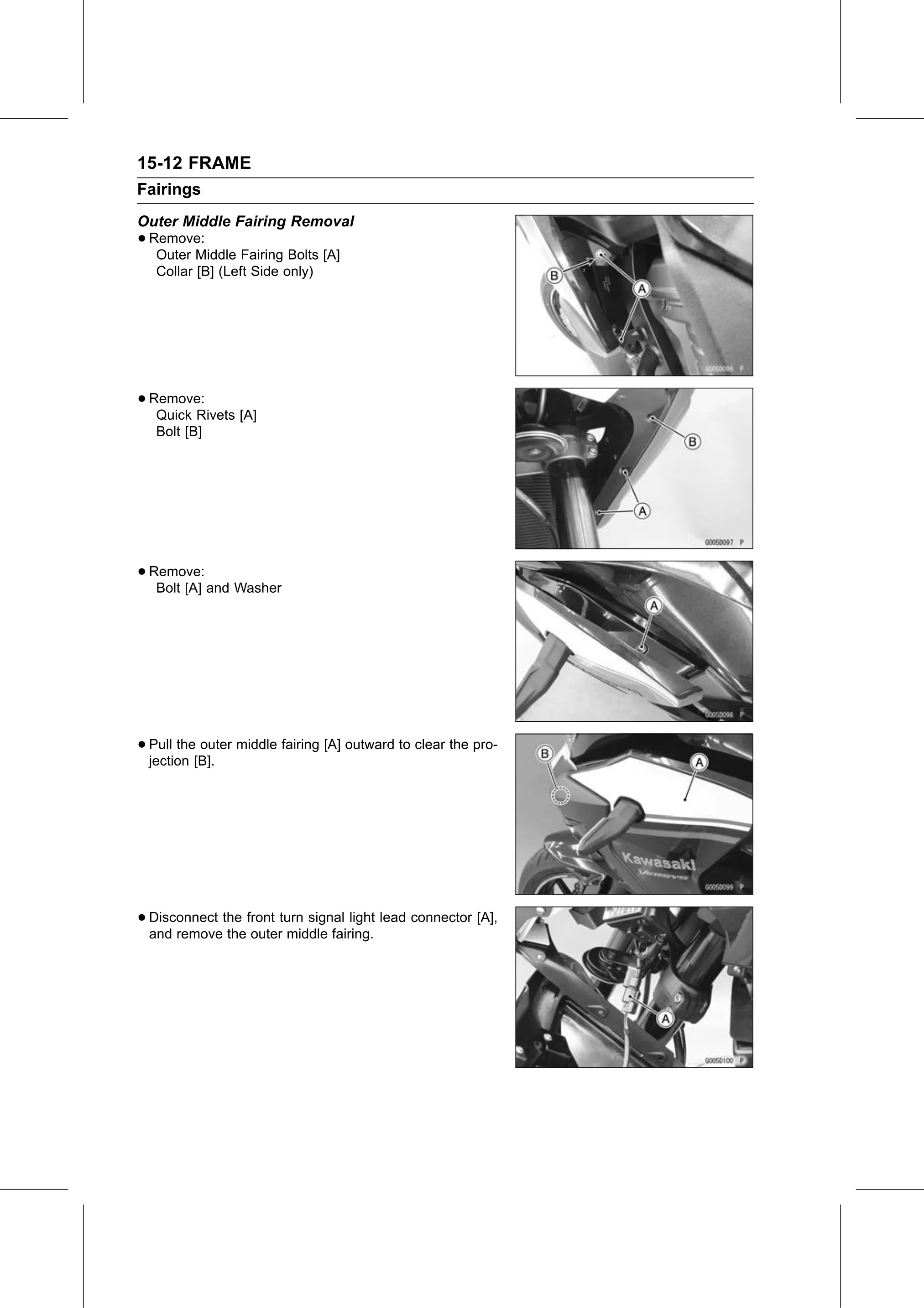

Service Manual (KLZ1000C) — page 456 of 762

Text on this page

15-12 FRAME
Fairings
Outer Middle Fairing Removal
• Remove:
   Outer Middle Fairing Bolts [A]
   Collar [B] (Left Side only)

• Remove:
   Quick Rivets [A]
   Bolt [B]

• Remove:
   Bolt [A] and Washer

• Pull the outer middle fairing [A] outward to clear the pro-
  jection [B].

• Disconnect the front turn signal light lead connector [A],
  and remove the outer middle fairing.
