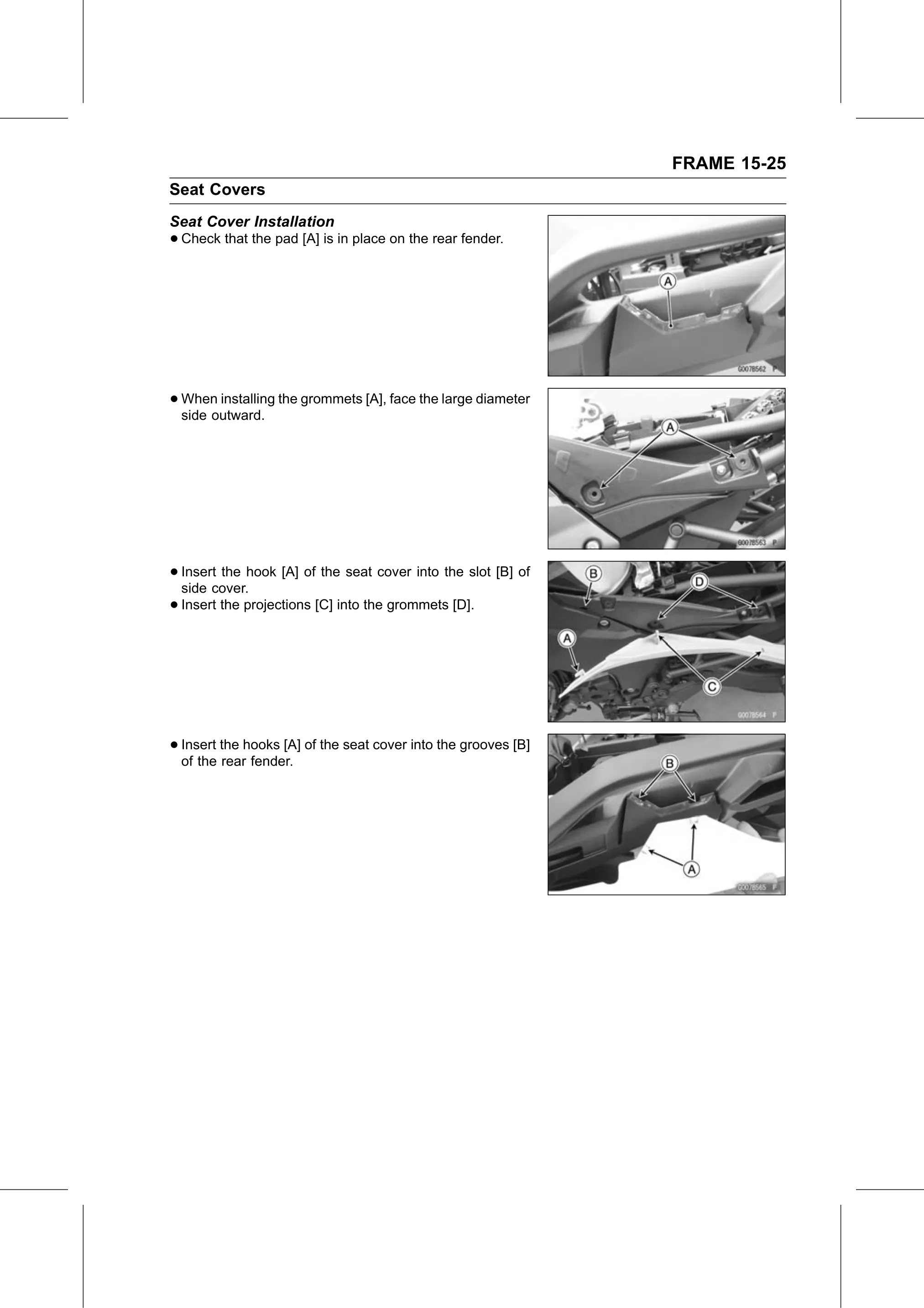

FRAME 15-25
Seat Covers
Seat Cover Installation
• Check that the pad [A] is in place on the rear fender.

• When  installing the grommets [A], face the large diameter
  side outward.

• Insert the hook [A] of the seat cover into the slot [B] of
  side cover.
• Insert the projections [C] into the grommets [D].

• Insert the hooks [A] of the seat cover into the grooves [B]
  of the rear fender.
