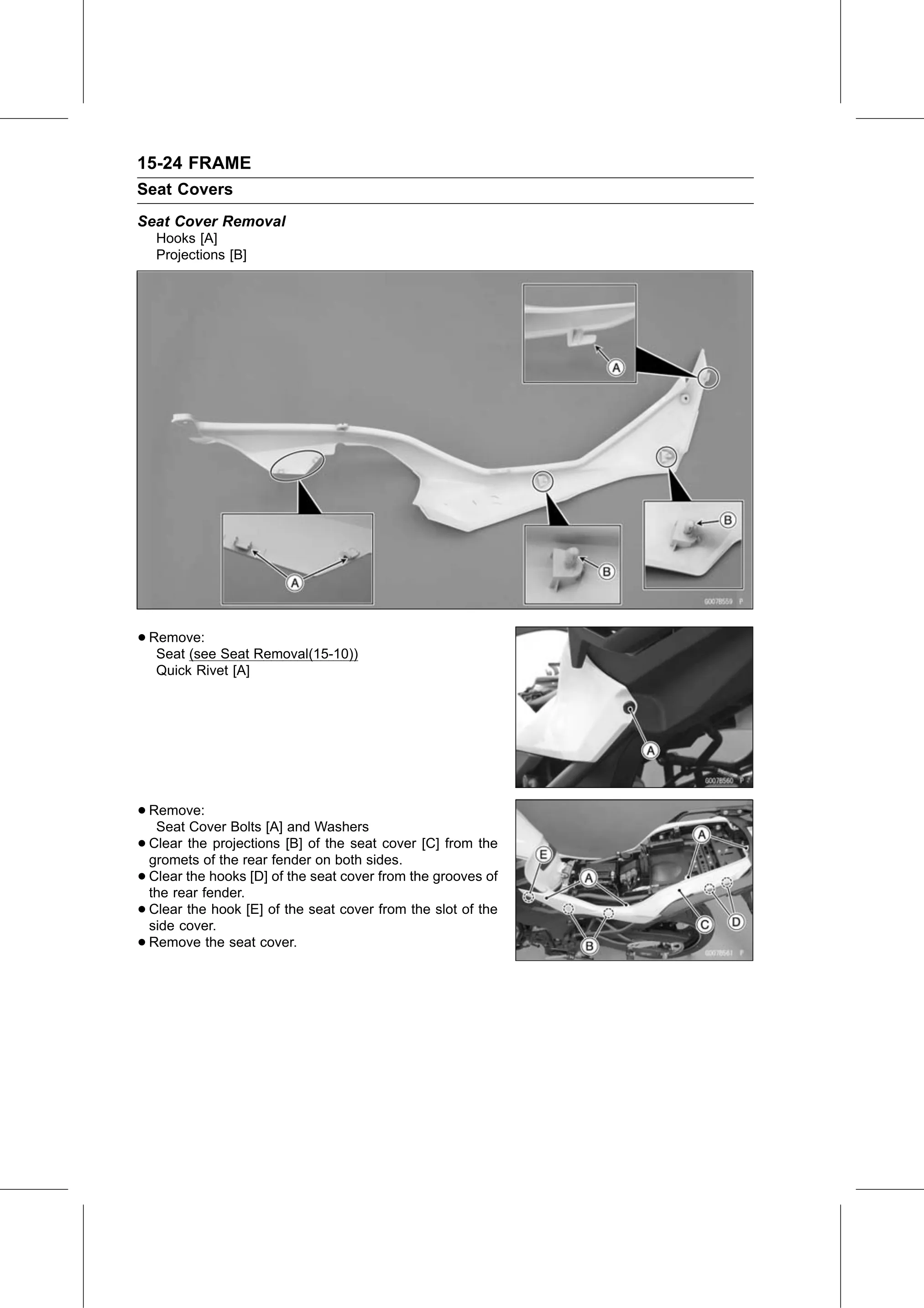

15-24 FRAME
Seat Covers
Seat Cover Removal
   Hooks [A]
   Projections [B]

• Remove:
   Seat (see Seat Removal(15-10))
   Quick Rivet [A]

• Remove:
   Seat Cover Bolts [A] and Washers
• grometstheofprojections
  Clear                   [B] of the seat cover [C] from the
               the rear fender on both sides.
• Clear the hooks [D] of the seat cover from the grooves of
  the rear fender.
• Clear the hook [E] of the seat cover from the slot of the
  side cover.
• Remove the seat cover.
