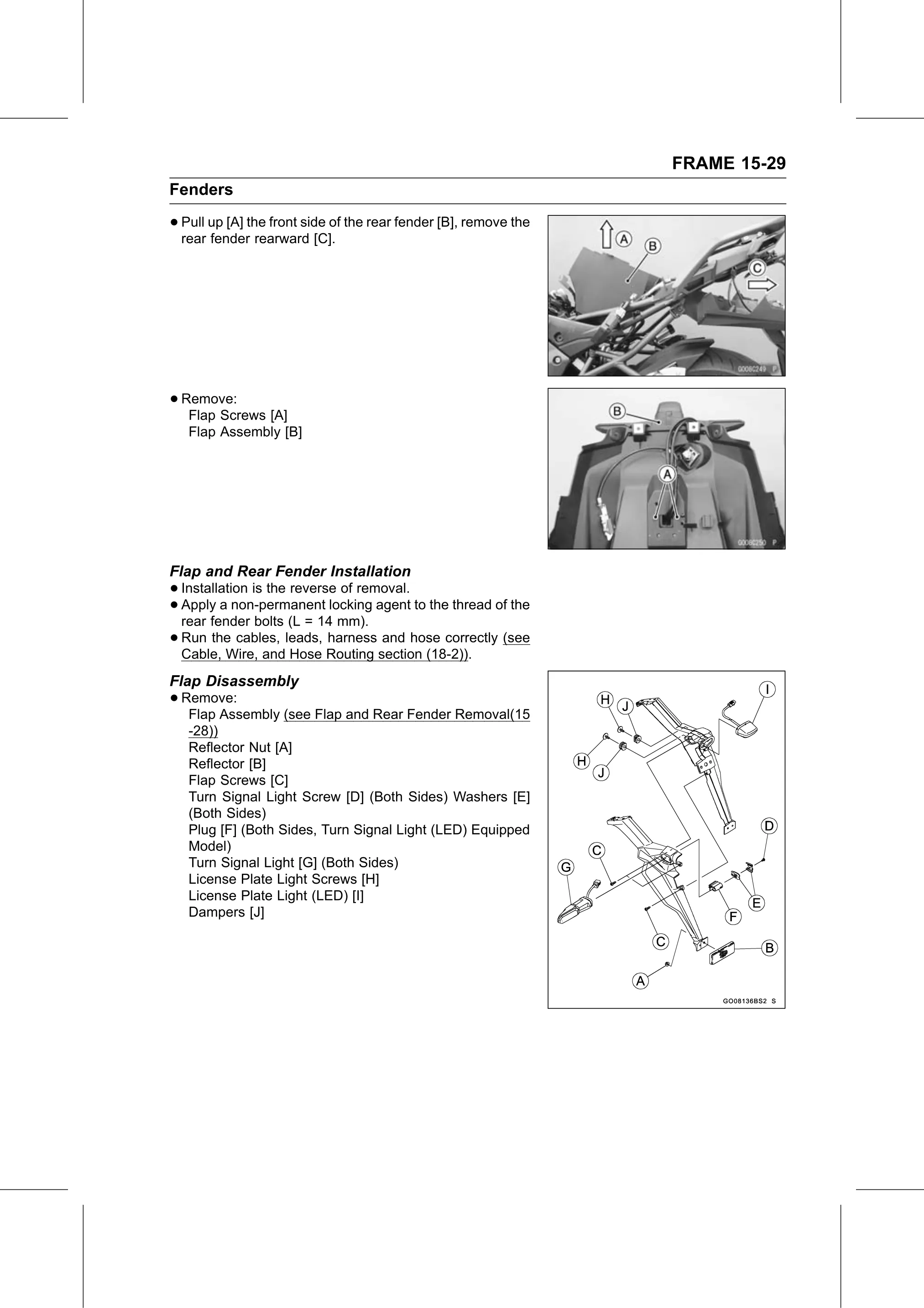

FRAME 15-29
Fenders

• Pull up [A] the front side of the rear fender [B], remove the
  rear fender rearward [C].

• Remove:
   Flap Screws [A]
   Flap Assembly [B]

Flap and Rear Fender Installation
• Installation is the reverse of removal.
• Apply  a non-permanent locking agent to the thread of the
  rear fender bolts (L = 14 mm).
• Run  the cables, leads, harness and hose correctly (see
  Cable, Wire, and Hose Routing section (18-2)).
Flap Disassembly
• Remove:
   Flap Assembly (see Flap and Rear Fender Removal(15
   -28))
   Reflector Nut [A]
   Reflector [B]
   Flap Screws [C]
   Turn Signal Light Screw [D] (Both Sides) Washers [E]
   (Both Sides)
   Plug [F] (Both Sides, Turn Signal Light (LED) Equipped
   Model)
   Turn Signal Light [G] (Both Sides)
   License Plate Light Screws [H]
   License Plate Light (LED) [I]
   Dampers [J]
