15-30 FRAME
Fenders

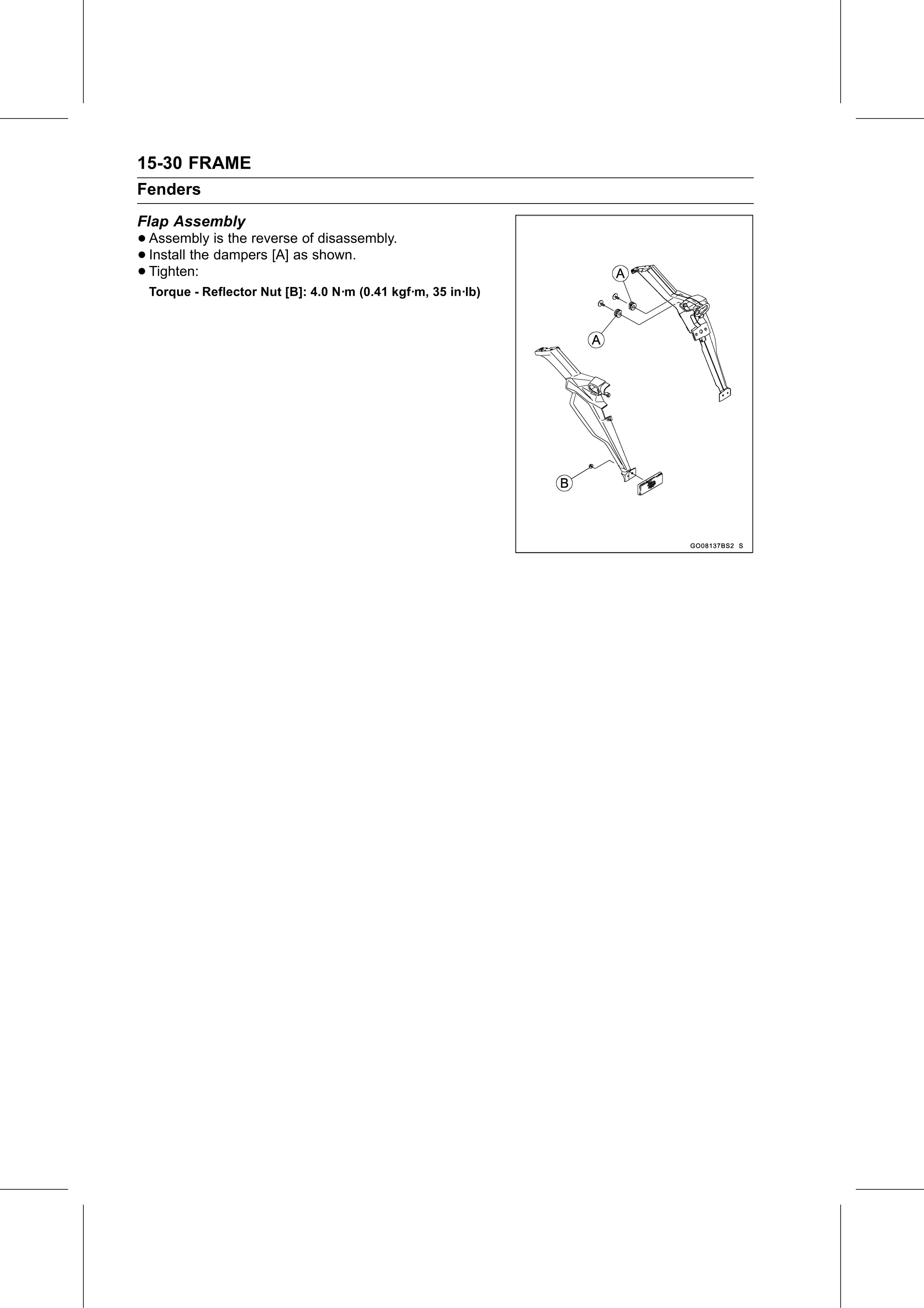

Flap Assembly
• Assembly    is the reverse of disassembly.
• Install the dampers [A] as shown.
• Tighten:
  Torque - Reflector Nut [B]: 4.0 N·m (0.41 kgf·m, 35 in·lb)
