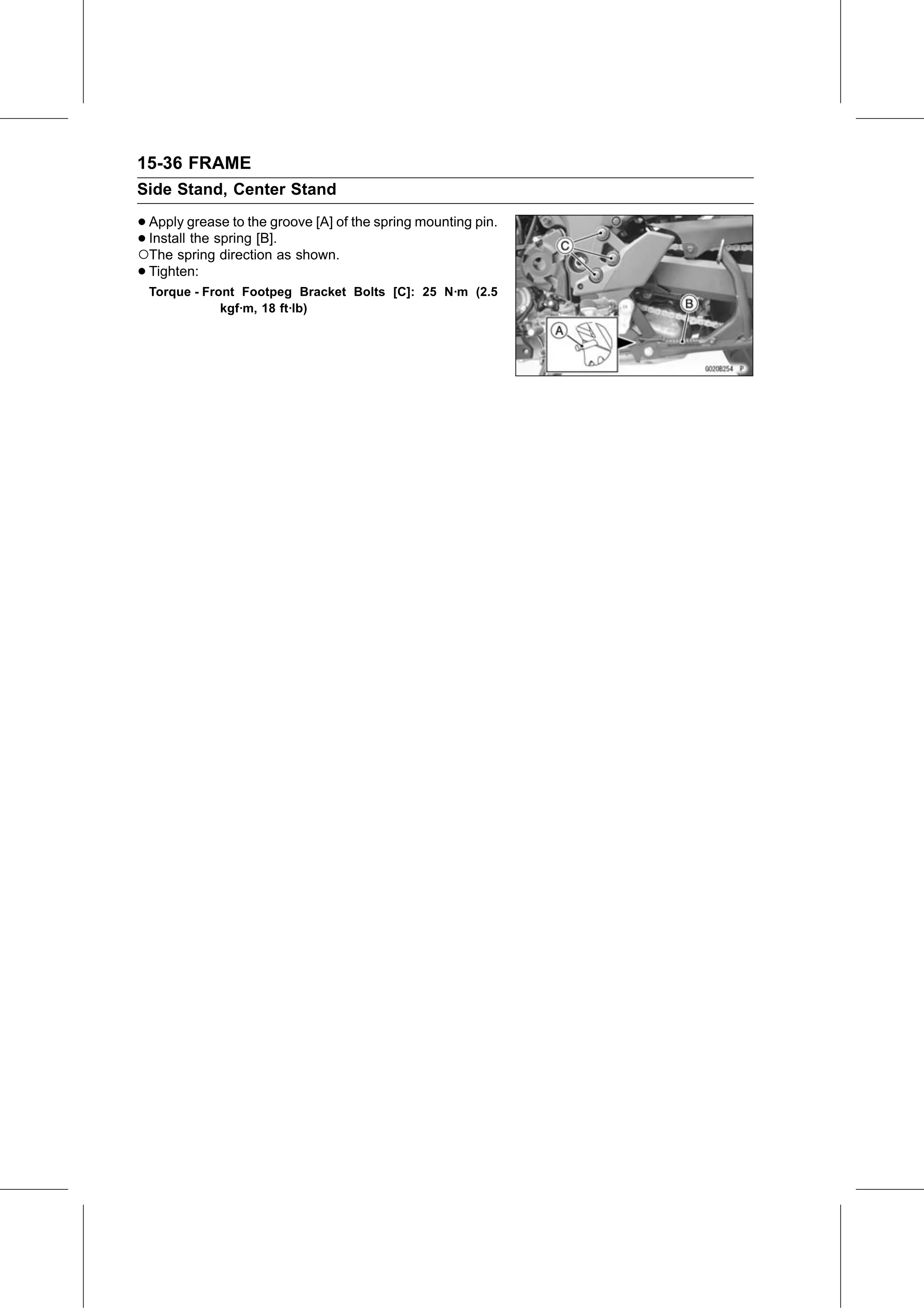

15-36 FRAME
Side Stand, Center Stand

• Apply    grease to the groove [A] of the spring mounting pin.
•○The spring
   Install the spring [B].
                direction as shown.
 • Tighten:
  Torque - Front Footpeg Bracket Bolts [C]: 25 N·m (2.5
              kgf·m, 18 ft·lb)
